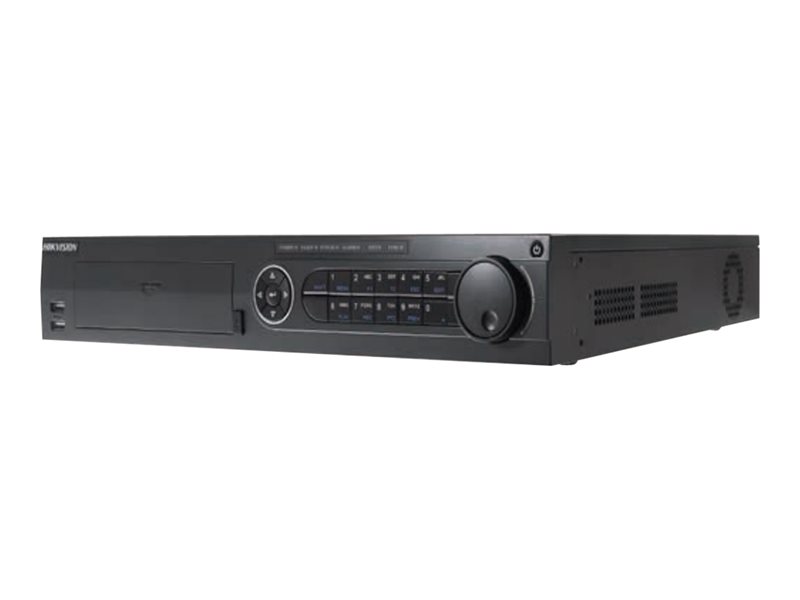

Standalone DVR - 8 channels - 1 x 4 TB - networked - 1.5U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Hikvision Turbo HD DVR DS-7308HQHI-SH - standalone DVR - 8 channels |
| Device Type | Standalone DVR - 8 channels - networked - rack-mountable - 1.5U |
| Compression Format | H.264, G.711 |
| TV System | NTSC/PAL |
| Image Resolution | 1920x1080, 1024x768, 1280x1024, 1280x720, 704x576 (PAL), 704x480 (NTSC) |
| Hard Drive | 1 x 4 TB |
| Hard Drive(s) Supported | Quantity: 4 - total capacity: 16 TB |
| Voltage | 120 / 230 V |
| Dimensions (WxDxH) | 17.5 in x 15.4 in x 2.8 in |
| Weight | 11.02 lbs |
| General | |
| Device Type | Standalone DVR - rack-mountable - 1.5U |
| Video Channels | 8 |
| Audio Channels | 4 |
| TV System | NTSC/PAL |
| Image Resolution | 1920x1080, 1024x768, 1280x1024, 1280x720, 704x576 (PAL), 704x480 (NTSC) |
| Compression Format | H.264, G.711 |
| Package Content | DVR |
| Networking | |
| DDNS Support | Yes |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SMTP, SNMP, UPnP, HTTPS |
| Features | Dual-stream (2x2) |
| Power | |
| Voltage | 120 / 230 V |
| Frequency | 50/60 Hz |
| Power Consumption | 40 watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% |
| Hard Drive | |
| Quantity Installed | 1 |
| Quantity Supported | 4 |
| Capacity | 4 TB |
| Interface | Serial ATA |
| Supported Max Total Capacity | 16 TB |
| Connections | |
| Video Input Ports | BNC x 8 |
| Video Input Signal Level | 1.0Vp-p 75 Ohm |
| Video Output Ports | HDMI x 1, BNC x 1, VGA x 1 |
| Video Output Signal Level | 1.0Vp-p 75 Ohm |
| Audio Input Ports | RCA x 4 |
| Audio Output Ports | RCA x 2 |
| Alarm Ports | Alarm input x 16, alarm output x 4 |
| Network Port | 10/100/1000Base-T |
| Other Ports | Serial RS-232 x 1, serial RS-485 x 1, USB 2.0 x 3, eSATA x 1 |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 15.4 in |
| Height | 2.8 in |
| Weight | 11.02 lbs |
| Security DVR | |
| Networked | Yes |
