Video server - 4 channels
| Main Specifications | |
|---|---|

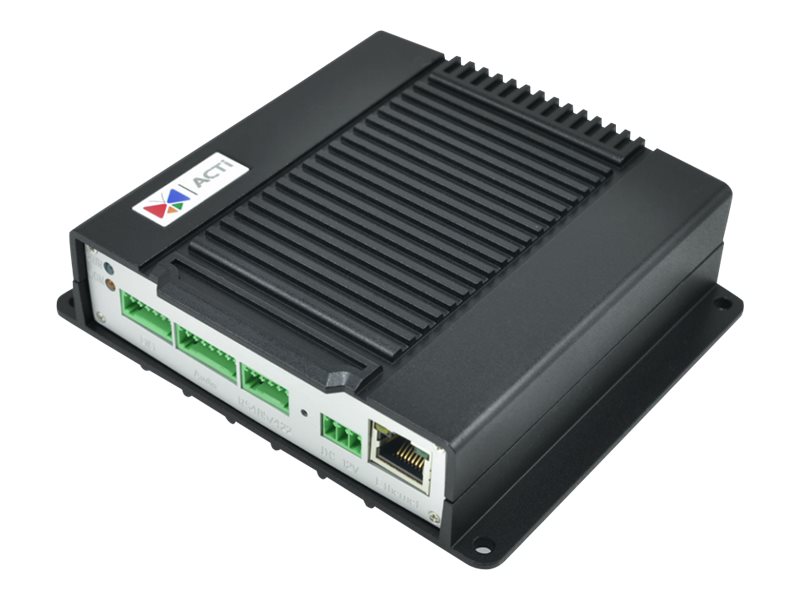

| Product Description | ACTi V24 - video server - 4 channels |
| Device Type | Video server - 4 channels |
| Compression Format | H.264, MJPEG, G.711 |
| TV System | NTSC/PAL |
| Image Resolution | 960x480 (NTSC), 960x576 (PAL), 720x480 (NTSC), 720x576 (PAL) |
| Dimensions (WxDxH) | 5.4 in x 4.8 in x 1.4 in |
| Weight | 16.29 oz |
| Manufacturer Warranty | 3 years |
| General | |
| Device Type | Video server |
| Video Channels | 4 |
| Audio Channels | 4 |
| TV System | NTSC/PAL |
| Image Resolution | 960x480 (NTSC), 960x576 (PAL), 720x480 (NTSC), 720x576 (PAL) |
| Compression Format | H.264, MJPEG, G.711 |
| Package Content | Video server |
| Compliant Standards | EN55022 Class B, EN55024, FCC Part 15 B |
| Warranty | 3 years |
| Networking | |
| DDNS Support | Yes |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | TCP/IP, UDP/IP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Features | ONVIF support, power over Ethernet (PoE) |
| Power | |
| Power Consumption | 3.84 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 10 - 85% |
| Connections | |
| Video Input Ports | BNC x 4 |
| Video Input Signal Level | 1.0Vp-p 75 Ohm |
| Audio Input Ports | Terminal block x 4 |
| Audio Output Ports | Terminal block |
| Camera Control Interface (PTZ) | RS-422/485 |
| Network Port | 10/100/1000Base-T |
| Dimensions & Weight | |
| Width | 5.4 in |
| Depth | 4.8 in |
| Height | 1.4 in |
| Weight | 16.29 oz |
| Video Server | |
| Frame Rate | 25 fps (PAL), 30 fps (NTSC) |
| Features | Motion detection, Pan/Tilt/Zoom support, microSDHC memory card slot, ONVIF compliant |
