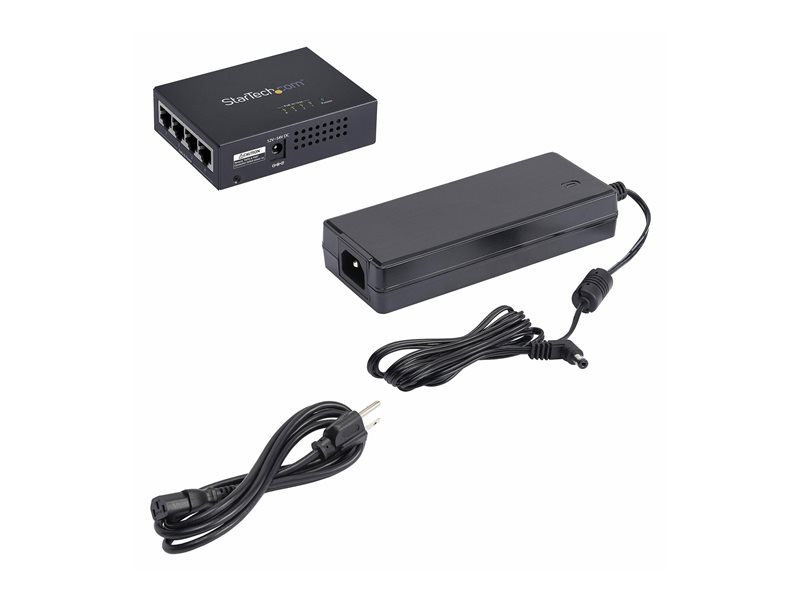

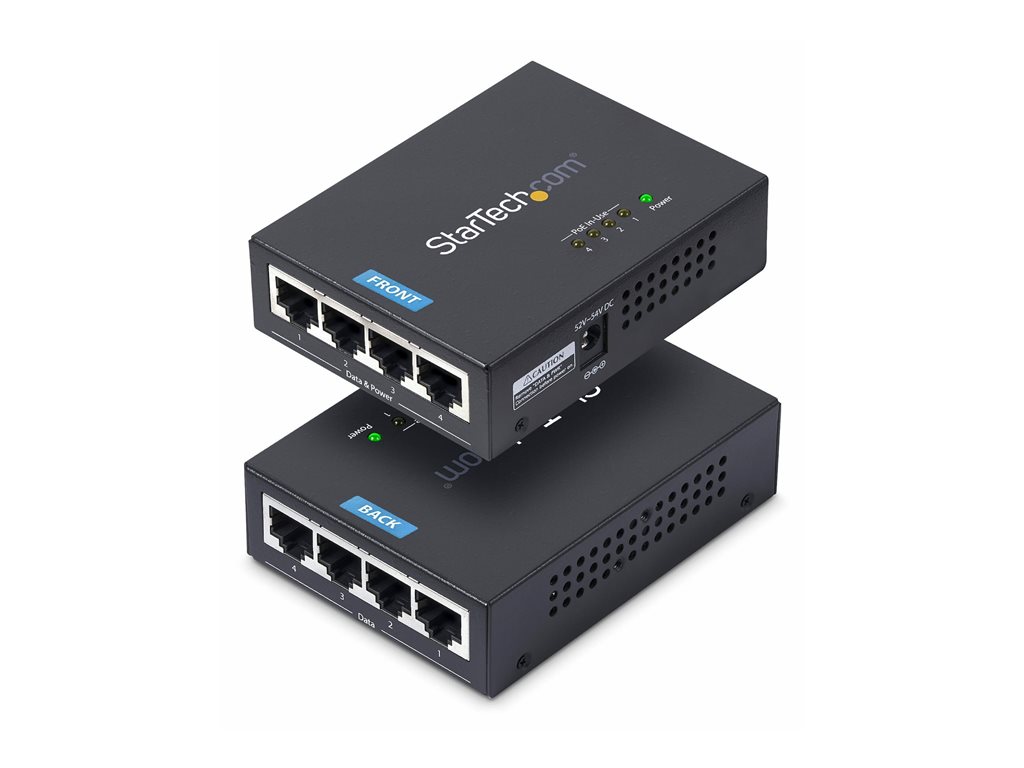

PoE injector - DC 52 - 54 V - 120 Watt - output connectors: 4 - black - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | StarTech 4-Port Gigabit PoE+ Midspan, Power over Ethernet Injector - PoE injector - 120 Watt - TAA Compliant |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ |
| Weight | 7.12 oz |
| Input Voltage | DC 52 - 54 V |
| Output Voltage | DC 54 V |
| Power Capacity | 120 Watt |
| Output connectors | 4 x RJ-45 - 54 V 30.8 W |
| Included Accessories | AC power adapter |
| Color | Black |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 2.8 in x 3.7 in x 1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Color | Black |
| Expansion / Connectivity | |

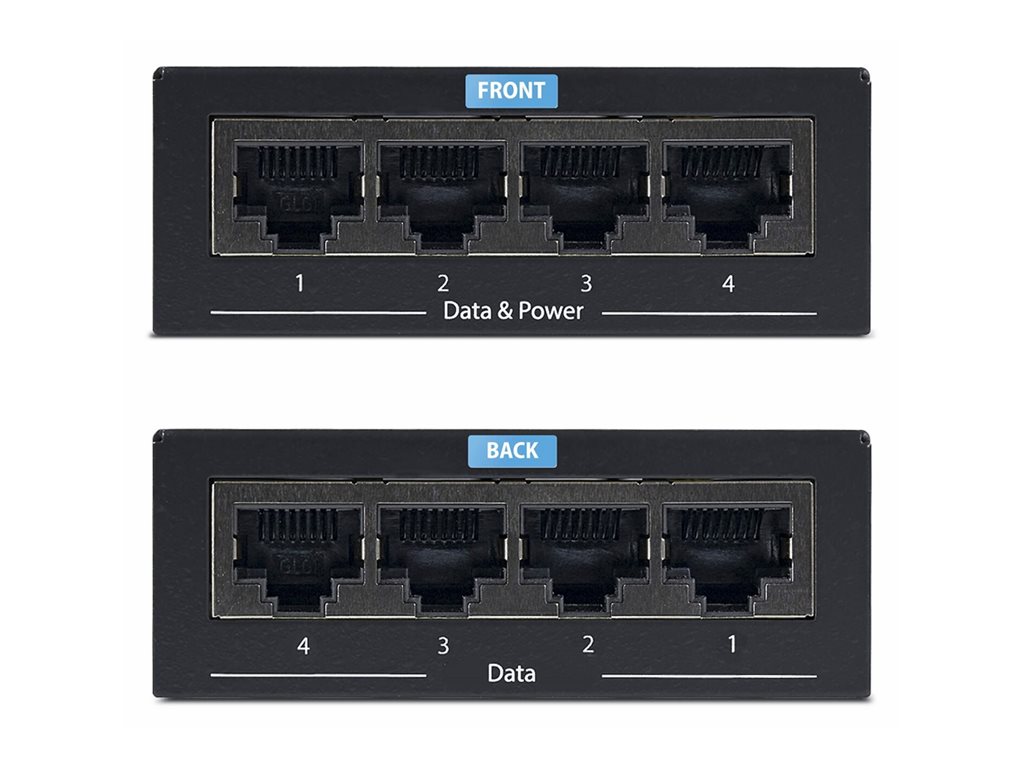

| Interfaces | 4 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | AC power adapter |
| Cables Included | Power cable - external |
| MTBF | 50,000 hours |
| Features | Wall mountable, metal housing, full duplex support, 100 m maximum cable length, LED indicators, auto-sensing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, Plug and Play, FCC, RoHS, WEEE, RCM |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Power Device | |
| Input Voltage | DC 52 - 54 V |
| Power Output Connectors Details | 4 x RJ-45 - 54 V 30.8 W |
| Output Voltage | DC 54 V |
| Power Capacity | 120 Watt |
| Dimensions & Weight | |
| Width | 2.8 in |
| Depth | 3.7 in |
| Height | 1 in |
| Weight | 7.12 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.8 in |
| Shipping Depth | 6.7 in |
| Shipping Height | 3.5 in |
| Shipping Weight | 3.09 lbs |
