Motherboard - ATX - LGA2011-v3 Socket - X99 Chipset - USB 3.0, USB 3.1 - Gigabit LAN - HD Audio (8-channel)
| Main Specifications | |
|---|---|

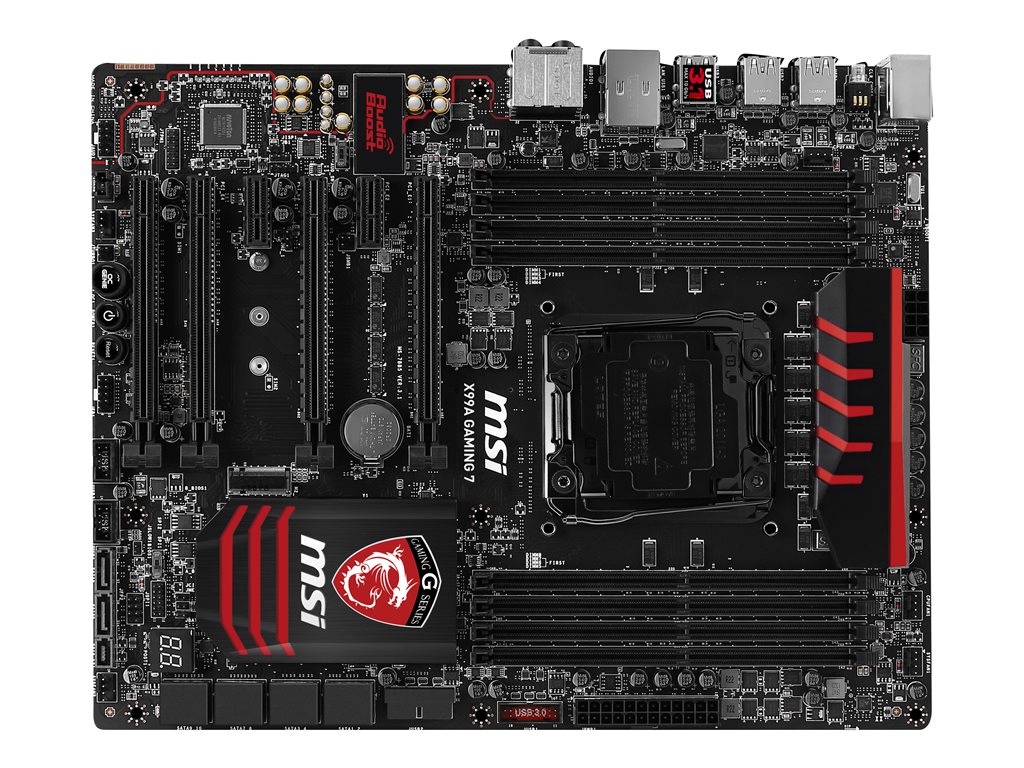

| Product Description | MSI X99A GAMING 7 - motherboard - ATX - LGA2011-v3 Socket - X99 |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel X99 Express |
| Processor Socket | 1 x LGA2011-v3 Socket |
| Compatible Processors | Core i7 Extreme Edition, Core i7, Xeon E5-2600 v3 series, Xeon E5-1600 v3 series |
| Max RAM Size | 128 GB |
| RAM Supported | 8 DIMM slots - DDR4, non-ECC, registered, unbuffered |
| Storage Ports | 6 x SATA-600 (RAID), 4 x SATA-600, 1 x SATA Express port, 1 x M.2 |
| USB / FireWire Ports | 2 x USB 3.1 + 6 x USB 3.0 + 2 x USB 2.0 + (4 x USB 3.0 + 4 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | Gigabit Ethernet |
| Microsoft Certification | Compatible with Windows 7 |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel X99 Express |
| Processor Socket | LGA2011-v3 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core i7 Extreme Edition, Core i7, Xeon E5-2600 v3 series, Xeon E5-1600 v3 series |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 4 x PCIe 3.0 x16 (dual x16 mode; triple: x16, x16, x8 mode) ¦ 2 x PCIe 2.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin SATA, 1 x M.2, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices |
| RAID Features | Intel Smart Response Technology |
| Interfaces | 2 x USB 3.1 ¦ 2 x USB 2.0 ¦ 6 x USB 3.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.0 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Included Accessories | I/O back plate, "Do-Not-Disturb" door hanger, case badge, cable labels |
| Software Included | MSI Command Center, RAMdisk, MSI Live Update 6, MSI Gaming App |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | Plug and Play |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1150 |
| Compliant Standards | High Definition Audio, Sound Blaster Cinema 2 |
| Features | |
| BIOS Features | DMI support, MSI ClickBIOS 4, MSI MultiBIOS II |
| Hardware Features | NVIDIA 3-way SLI Technology Support, Hi-c CAP, Super Charger, Intel Smart Response Technology, Super Ferrite Choke (SFC), AMD 3-way CrossFireX technology support, Onboard Button, Easy Button 3, Front Audio Headphone Amplifier, Nichicon High-end Audio Capacitors, MSI Military Class IV, OC Genie 4, Gold Plated Audio Hardware, Clear CMOS Button, MSI Gaming Device Port, MSI Audio Boost 2, MSI Guard-Pro, Debug LED, Turbo M.2, MSI USB Audio Power |
| LAN | |
| Network Controller | Killer Gaming E2205 |
| Network Interfaces | Gigabit Ethernet |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2133 MHz, 2666 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 3000 MHz (O.C.), 2750 MHz (O.C.), 3110 MHz (O.C.), 3333 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Registered, unbuffered |
| Features | Quad channel memory architecture |
