Switch - L3 - managed - 32 x 40 Gigabit QSFP+ - rack-mountable
| Main Specifications | |
|---|---|

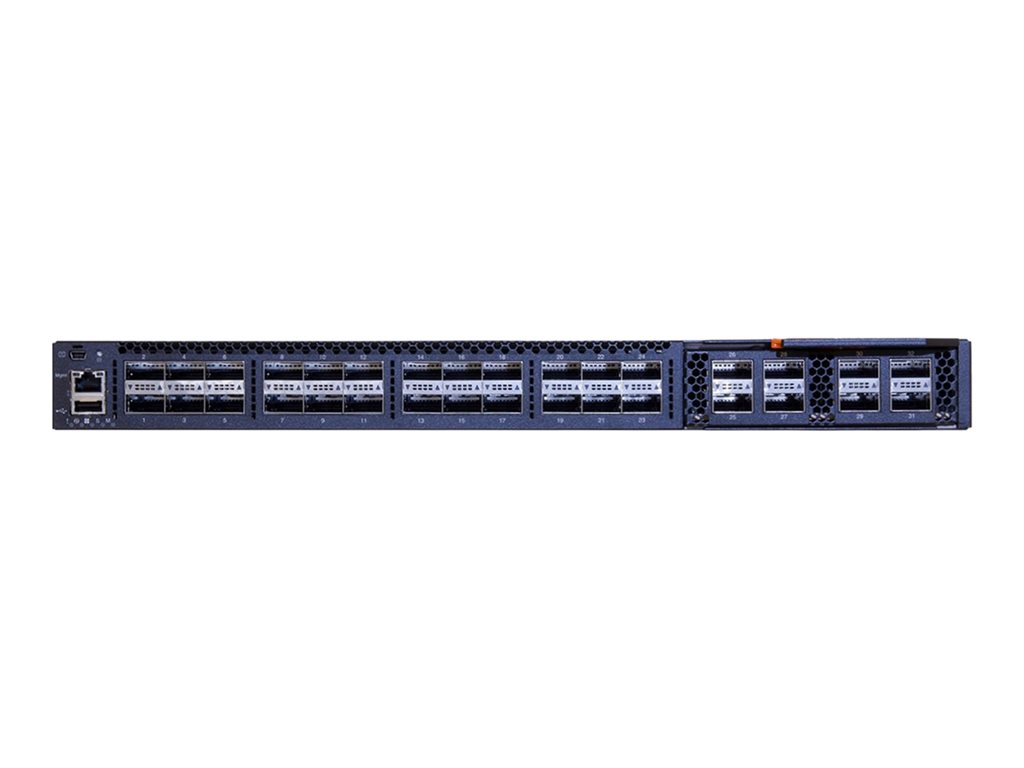

| Product Description | Lenovo RackSwitch G8332 - switch - 32 ports - managed - rack-mountable |
| Device Type | Switch - 32 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 40 Gigabit Ethernet |
| Ports | 32 x 40 Gigabit QSFP+ |
| Performance | Throughput: 2.56 Tbps |
| Capacity | IGMP groups: 3000 ¦ IP router interfaces: 126 ¦ MSTP instances: 32 ¦ Virtual interfaces (VLANs): 4095 ¦ Maximum IPv4 with ACL applied: 256 ¦ IPv4 routes (static): 128 ¦ Maximum IPv6 with ACL applied: 128 ¦ Maximum number of FCoE sessions: 2048 |
| MAC Address Table Size | 128K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP |
| Features | NAT support, VLAN support, IGMP snooping, traffic shaping, port mirroring, Broadcast Storm Control, Multicast Storm Control, WRED, sFlow, STP support, RSTP support, VRRP support, MSTP support, DCBX support, enhanced transmission selection, ACL support, QoS, LLDP support, DHCP relay, LACP, PVRST, DCB, NTP time synchronization, hot swappable 4 fans, End-to-end FCoE, CoS, tagged VLAN, CEE, EVB, 802.1x authentication, ToS, PTP, DSCP support, IGMP filtering, OpenFlow support, Protocol-based VLANs support, FCoE support, VEPA, FIP, ECN, ECP, VSI, EVB TLV, Lenovo NMotion, PFC, FCS, FCF, CoPP, FDMI |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.2 in x 19.8 in x 1.7 in |
| Weight | 25.35 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Switch - 32 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 40 Gigabit Ethernet |
| Ports | 32 x 40 Gigabit QSFP+ |
| Performance | Throughput: 2.56 Tbps |
| Capacity | IGMP groups: 3000 ¦ IP router interfaces: 126 ¦ MSTP instances: 32 ¦ Virtual interfaces (VLANs): 4095 ¦ Maximum IPv4 with ACL applied: 256 ¦ IPv4 routes (static): 128 ¦ Maximum IPv6 with ACL applied: 128 ¦ Maximum number of FCoE sessions: 2048 |
| MAC Address Table Size | 128K entries |
| Jumbo Frame Support | 9216 bytes |
| Fibre Channel | FC-BB-5 |
| Routing Protocol | RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP |
| Authentication Method | RADIUS, TACACS+, LDAP |
| Features | NAT support, VLAN support, IGMP snooping, traffic shaping, port mirroring, Broadcast Storm Control, Multicast Storm Control, WRED, sFlow, STP support, RSTP support, VRRP support, MSTP support, DCBX support, enhanced transmission selection, ACL support, QoS, LLDP support, DHCP relay, LACP, PVRST, DCB, NTP time synchronization, hot swappable 4 fans, End-to-end FCoE, CoS, tagged VLAN, CEE, EVB, 802.1x authentication, ToS, PTP, DSCP support, IGMP filtering, OpenFlow support, Protocol-based VLANs support, FCoE support, VEPA, FIP, ECN, ECP, VSI, EVB TLV, Lenovo NMotion, PFC, FCS, FCF, CoPP, FDMI |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg |
| Expansion / Connectivity | |
| Interfaces | 32 x 40Gbit LAN QSFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x management (mini-USB) ¦ 1 x USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | TUV GS, CISPR 22 Class A, EN55024, EN55022 Class A, ICES-003 Class A, FCC CFR47 Part 15, CSA C22.2 No. 60950-1, KC, VCCI Class A, EAC, UL60950-1, CNS 14336, IEC60950-1, NIST SP800-131A, GB 4943.1-2011 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Features | Rear-to-front airflow |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 19.8 in |
| Height | 1.7 in |
| Weight | 25.35 lbs |
