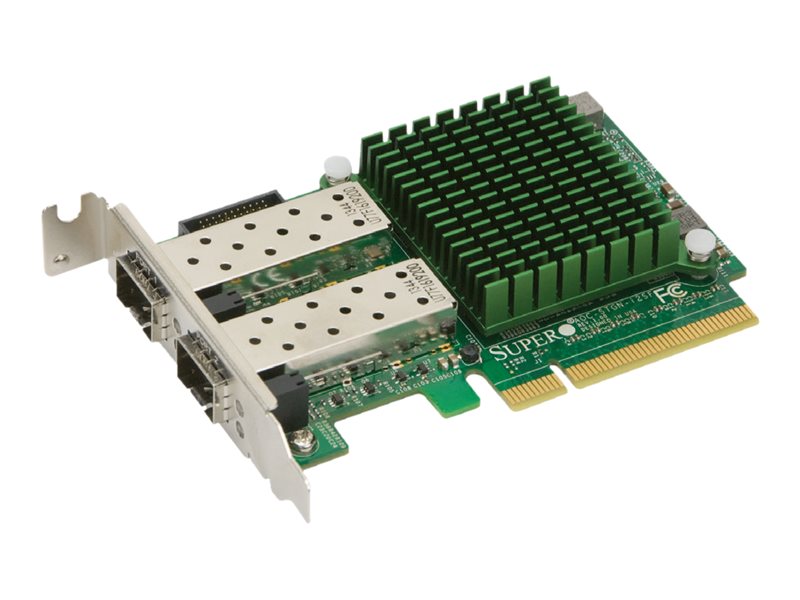

Network adapter - PCIe 2.0 x8 low profile - 10 Gigabit SFP+ x 2
| Main Specifications | |
|---|---|
| Product Description | Supermicro AOC-STGN-I2SF - network adapter - PCIe 2.0 x8 - 10 Gigabit SFP+ x 2 |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| Ports | 10 Gigabit SFP+ x 2 |
| Dimensions (WxDxH) | 4 in x 2.7 in |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Processor | 1 x Intel 82599 |
| System Requirements | FreeBSD, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Microsoft Windows Server 2003 x64 Edition, Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Vista (32/64 bits), Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits), Microsoft Windows Server 2012 x64 Edition |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x SFP+ |
| Miscellaneous | |
| Included Accessories | Low-profile bracket, full-height bracket |
| Compliant Standards | RoHS |
| Networking | |
| Ports | 10 Gigabit SFP+ x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Remote Management Protocol | SNMP, RMON |
| Features | Load balancing, VLAN support, packet filtering, VMDq, PXE support, SR-IOV, checksum offload support, Intel QuickData Technology, DCA, MSI-X, FCoE support, NC-SI |
| Software / System Requirements | |
| Software Included | Intel PROSet |
| OS Required | FreeBSD, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Microsoft Windows Server 2003 x64 Edition, Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Vista (32/64 bits), Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits), Microsoft Windows Server 2012 x64 Edition |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Processor / Memory | |
| Processor | 1 x Intel 82599 |
| Dimensions & Weight | |
| Depth | 4 in |
| Height | 2.7 in |
