Power supply (internal) - 80 PLUS Gold - AC 100-240 V - 650 Watt
| Main Specifications | |
|---|---|
| Product Description | EVGA SuperNOVA 650 GS - power supply - 650 Watt |
| Device Type | Power supply - internal |
| 80 PLUS Certification | 80 PLUS Gold |
| Weight | 5 lbs |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 54 A ¦ +5VSB - 2.5 A ¦ -12V - 0.3 A |

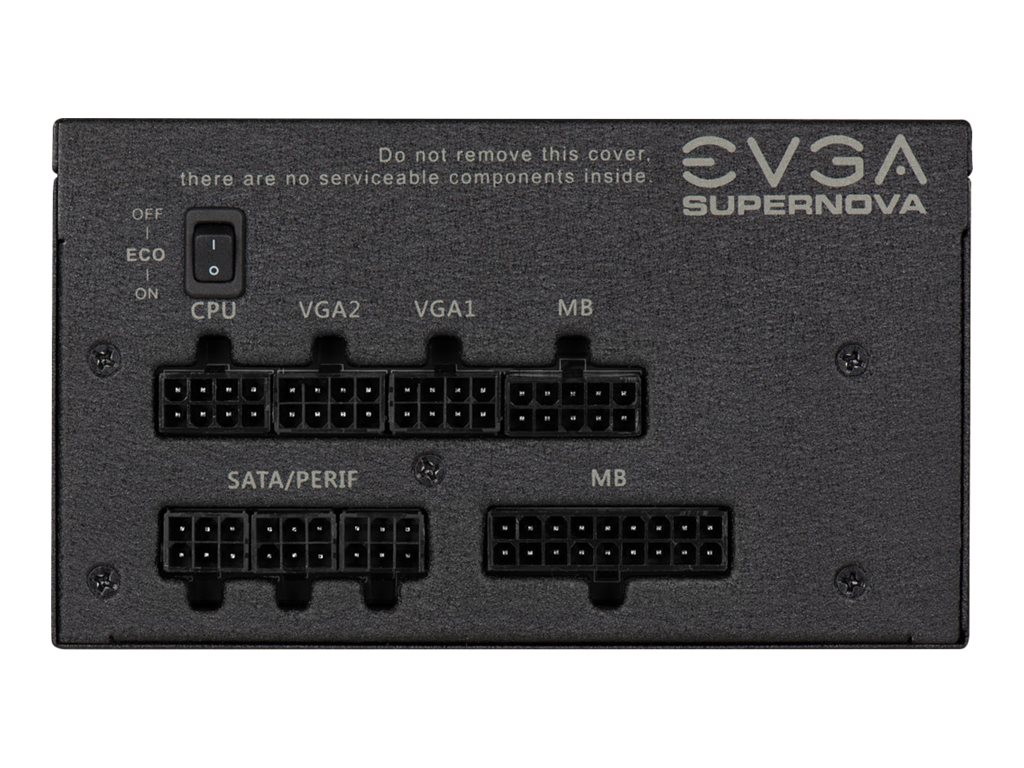

| Output connectors | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x power 8 pin EPS12V ¦ 8 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power ¦ 1 x 4 pin mini-power connector ¦ 4 x 8 pin PCI Express power with detachable 2 pin section |
| Modular Cable Management | Yes |
| Cooling System | 120 mm fan |
| Dimensions (WxDxH) | 5.9 in x 5.9 in x 3.4 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Power supply - internal |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |

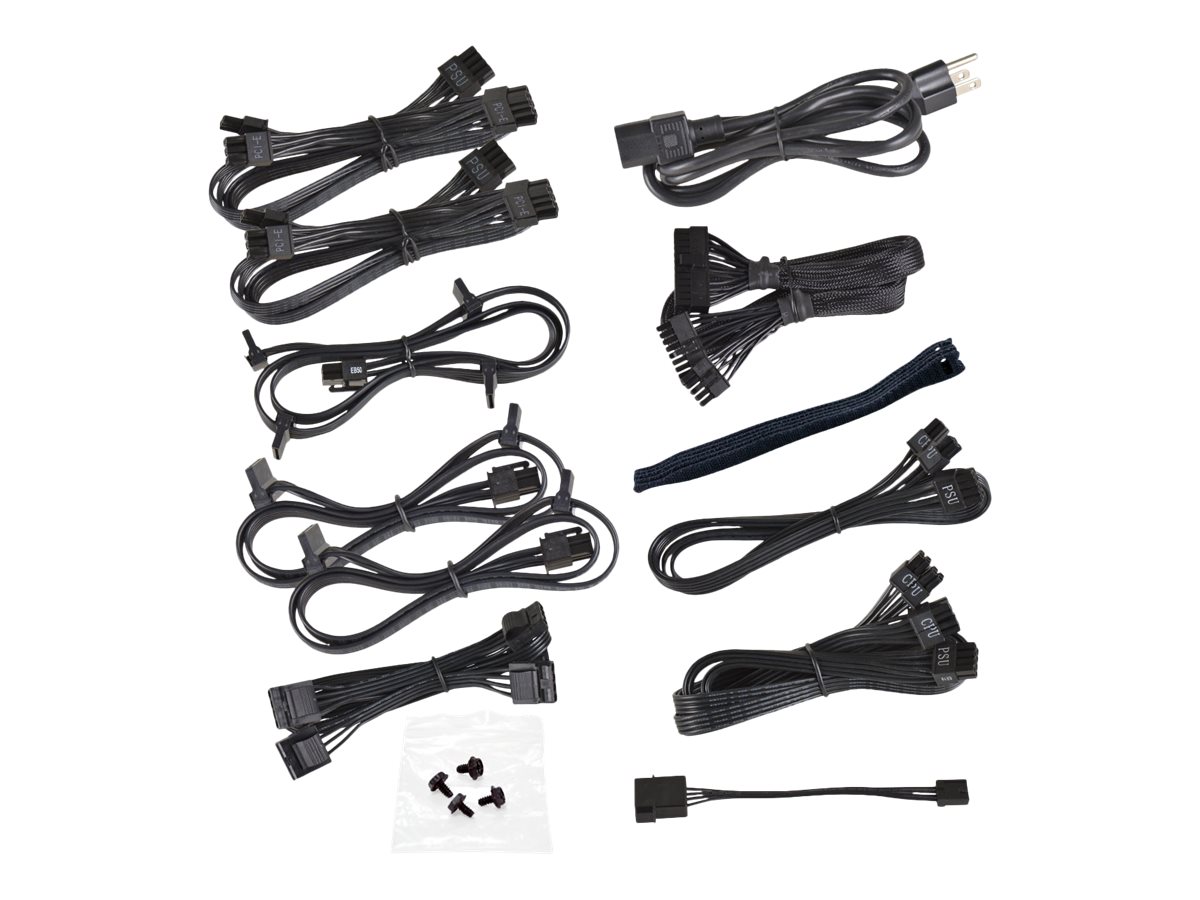

| Cables Included | Power cable 5 ft ¦ Power 24 pin ATX modular cable - detachable - 2 ft ¦ Power 8 pin EPS12V modular cable - detachable - 2 ft ¦ Power 2x 8 pin EPS12V modular cable - detachable - 1.8 ft ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable - detachable - 2 ft ¦ 4x Serial ATA modular cable - detachable - 2.8 ft ¦ 2x Serial ATA modular cable - detachable - 2 ft ¦ 4x 4 pin internal power modular cable - detachable - 2.8 ft ¦ 4 pin mini-power connector modular cable - detachable - 3.9 in |
| MTBF | 100,000 hour(s) |
| Cooling System | 120 mm fan |
| Features | Overcurrent protection, overvoltage protection, overpower protection, SLI ready, CrossFire ready, undervoltage protection, short-circuit protection, Eco-Mode, fully modular |
| Compliant Standards | TUV, CB, FCC, RoHS, WEEE, cTUVus, ErP 2013, RCM |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x power 8 pin EPS12V ¦ 8 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power ¦ 1 x 4 pin mini-power connector ¦ 4 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 54 A ¦ +5VSB - 2.5 A ¦ -12V - 0.3 A |
| Efficiency | 90% (115VAC) / 92% (220-240VAC) |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 5.9 in |
| Height | 3.4 in |
| Weight | 5 lbs |
