Wireless access point - 1GbE - Wi-Fi - 2.4 GHz
| Main Specifications | |
|---|---|
| Product Description | TP-Link Omada EAP120 - wireless access point - Wi-Fi |
| Device Type | Wireless access point |
| Form Factor | External |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| OS Required | Microsoft Windows Vista / XP / 7 / 8 |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 7.1 in x 7.1 in x 1.9 in |
| General | |
| Device Type | Wireless access point |
| Width | 7.1 in |
| Depth | 7.1 in |
| Height | 1.9 in |
| Expansion / Connectivity | |

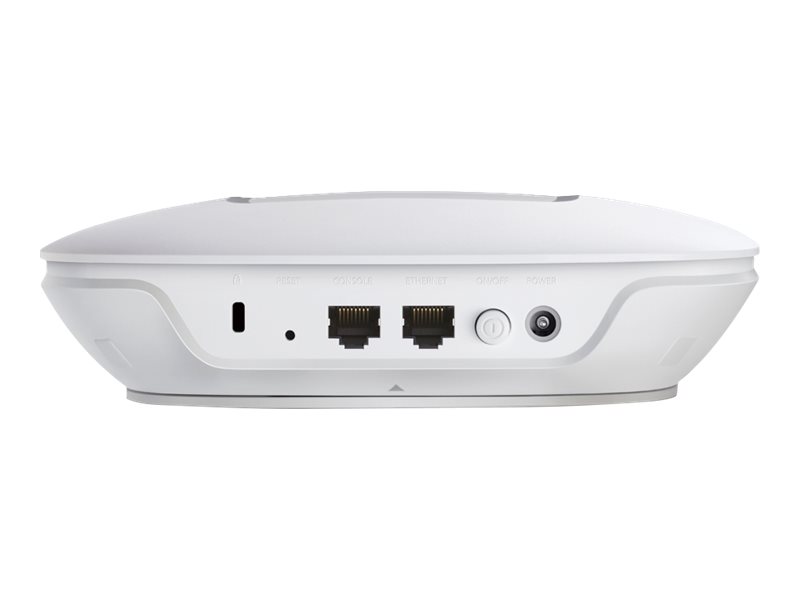

| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x management (RS-232) - RJ-45 |
| Miscellaneous | |
| Compliant Standards | UL 2043, FCC, RoHS |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 300 Mbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 2c, HTTP, HTTPS, CLI |
| Frequency Band | 2.4 GHz |
| Status Indicators | System |
| Features | Syslog support, manageable, E-mail alert, MAC address filtering, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Multiple SSID support, reset button, ceiling mountable, security lock slot (cable lock sold separately) |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2-PSK, WPA2-Enterprise |
| Authentication Method | RADIUS |
| Compliant Standards | IEEE 802.11b, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter |
| Power Consumption Operational | 4.4 Watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Vista / XP / 7 / 8 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Gain Level | 4 dBi |
