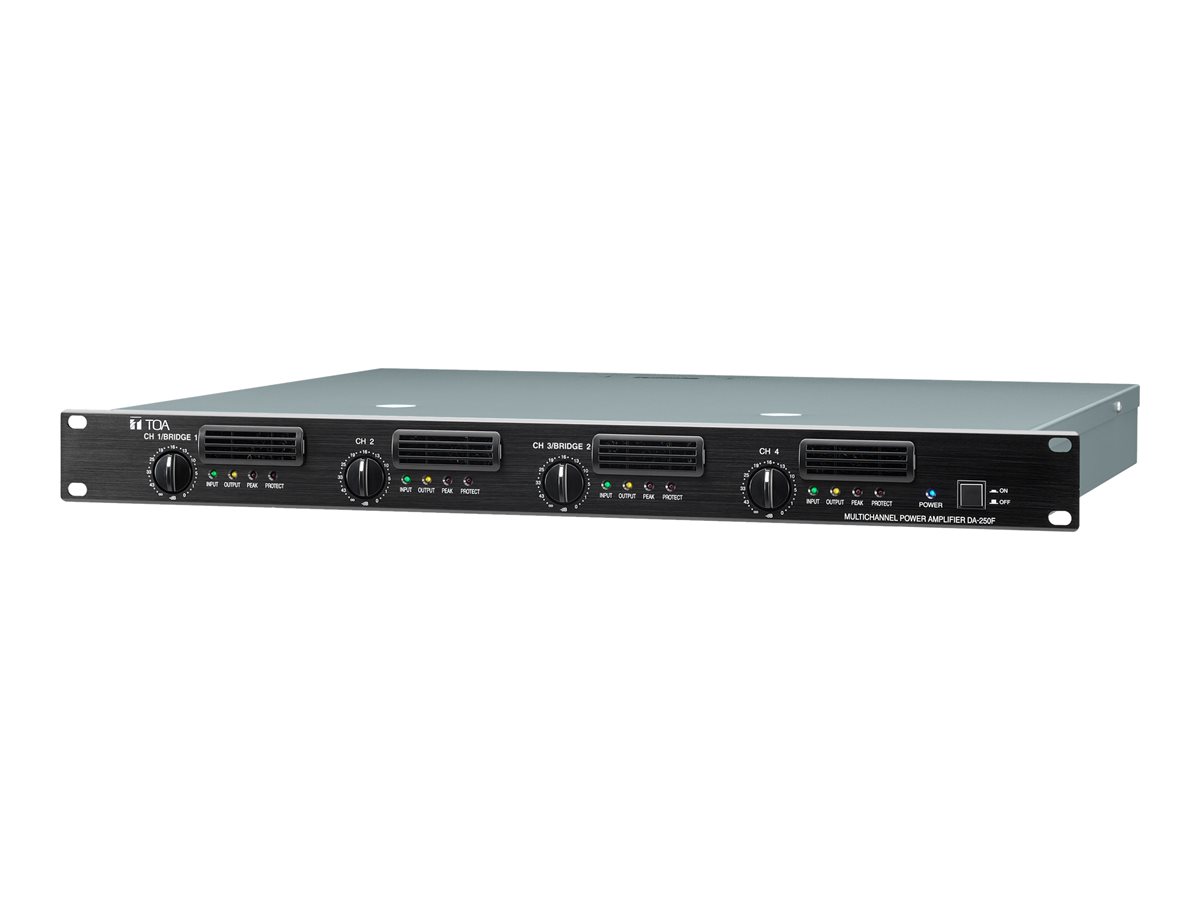

Power amplifier - black
| Main Specifications | |
|---|---|
| Product Description | TOA DA-250F CU - power amplifier |
| Product Type | Power amplifier |
| Enclosure Color | Black |
| Audio Channels | Stereo |
| Audio Specifications | Amplifier - 20 - 20000 Hz - 100 dB 0.3% ¦ Amplifier - at 1 kHz - 100 dB 0.1% |
| Power | AC 120 V (50/60 Hz) |
| Dimensions (WxDxH) | 19 in x 15.8 in x 1.7 in |
| Weight | 14.55 lbs |
| General | |
| Product Type | Power amplifier |
| Enclosure Color | Black |
| Enclosure Material | Aluminum, steel |
| Miscellaneous | |
| Included Accessories | Power cable, 4 terminal plug, 4 temper-proof cap |
| Power | |
| Voltage Required | AC 120 V (50/60 Hz) |
| Connections | |
| Connectors | 4 x balanced audio input (3 pin terminal) - rear ¦ 4 x speakers output (screw-type) - rear |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 15.8 in |
| Height | 1.7 in |
| Weight | 14.55 lbs |
| Audio System | |
| Audio Channels | Stereo |
| Functions | Amplifier |
| Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 100 dB - THD - 0.3% ¦ Amplifier - Response Bandwidth - at 1 kHz - SNR - 100 dB - THD - 0.1% |
| Input Channel Qty | 4 channels |
| Input Impedance | 10 kOhm |
| Amplifier Output Details | 250 Watt - 4 Ohm - 4 channels ¦ 170 Watt - 8 Ohm - 4 channels ¦ 500 Watt - 8 Ohm - 2 channels (bridged) |
| Features | Input level controls, thermal protection, overload protection, cooling fan, short circuit protection, over voltage protection, bridged output capability, rack mountable, D-CLASS amplifier, low voltage protection |
