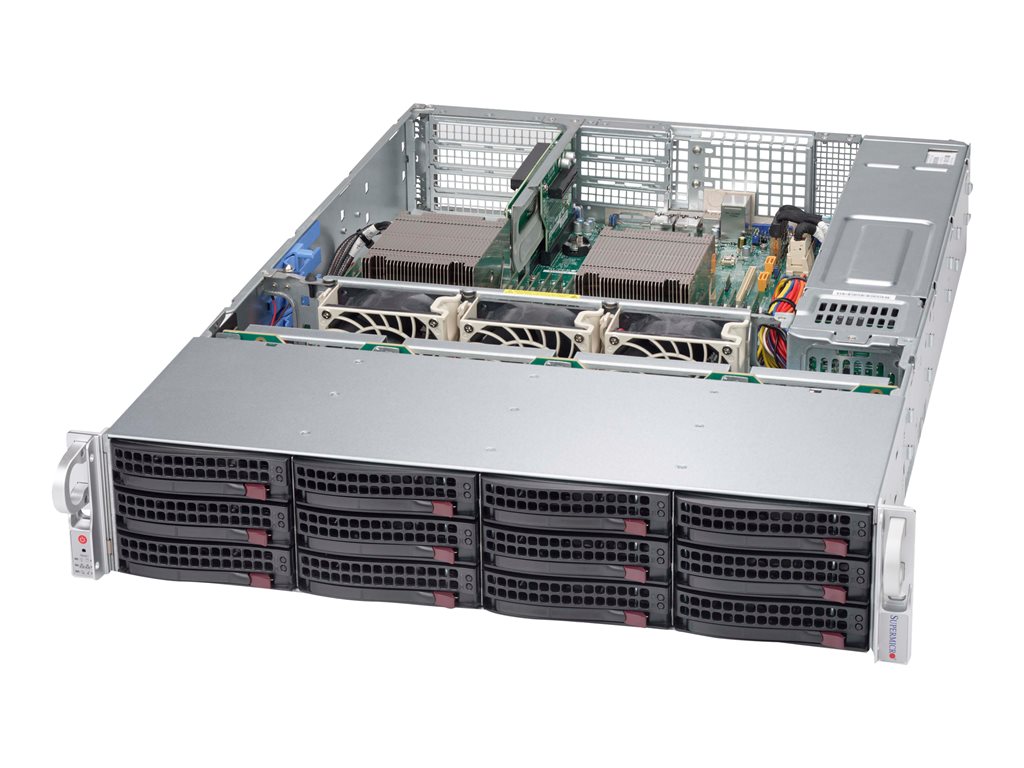

Rack-mountable 2U - enhanced extended ATX - SATA/SAS - hot-swap 920 Watt - black
| Main Specifications | |
|---|---|
| Product Description | Supermicro SC826 BAC4-R920WB - rack-mountable - 2U - enhanced extended ATX |
| Product Type | System cabinet |
| Form Factor | Rack-mountable - 2U |
| Color | Black |
| Built-in Devices | LED panel |
| Supported Motherboards | Extended ATX, enhanced extended ATX |
| Server Storage Bays | SATA/SAS - hot-swap |
| System Cabinet Features | Chassis intrusion detection |
| Power Device | Power supply 920 watt |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 17.2 in x 25.5 in x 3.5 in |
| Weight | 39.99 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Form Factor | Rack-mountable - 2U |
| Max Mainboard Size | Enhanced extended ATX |
| Supported Motherboards | Extended ATX, enhanced extended ATX |
| Hot-Swap Bays Qty | 12 |
| Server Swappable Drive Interface | SATA/SAS |
| Built-in Devices | LED panel |
| Color | Black |
| Cooling System | Internal: 80 x 80 x 38 mm fan x 3 / 7000 rpm / Pulse-width modulation (PWM) support ¦ 60 mm fan mount x 5 |
| System Cabinet Features | Chassis intrusion detection |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 3.5" |
| Expansion Slots | 4 x half-length, full-height ¦ 3 x low-profile |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - labor - 3 years ¦ Limited warranty - parts - 1 year |
| Miscellaneous | |
| Included Accessories | Mounting rails, SAS / SATA backplane, air shroud, control panel board |
| Compliant Standards | FCC Class B certified, UL, TUV, BSMI, cUL, CB, CCC, EMC |
| Power | |
| Power Device | Power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Provided | 920 watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 25.5 in |
| Height | 3.5 in |
| Weight | 39.99 lbs |
