Serial adapter - RS-232C - RS-232 - black
| Main Specifications | |
|---|---|
| Product Description | Startech RS232 to TTL Serial Converter - serial adapter - RS-232C |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | Serial RS-232C |
| Dimensions (WxDxH) | 1.3 in x 2.5 in x 0.6 in |
| Weight | 0.88 oz |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 115.2 Kbps |
| Color | Black |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | Serial RS-232C |
| Expansion / Connectivity | |

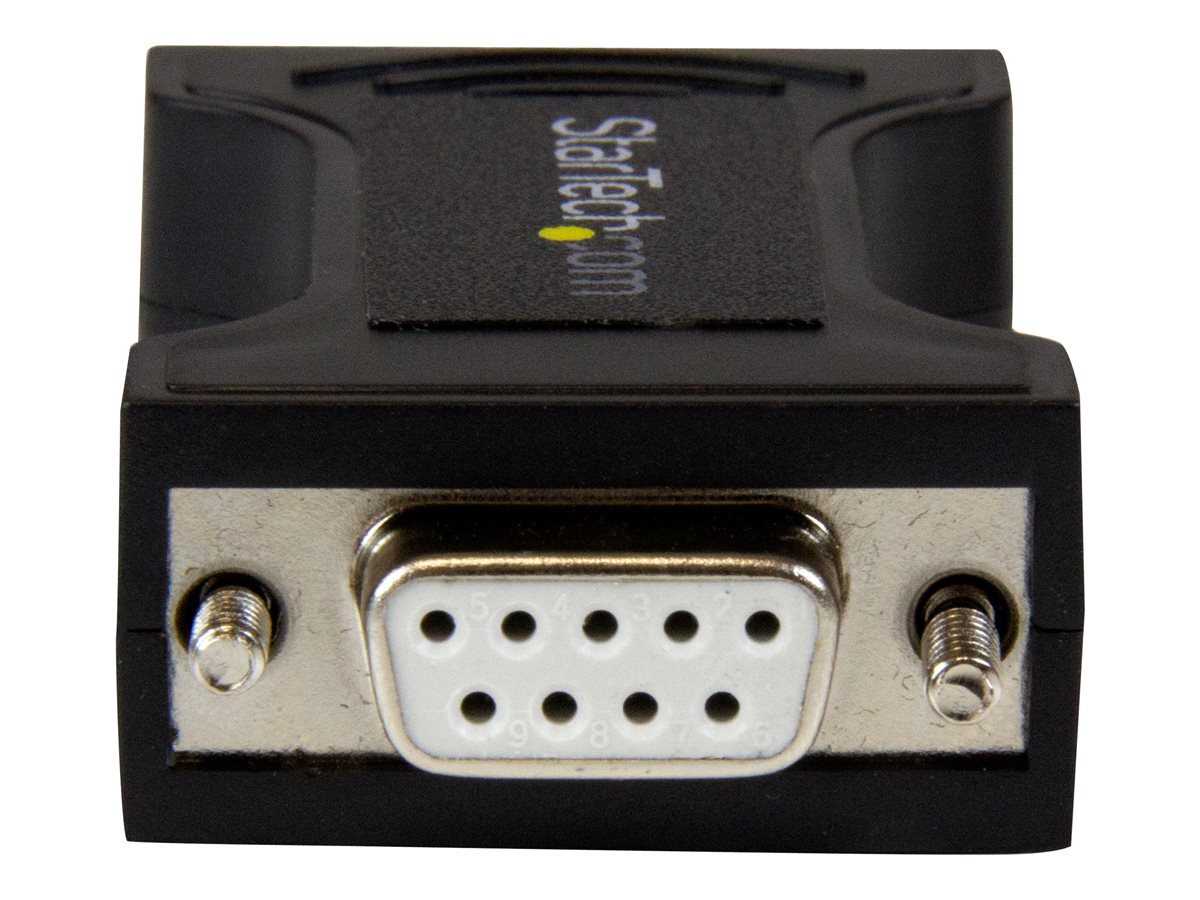

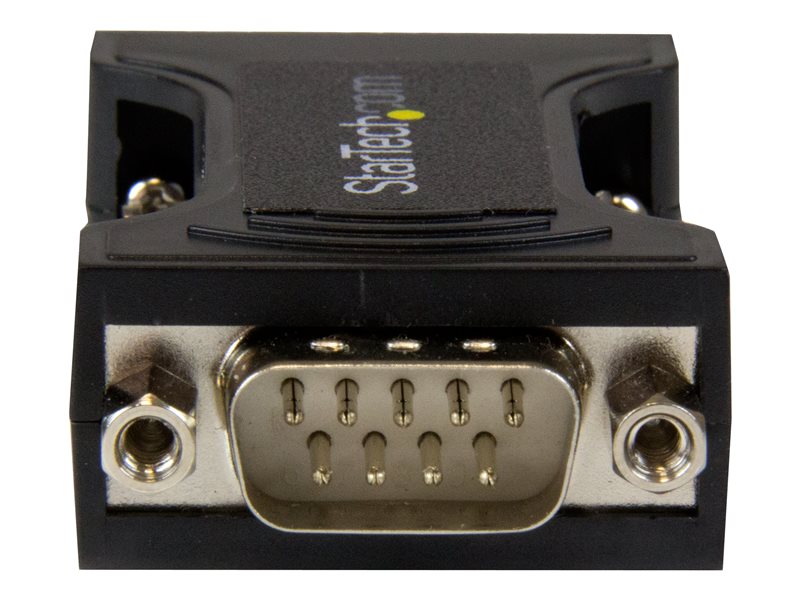

| Interfaces | 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x RS-232 (TTL) - 9 pin D-Sub (DB-9) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Color | Black |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 115.2 Kbps |
| Features | Flow control, full duplex mode |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | |
| Width | 1.3 in |
| Depth | 2.5 in |
| Height | 0.6 in |
| Weight | 0.88 oz |
