Switch - L2+ - managed - 8 x 10GBase-T + 12 x 10 Gigabit SFP+ + 4 x combo 10 Gigabit SFP+ - rack-mountable
| Main Specifications | |
|---|---|

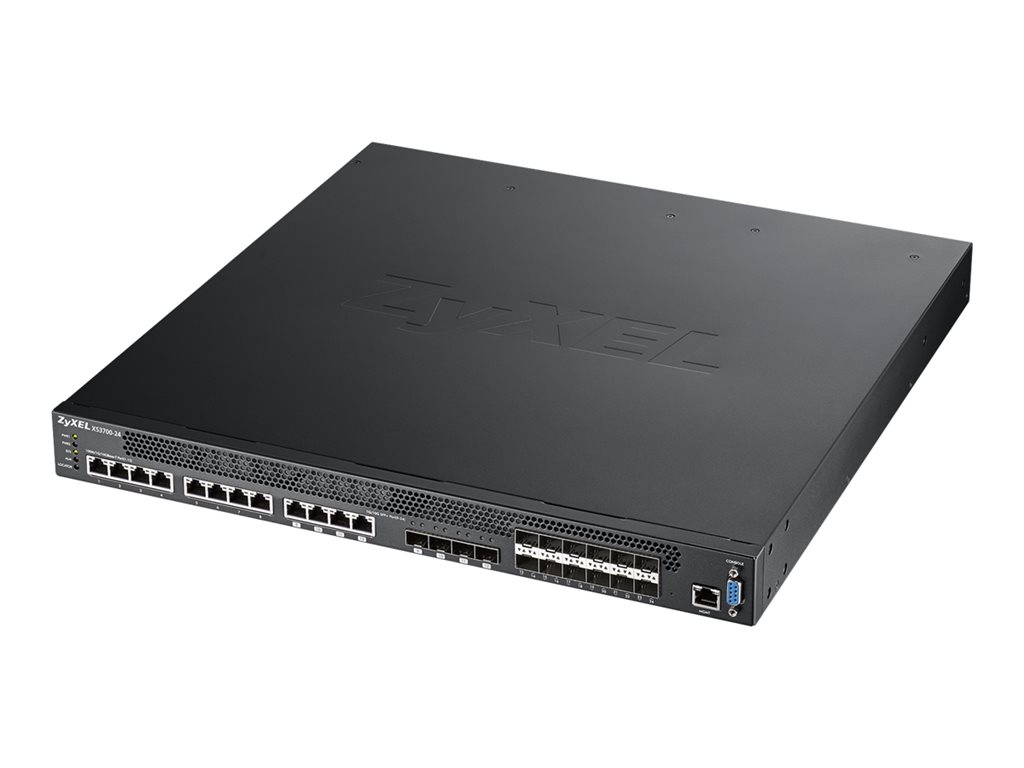

| Product Description | Zyxel XS3700-24 - switch - 24 ports - managed - rack-mountable |
| Device Type | Switch - 24 ports - L2+ - managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 8 x 10GBase-T + 12 x 10 Gigabit SFP+ + 4 x combo 10 Gigabit SFP+ |
| Performance | Switching capacity: 480 Gbps ¦ Forwarding performance: 357.14 Mpps |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ QoS hardware queues per port: 8 |
| MAC Address Table Size | 16K entries |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI |
| Features | Flow control, auto-negotiation, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, store and forward, MAC address filtering, Broadcast Storm Control, IP address filtering, Multicast Storm Control, Unicast Storm Control, firmware upgradable, WFQ, ZyXEL iStacking Technology, sFlow, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, RADIUS support, DHCP server, MLD snooping, DHCP relay, LACP, Port Security, NTP server, IP-MAC binding, MIB, MVR, dual firmware images, SPQ, loop prevention, port isolation, CoS, GVRP, IGMP proxy, 4MB packet buffer, TRTCM, ErrDisable Recovery, ZON, IGMP filtering, MLD proxy, CPU protection, IP source guard, ARP inspection |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 17.2 in x 1.7 in |
| Weight | 16.3 lbs |
| General | |
| Device Type | Switch - 24 ports - L2+ - managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 8 x 10GBase-T + 12 x 10 Gigabit SFP+ + 4 x combo 10 Gigabit SFP+ |
| Performance | Switching capacity: 480 Gbps ¦ Forwarding performance: 357.14 Mpps |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ QoS hardware queues per port: 8 |
| MAC Address Table Size | 16K entries |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, auto-negotiation, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, store and forward, MAC address filtering, Broadcast Storm Control, IP address filtering, Multicast Storm Control, Unicast Storm Control, firmware upgradable, WFQ, ZyXEL iStacking Technology, sFlow, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, RADIUS support, DHCP server, MLD snooping, DHCP relay, LACP, Port Security, NTP server, IP-MAC binding, MIB, MVR, dual firmware images, SPQ, loop prevention, port isolation, CoS, GVRP, IGMP proxy, 4MB packet buffer, TRTCM, ErrDisable Recovery, ZON, IGMP filtering, MLD proxy, CPU protection, IP source guard, ARP inspection |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az |
| RAM | 512 MB |
| Flash Memory | 32 MB |
| Status Indicators | Port status, system, link/activity |
| Expansion / Connectivity | |
| Interfaces | 16 x SFP+ ¦ 12 x 10GBase-T RJ-45 ¦ 1 x console DB-9 ¦ 1 x management RJ-45 |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| MTBF | 446,034.72 hours |
| Compliant Standards | BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A, BSMI ENC |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 161 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 17.2 in |
| Height | 1.7 in |
| Weight | 16.3 lbs |
