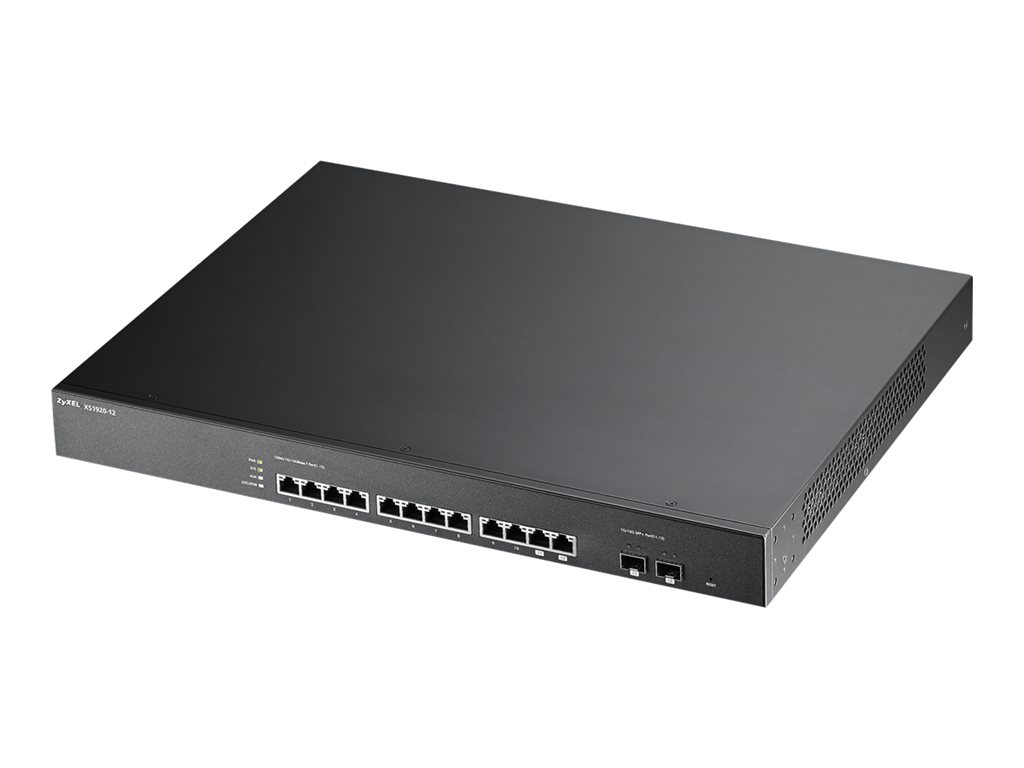

Switch - managed - 10 x 10GBase-T + 2 x combo 10 Gigabit SFP+ - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Zyxel XS1920-12 - switch - 12 ports - managed - rack-mountable |
| Device Type | Switch - 12 ports - managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 10 x 10GBase-T + 2 x combo 10 Gigabit SFP+ |
| Performance | Switching capacity: 240 Gbps ¦ Forwarding performance: 178.6 Mpps |
| Capacity | QoS hardware queues per port: 8 |
| MAC Address Table Size | 16K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, CLI |
| Features | Flow control, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, IP address filtering, Multicast Storm Control, Unicast Storm Control, WFQ, ZyXEL iStacking Technology, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, LLDP support, DHCP relay, LACP, Port Security, NTP server, IP-MAC binding, SNMP trap, DHCP client, Energy Efficient Ethernet, MVR, GVRP, dual firmware images, SPQ, NDP, 2MB packet buffer, loop prevention, port isolation, CoS, tagged VLAN, IGMP proxy, ErrDisable Recovery, ZON, IGMP filtering, IGMP throttling, CPU protection, IP source guard, ARP inspection, policy based rate limiting |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 13 in x 1.8 in |
| Weight | 9.27 lbs |
| General | |
| Device Type | Switch - 12 ports - managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 10 x 10GBase-T + 2 x combo 10 Gigabit SFP+ |
| Performance | Switching capacity: 240 Gbps ¦ Forwarding performance: 178.6 Mpps |
| Capacity | QoS hardware queues per port: 8 |
| MAC Address Table Size | 16K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, CLI |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+ |
| Features | Flow control, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, IP address filtering, Multicast Storm Control, Unicast Storm Control, WFQ, ZyXEL iStacking Technology, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, LLDP support, DHCP relay, LACP, Port Security, NTP server, IP-MAC binding, SNMP trap, DHCP client, Energy Efficient Ethernet, MVR, GVRP, dual firmware images, SPQ, NDP, 2MB packet buffer, loop prevention, port isolation, CoS, tagged VLAN, IGMP proxy, ErrDisable Recovery, ZON, IGMP filtering, IGMP throttling, CPU protection, IP source guard, ARP inspection, policy based rate limiting |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az |
| Status Indicators | Power, system, link/activity |
| Expansion / Connectivity | |
| Interfaces | 12 x 10GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+ |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| MTBF | 839,624.71 hours |
| Compliant Standards | BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A, BSMI ENC |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 95.6 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 13 in |
| Height | 1.8 in |
| Weight | 9.27 lbs |
