Wireless router 4-port switch - 1GbE Dual Band
| Main Specifications | |
|---|---|

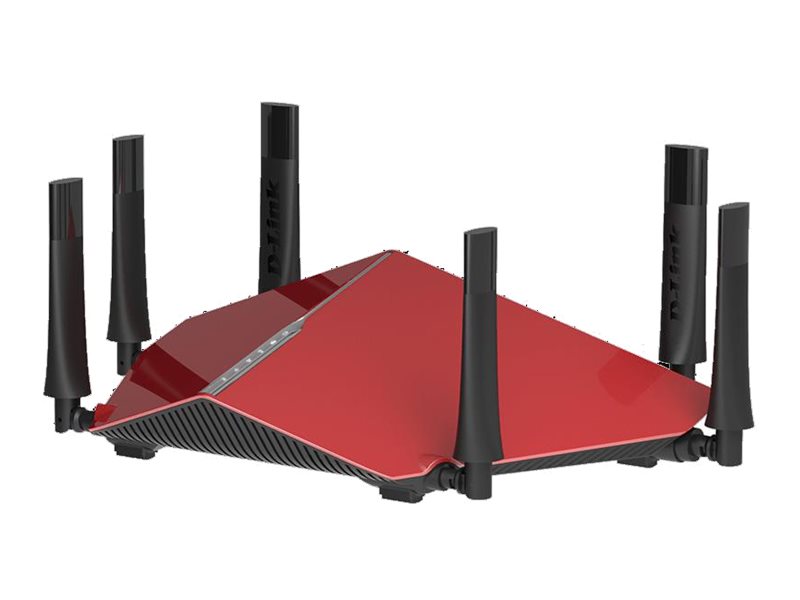

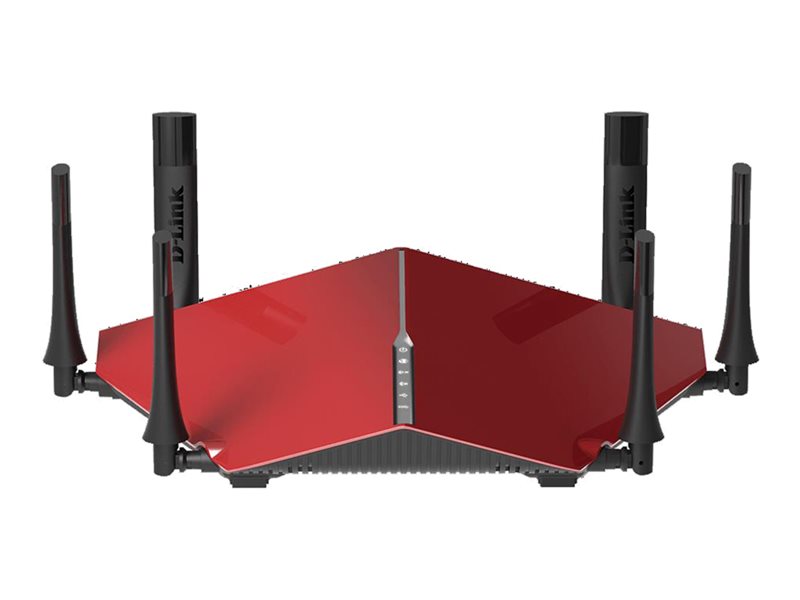

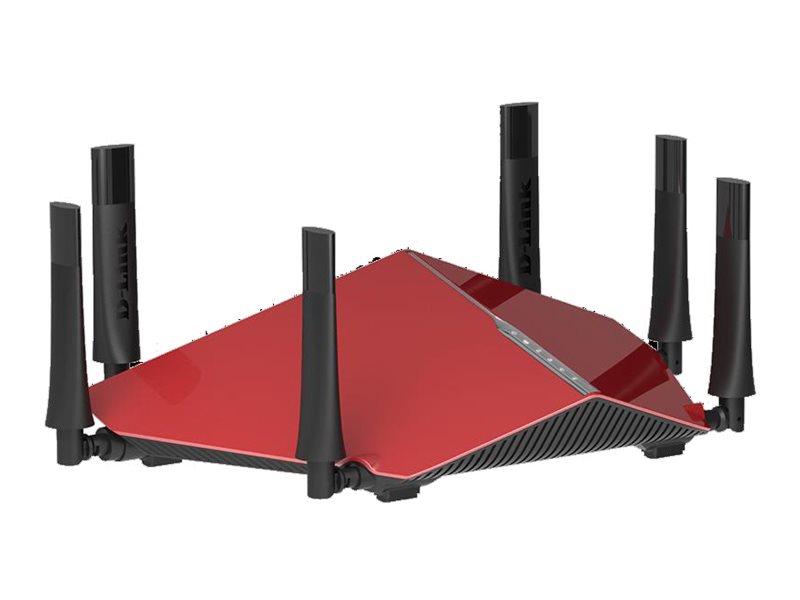

| Product Description | D-Link DIR-890L - wireless router - Wi-Fi 5 - desktop |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 3200 Mbps |
| Network / Transport Protocol | PPTP, L2TP, IPSec |
| Remote Management Protocol | HTTP |
| Features | Firewall protection, NAT support, SPI, IPv6 support, VPN passthrough, Zero Configuration Technology, WMM support, QoS, WPS, Green Ethernet, reset button, DLNA Media Server, SharePort Technology, VPN Server, Guest Zone support, Advanced AC SmartBeam technology, SmartConnect Technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, Wi-Fi Protected Setup, DLNA CERTIFIED, IEEE 802.11ac |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 14.7 in x 9.5 in x 6.2 in |
| System Requirements | Apple MacOS X 10.4 or later, Microsoft Windows XP SP3, Microsoft Windows Vista / 7 / 8 |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 3200 Mbps |
| Network / Transport Protocol | PPTP, L2TP, IPSec |
| Remote Management Protocol | HTTP |
| Encryption Algorithm | WPA, WPA2 |
| Features | Firewall protection, NAT support, SPI, IPv6 support, VPN passthrough, Zero Configuration Technology, WMM support, QoS, WPS, Green Ethernet, reset button, DLNA Media Server, SharePort Technology, VPN Server, Guest Zone support, Advanced AC SmartBeam technology, SmartConnect Technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, Wi-Fi Protected Setup, DLNA CERTIFIED, IEEE 802.11ac, IC, FCC |
| Status Indicators | Power, WLAN, USB, WPS, Internet |
| Expansion / Connectivity | |

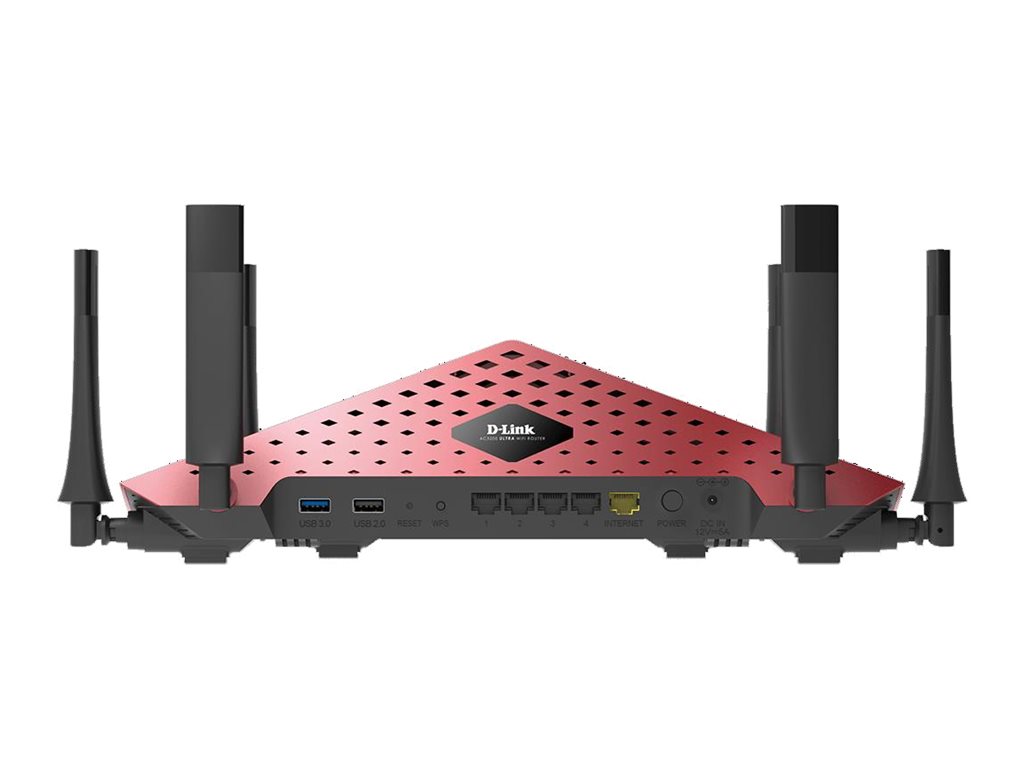

| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ USB 3.0: 1 x 9 pin USB Type A |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Apple MacOS X 10.4 or later, Microsoft Windows XP SP3, Microsoft Windows Vista / 7 / 8 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 14.7 in |
| Depth | 9.5 in |
| Height | 6.2 in |
| Antenna | |
| Antenna | External integrated |
| Antenna Qty | 6 |
