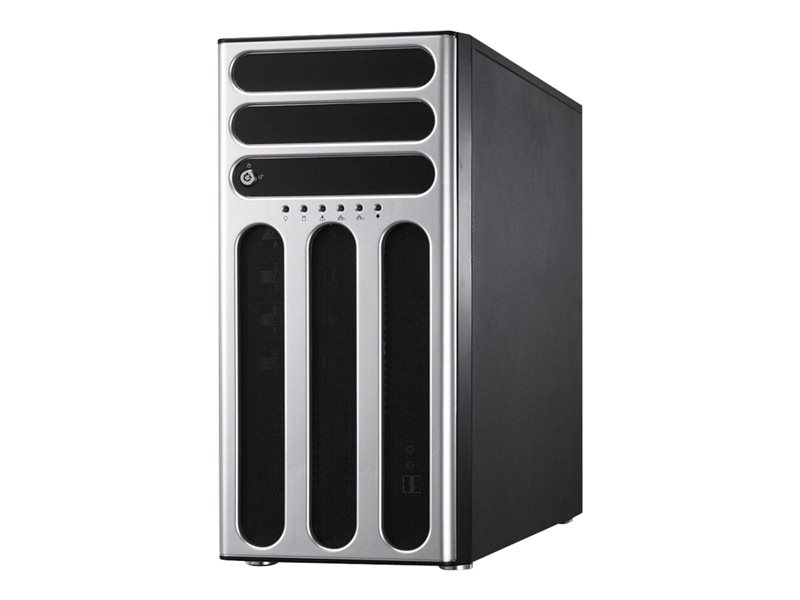

Server - tower 5U - 2-way - no CPU - RAM 0 GB - SATA - hot-swap 3.5" bay(s) - no HDD - AST2400 - Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|
| Product Description | ASUS TS500-E8-PS4 - tower no CPU - 0 GB - no HDD |
| Type | Server - tower |
| Height (Rack Units) | 5U |
| Server Scalability | 2-way |
| Processor | No CPU |
| Processor Socket | LGA2011-v3 Socket |
| RAM | 0 GB (installed) / 512 GB (max) - DDR4 SDRAM - ECC |
| Storage Controller | RAID (SATA 6Gb/s) |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2400 |
| Video Memory | 32 MB |
| Networking | 1GbE |
| Power | AC 120/230 V (50 - 60 Hz) |
| Software Included | Drivers & Utilities, ASUS System Web-based Management (ASWM) Enterprise |
| Dimensions (WxDxH) | 8.6 in x 21.5 in x 17.9 in |
| Weight | 36.38 lbs |
| General | |
| Type | Server |
| Product Form Factor | Tower - 5U |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 3 |
| Hot-Swap Bays Qty | 4 |
| Expansion / Connectivity | |
| Bays | 4 (total) / 4 (free) x hot-swap 3.5" ¦ 3 (total) / 3 (free) x external 5.25" |
| Slots | 2 (total) / 2 (free) x CPU ¦ 8 (total) / 8 (free) x DIMM 288-pin ¦ 3 (total) / 3 (free) x PCIe 3.0 x8 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 - full-length, full-height (x4 mode) ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - full-length, full-height (x16 mode (x8 mode if PCI Express 3.0 x8 slot is occupied)) ¦ 1 (total) / 1 (free) x M.2 Card |

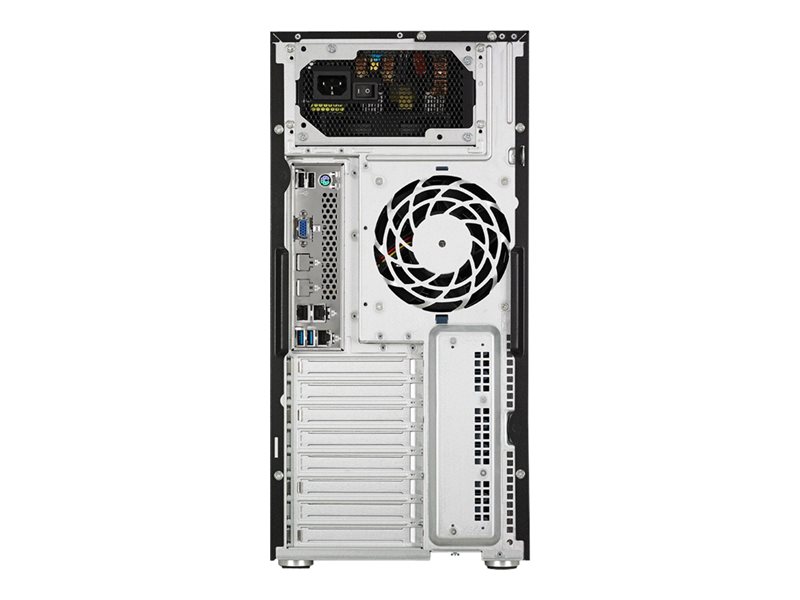

| Interfaces | 2 x USB 2.0 ¦ 2 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x VGA ¦ 1 x management |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, C-Tick, BSMI |
| RAM | |
| Installed Size | 0 GB (installed) / 512 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Form Factor | DIMM 288-pin |
| Slots | 8 (total) / 8 (empty) |
| Features | Registered, quad channel memory architecture, Load-Reduced DIMM (LRDIMM) |
| RAM Supported | 512 GB Load-Reduced - ECC ¦ 256 GB registered - ECC |
| Networking | |
| Type | Integrated |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I210-AT |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power supply |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Provided | 500 Watt |
| 80 PLUS Certification | 80 PLUS Bronze |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Storage Controller | |
| Type | 1 x RAID - integrated |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 10 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | ASPEED AST2400 |
| Video Memory | 32 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| Software | Drivers & Utilities, ASUS System Web-based Management (ASWM) Enterprise |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 8.6 in |
| Depth | 21.5 in |
| Height | 17.9 in |
| Weight | 36.38 lbs |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA2011-v3 Socket |
| Chipset Type | Intel C612 |
