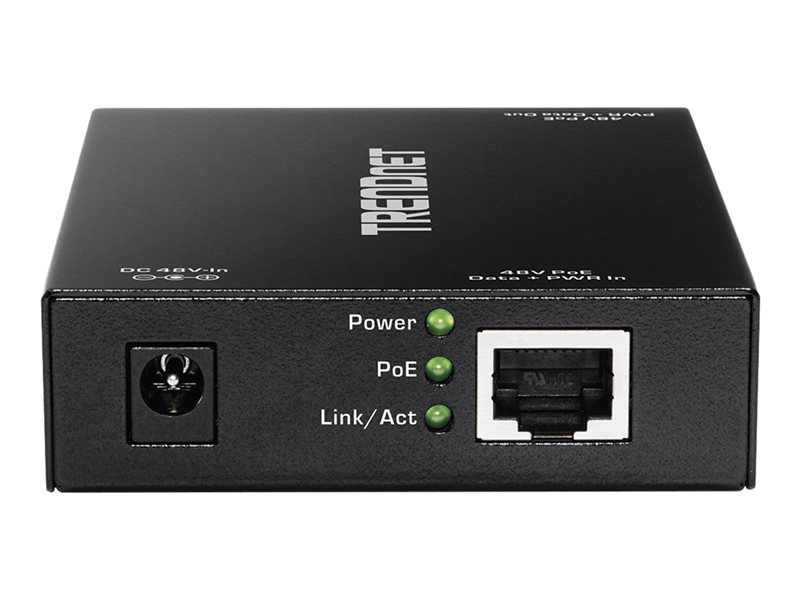

Repeater - 1GbE - 10Base-T, 100Base-TX, 1000Base-T - RJ-45 / RJ-45 - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TPE-E100 - repeater - 10Mb LAN, 100Mb LAN, 1GbE |
| Device Type | Repeater - RJ-45 / RJ-45 |
| Form Factor | External |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Transfer Rate | 2 Gbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 328 ft |
| Power Over Ethernet (PoE) | PoE+ |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 3.9 in x 3 in x 0.9 in |
| Weight | 8.04 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Repeater |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ input) - RJ-45 female ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ output) - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 2 Gbps |
| MAC Address Table Size | 2K entries |
| Max Transfer Distance | 328 ft |
| Status Indicators | PoE, link/activity |
| Features | Wall mountable, rugged, metal housing, full duplex mode, half duplex mode, 96KB packet buffer, cascadable, IGMP snooping |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Power | |
| Power Over Ethernet (PoE) | PoE+ |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 36 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.9 in |
| Depth | 3 in |
| Height | 0.9 in |
| Weight | 8.04 oz |
