Digital signage player - 4 GB RAM - Intel Core i7 - SSD - 120 GB - Windows 7 Embedded - black
| Main Specifications | |
|---|---|
| Product Description | Shuttle Scala Certified DS81I7SCLA - digital signage player |
| Device Type | Digital signage player |
| Dimensions (WxDxH) | 7.5 in x 6.5 in x 1.7 in |
| Color | Black |
| Processor | Intel Core i7 x 1 |
| RAM | 4 GB (installed) / 16 GB (max) - DDR3 SDRAM |
| Graphics | Intel HD Graphics 4600 |
| Hard Drive | 120 GB |
| Flash Memory Cards Supported | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Interfaces | Gigabit Ethernet, Wi-Fi |
| OS Provided | Microsoft Windows Embedded Standard 7 |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Digital signage player |
| Width | 7.5 in |
| Depth | 6.5 in |
| Height | 1.7 in |
| Weight | 2.87 lbs |
| Color | Black |
| OS Provided | Microsoft Windows Embedded Standard 7 |
| Interfaces | Gigabit Ethernet, IEEE 802.11b/g/n |
| Key Features | Digital audio player, digital photo viewer, memory card reader, digital video player |
| Features | Security lock slot (cable lock sold separately), Wake-on-LAN |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | C-Tick, BSMI, CB, FCC, ETL, EMI, Directive 73/23/EWG, Directive 89/336/EWG |
| Processor | |
| Manufacturer | Intel |
| Type | Core i7 |
| Installed Qty | 1 |
| RAM | |
| Form Factor | SO-DIMM 204-pin |
| Technology | DDR3 SDRAM |
| Installed Size | 4 GB |
| Max Supported Size | 16 GB |
| Slots Qty | 2 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Software | |
| Software Included | Scala Enterprise Player |
| Connectivity | |

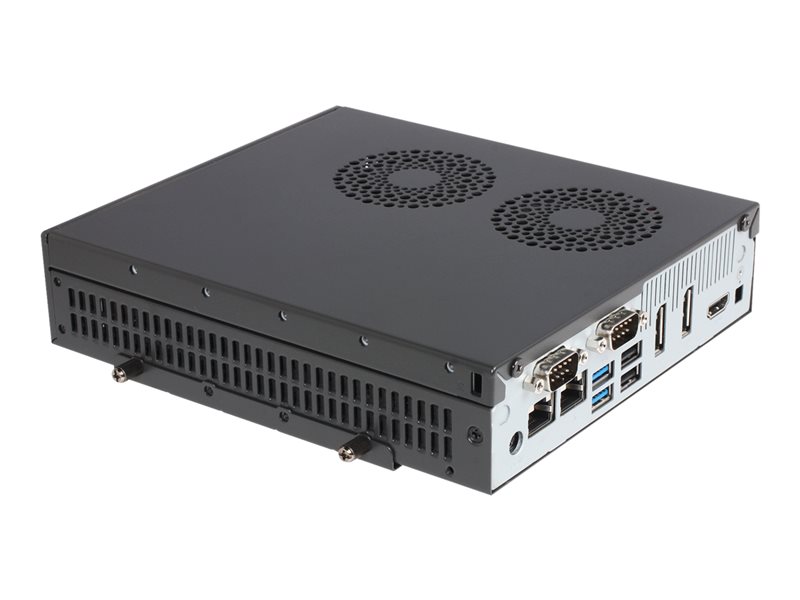

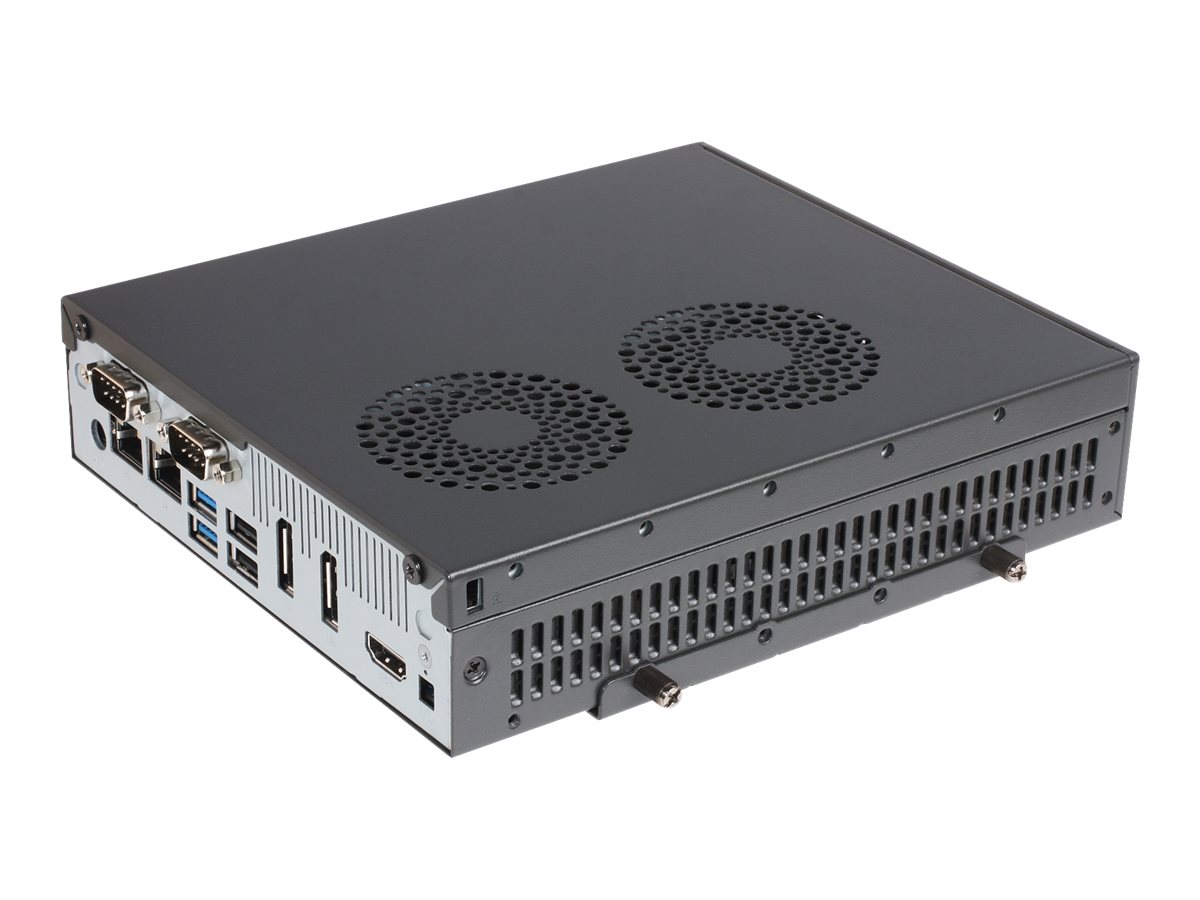

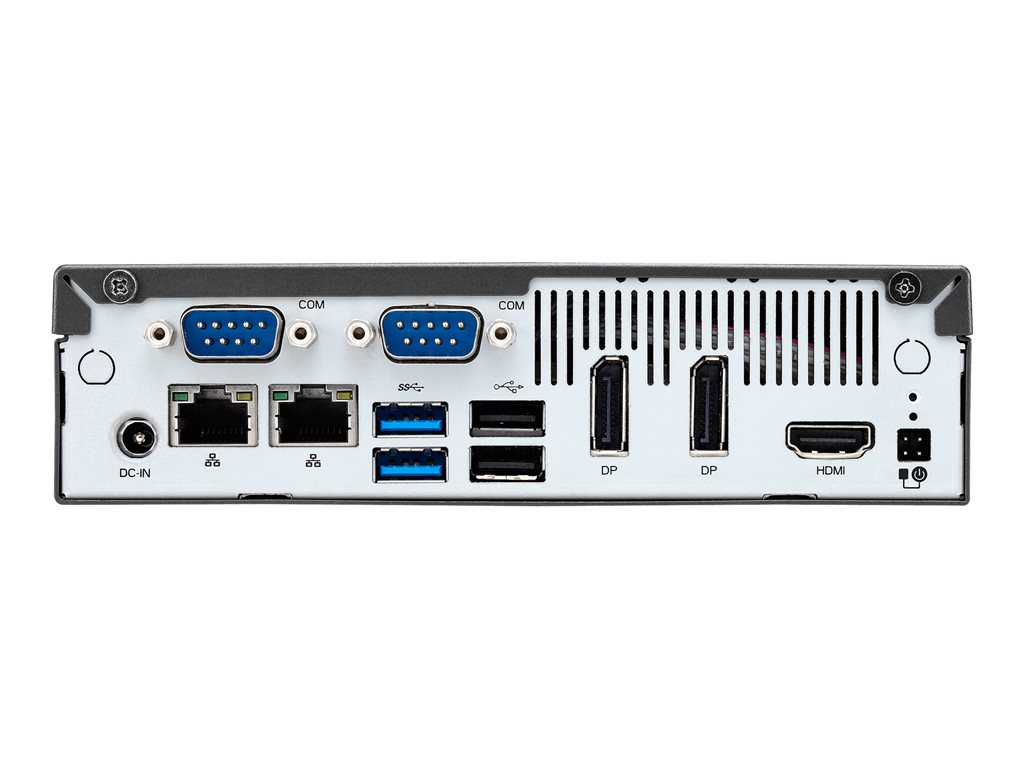

| Connections | 2 x USB 3.0 ¦ 2 x LAN (Gigabit Ethernet) ¦ Microphone - mini-jack (1 in front) ¦ Audio line-out/headphones - mini-jack (1 in front) ¦ HDMI ¦ 2 x DisplayPort ¦ 6 x USB 2.0 (4 front, 2 rear) ¦ 2 x serial |
| Video Output | |
| Graphics Processor | Intel HD Graphics 4600 |
| Power Device | |
| Input | AC 120/230 V (50/60 Hz) |
| Output | 19 V, 4.74 A |
| Memory / Storage | |
| Flash Memory Cards Supported | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Storage Drive Capacity | 120 GB |
| Storage Drive Form Factor | Built-in |
| Digital Storage | |
| Storage Drive Type | SSD |
| Capacity | 120 GB |
