Hard drive array - 6 bays (SATA-600 / SAS-2) 0 - USB 3.0, Thunderbolt 2 (external)
| Main Specifications | |
|---|---|

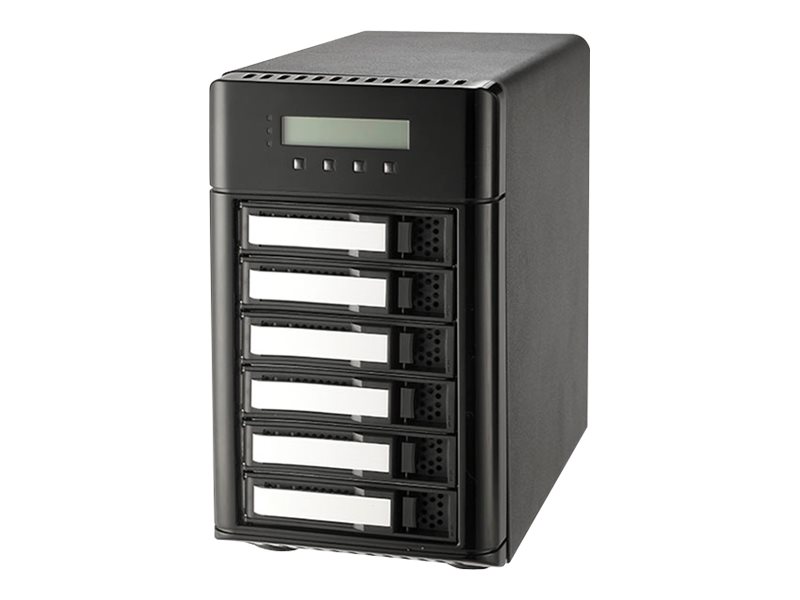

| Product Description | Areca ARC-5028T2 - hard drive array |
| Device Type | Hard drive array |
| Interface | USB 3.0, Thunderbolt 2 |
| Installed Devices / Modules Qty | 6 (max) |
| Supported Drives | SATA-600 / SAS-2 |
| Built-in Devices | Status LCD |
| Storage Controller | RAID (SATA 6Gb/s / SAS 6Gb/s) - RAID 0, 1, 3, 5, 6, 10, 30, 50, JBOD, 1E, 60 |
| Hard Drive | 0 - hot-swap |
| OS Required | Microsoft Windows 7, Windows 8, Apple OS X 10.8.5 Mountain Lion or later |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 5.7 in x 11.4 in x 10 in |
| Weight | 13.23 lbs |
| General | |
| Device Type | Hard drive array |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" shared |
| Interfaces | 1 x USB 3.0 - 10 pin Micro-USB Type B ¦ 2 x Thunderbolt 2 ¦ 1 x Ethernet (management) - RJ-45 |
| Miscellaneous | |
| Features | Audible alarm, LED indicator, built-in cooling fan, SNMP support, automatic monitor clone (AMC) |
| Compliant Standards | FCC |
| Processor | |
| CPU | 1 x 933 MHz |
| RAM | |
| Installed Size | 1 GB |
| Storage | |
| HDD Array External Interface | USB 3.0, Thunderbolt 2 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V |
| Power Provided | 180 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s / SAS 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 30, RAID 50, JBOD, RAID 1E, RAID 60 |
| System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8, Apple OS X 10.8.5 Mountain Lion or later |
| Hard Drive | |
| Type | Hot-swap |
| Capacity | 0 |
| Dimensions & Weight | |
| Width | 5.7 in |
| Depth | 11.4 in |
| Height | 10 in |
| Weight | 13.23 lbs |
| Chassis | |
| Built-in Devices | Status LCD |
| Supported Devices / Modules Qty | 6 |
| Supported Drives | SATA-600 / SAS-2 |
