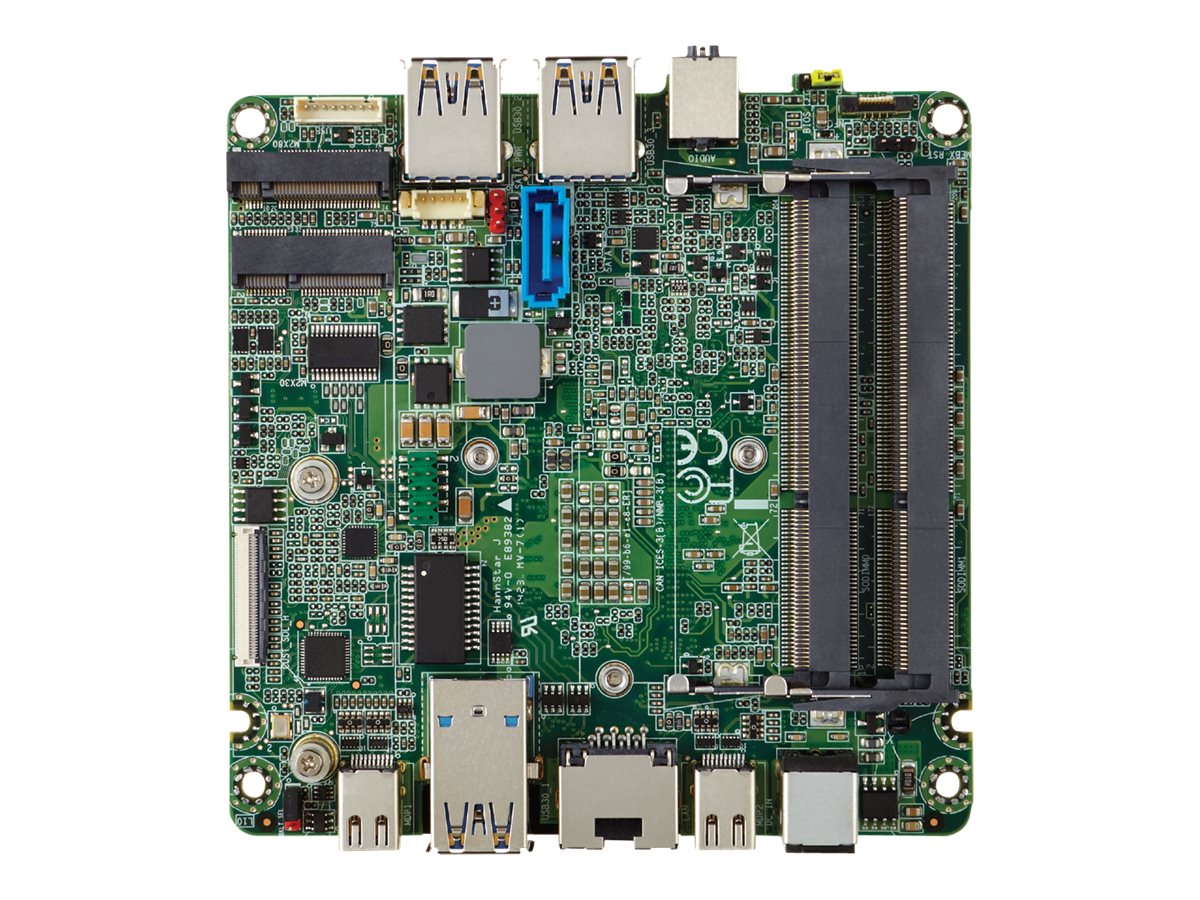

Motherboard - UCFF - Intel Core i3 5010U - USB 3.0 - Gigabit LAN - onboard graphics - HD Audio (8-channel)
| Main Specifications | |
|---|---|
| Product Description | Intel Next Unit of Computing Board NUC5i3MYBE - motherboard - UCFF - Intel Core i3 5010U |
| Product Type | Motherboard - UCFF |
| Processor | Intel Core i3 5010U / 2.1 GHz (Dual-Core) |
| Max RAM Size | 16 GB |
| RAM Supported | 2 SO-DIMM slots - DDR3L |
| USB / FireWire Ports | 4 x USB 3.0 + (2 x USB 2.0 via headers) |
| Graphics | Intel HD Graphics 5500 |
| Audio | HD Audio (8-channel) |
| LAN | Gigabit Ethernet |
| Microsoft Certification | Compatible with Windows 7 |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Motherboard - UCFF |
| Processor | Intel Core i3 5010U / 2.1 GHz (Dual-Core) |
| Cache Memory | 3 MB |
| Expansion / Connectivity | |
| Expansion Slots | 2 x SO-DIMM 204-pin ¦ 2 x M.2 socket |
| Storage Interfaces | SATA-600 -connectors: 1 |
| Interfaces | 4 x USB 3.0 ¦ 2 x Mini DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out/microphone |
| Internal Interfaces | 1 x Embedded DisplayPort (eDP) ¦ 1 x USB 2.0 - header ¦ 1 x serial - header |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Package Type | Bulk |
| Audio | |
| Type | HD Audio (8-channel) |
| Features | |
| BIOS Type | Intel |
| BIOS Features | ACPI 3.0b support, SMBIOS 2.5 support, Intel Visual BIOS |
| Hardware Features | WatchDog Timer, Trusted Platform Module (TPM) 2.0 |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Graphics | |
| Graphics Controller | Intel HD Graphics 5500 |
| Supported RAM | |
| Max Size | 16 GB |
| Technology | DDR3L |
| Bus Clock | 1600 MHz, 1333 MHz |
