Hard drive array - 4 bays (SATA-600 / SAS-2) - Thunderbolt 2 (external)
| Main Specifications | |
|---|---|
| Product Description | HighPoint RocketStor - hard drive array |
| Device Type | Hard drive array |
| Max Supported Capacity | 24 TB |
| Interface | Thunderbolt 2 |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Supported Drives | SATA-600 / SAS-2 |
| Storage Controller | RAID (SATA 6Gb/s / SAS 6Gb/s) - RAID JBOD, 0, 1, 10, 5 |
| Storage Controller Quantity | 1 |
| Hard Drive | No HDD |
| Power | AC 120/230 V |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Hard drive array |
| Expansion / Connectivity | |

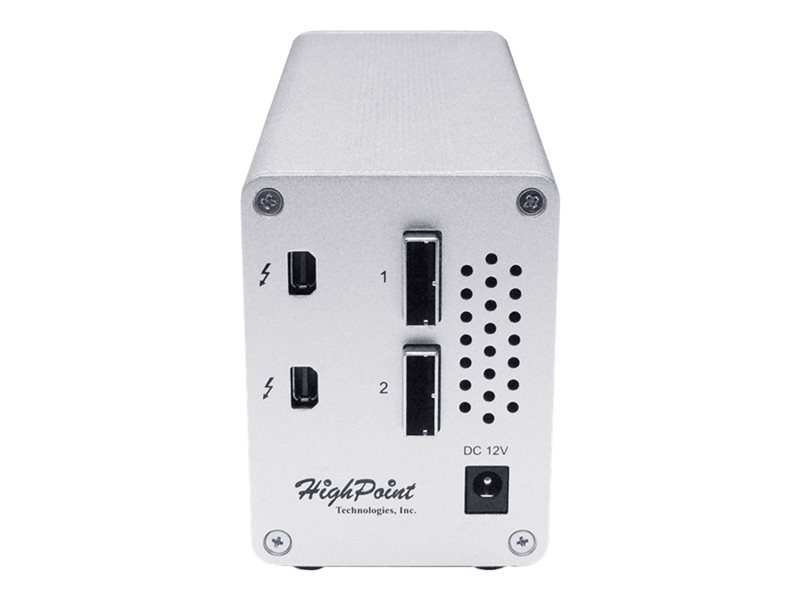

| Interfaces | 2 x Thunderbolt 2 - Mini DisplayPort ¦ 2 x SAS - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Miscellaneous | |

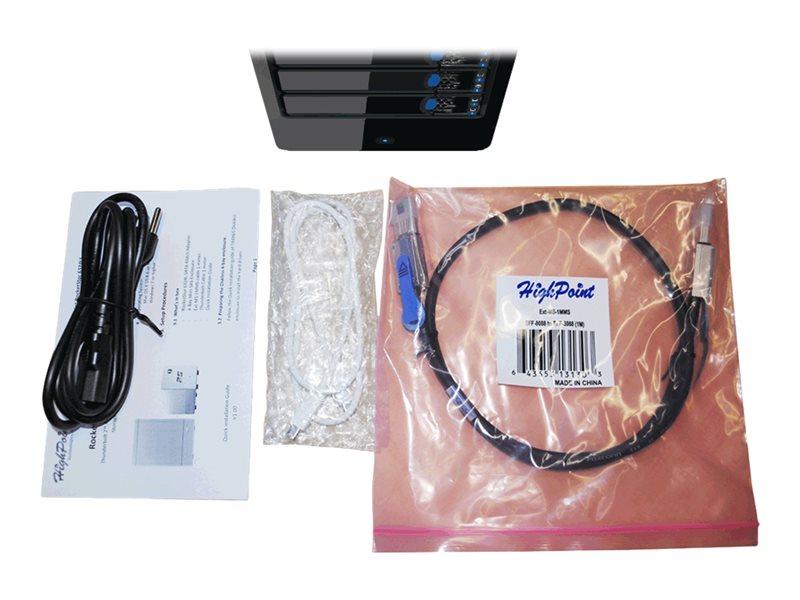

| Cables Included | 1 x mini SAS cable ¦ 1 x Thunderbolt cable |
| Compliant Standards | Plug and Play |
| Storage | |
| Max Supported Capacity | 24 TB |
| HDD Array External Interface | Thunderbolt 2 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V |
| Power Provided | 250 Watt |
| Storage Controller | |
| Type | RAID |
| Installed Qty | 1 |
| Interface Type | SATA 6Gb/s / SAS 6Gb/s |
| Data Transfer Rate | 600 MBps |
| RAID Level | JBOD, RAID 0, RAID 1, RAID 10, RAID 5 |
| Storage Controller (2nd) | |
| Installed Qty | 1 |
| Hard Drive | |
| Type | No HDD |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 4 |
| Supported Drives | SATA-600 / SAS-2 |
