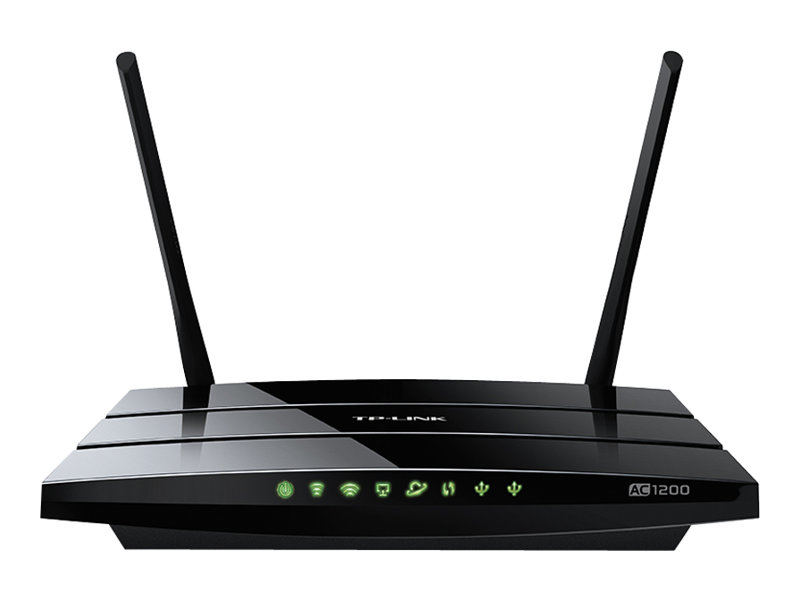

Wireless router 4-port switch - 1GbE Dual Band
| Main Specifications | |
|---|---|
| Product Description | TP-Link Archer C5 - wireless router - Wi-Fi 5 - desktop |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1.2 Gbps |
| Network / Transport Protocol | TCP/IP, PPTP, L2TP, IPSec, PPPoE, FTP, DHCP, DDNS |
| Features | Firewall protection, DMZ port, SPI, dynamic DNS server, print server, MAC address filtering, IPv6 support, WDS support, IP address filtering, domain blocking, WMM support, ACL support, QoS, virtual server support, DHCP server, Samba support, static IP mode, port forwarding, UPnP Media Server, bandwidth control, IPv4 support, port triggering, dynamic IP mode, IP-MAC binding, DHCP client, DoS, DHCP reservation |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac |
| Dimensions (WxDxH) | 9.6 in x 6.3 in x 1.3 in |
| System Requirements | UNIX, Apple MacOS, Novell NetWare, Linux, Windows 8, Microsoft Windows 98SE/2000/NT/XP/Vista/7 |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1.2 Gbps |
| Network / Transport Protocol | TCP/IP, PPTP, L2TP, IPSec, PPPoE, FTP, DHCP, DDNS |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK |
| Features | Firewall protection, DMZ port, SPI, dynamic DNS server, print server, MAC address filtering, IPv6 support, WDS support, IP address filtering, domain blocking, WMM support, ACL support, QoS, virtual server support, DHCP server, Samba support, static IP mode, port forwarding, UPnP Media Server, bandwidth control, IPv4 support, port triggering, dynamic IP mode, IP-MAC binding, DHCP client, DoS, DHCP reservation |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, FCC, RoHS |
| Built-in Devices | LED panel |
| Expansion / Connectivity | |

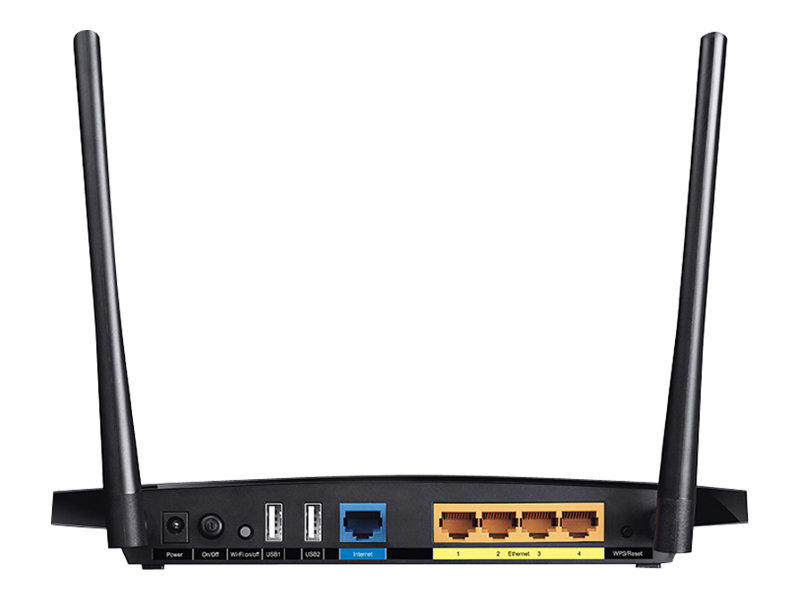

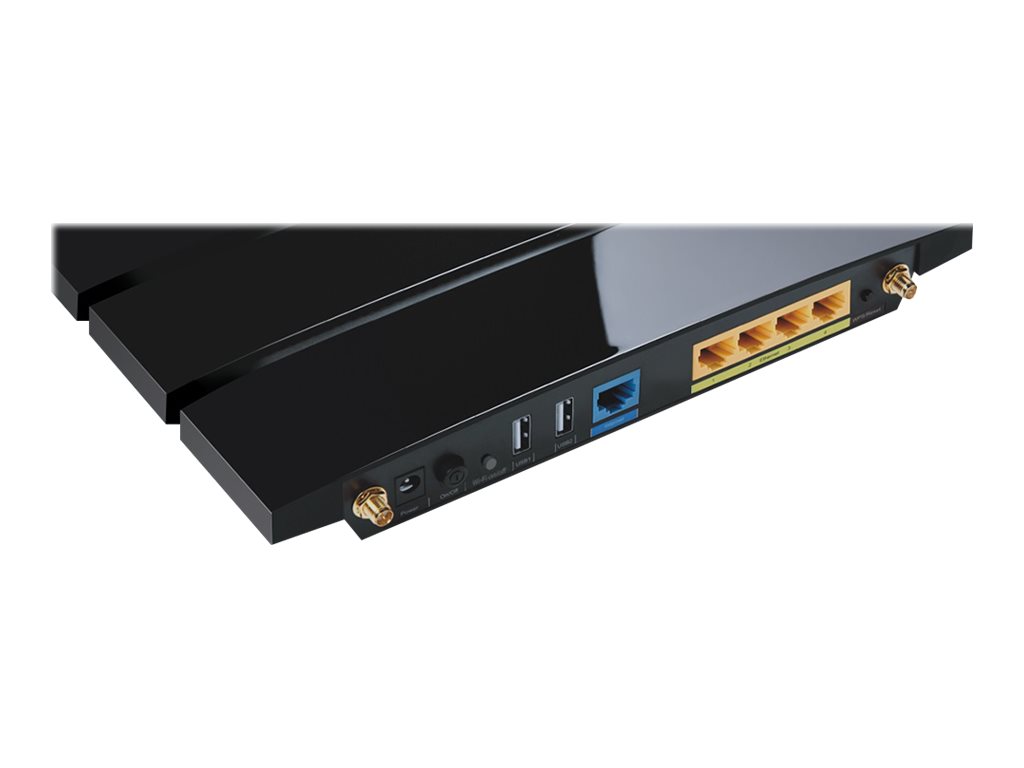

| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 2 x 4 pin USB Type A ¦ Antenna: 2 x RP-SMA |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Power | |
| Power Device | External power adapter |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Windows 8, Microsoft Windows 98SE/2000/NT/XP/Vista/7 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 9.6 in |
| Depth | 6.3 in |
| Height | 1.3 in |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
