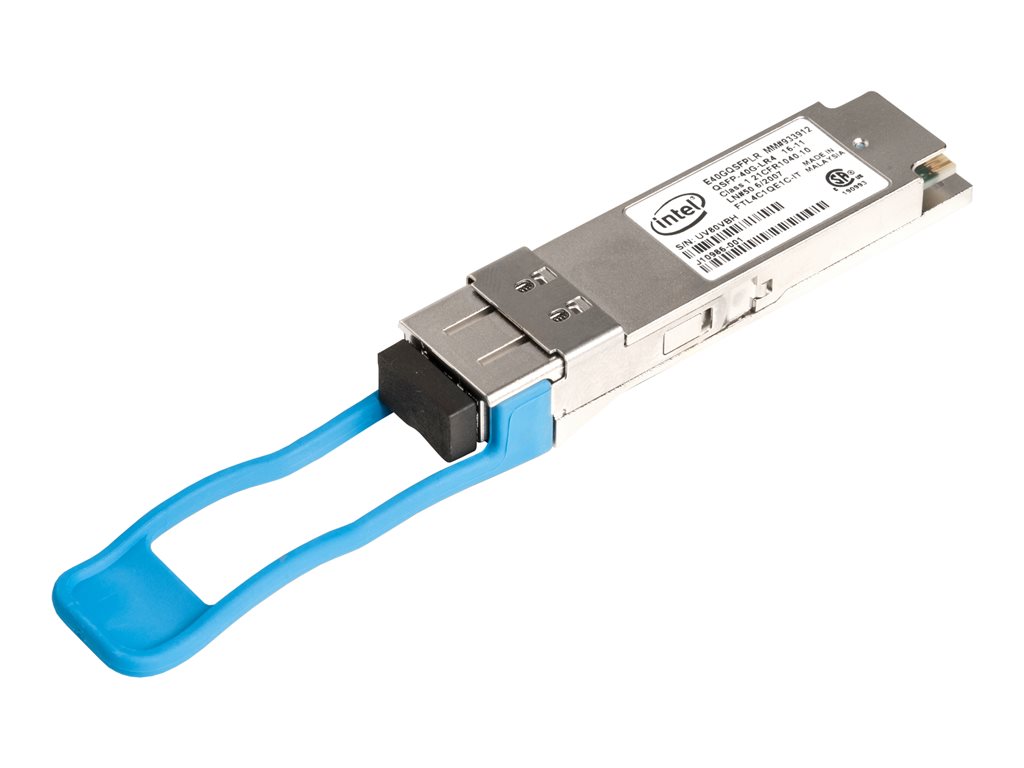

QSFP+ transceiver module - 40GbE - 40GBase-LR - MPO multi-mode - up to 6.2 miles - 1310 nm - for Ethernet Converged Network Adapter X520-QDA1
| Main Specifications | |
|---|---|
| Product Description | Intel - QSFP+ transceiver module - 40GbE |
| Device Type | QSFP+ transceiver module - MPO multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 40GBase-LR |
| Data Transfer Rate | 40 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 40GbE |
| Max Transfer Distance | 6.2 miles |
| Designed For | Ethernet Converged Network Adapter X520-QDA1 |
| General | |
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 40GBase-LR - MPO multi-mode |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 40GBase-LR |
| Data Link Protocol | 40GbE |
| Data Transfer Rate | 40 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 6.2 miles |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Compatibility Information | |
| Designed For | Intel Ethernet Converged Network Adapter X520-QDA1 |
