Sound card - 24-bit - 192 kHz - 104 dB SNR - 5.1 - USB - CM6631A
| Main Specifications | |
|---|---|
| Product Description | ASUS Xonar U5 - sound card - USB |
| Device Type | Sound card |
| Enclosure Type | External |
| Interface Type | USB |
| Dimensions (WxDxH) | 3.1 in x 5.4 in x 1 in |
| Signal Processor | CM6631A |
| Sound Output Mode | 5.1 channel surround |
| DAC Resolution | 24-bit |
| Sample Rate | 44.1 kHz (min) - 192 kHz (max) |
| Signal-To-Noise Ratio | 104 dB |
| Hardware Controls And Indicators | Volume control, output select |
| System Requirements | Apple MacOS X, Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits), Windows 8.1, Windows 10 (32/64 bits) |
| General | |
| Device Type | Sound card |
| Form Factor | External |
| Interface Type | USB |
| Width | 3.1 in |
| Depth | 5.4 in |
| Height | 1 in |
| Expansion / Connectivity | |

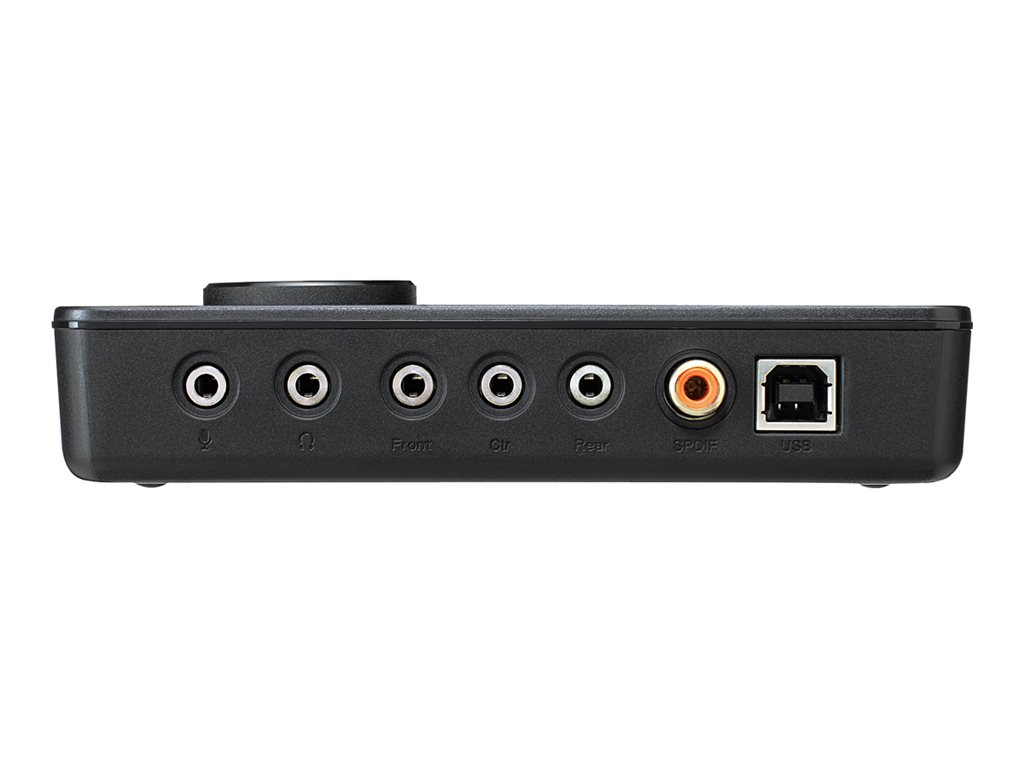

| Interfaces | 1 x USB - 4 pin USB Type B ¦ 1 x headphones - mini-phone stereo 3.5 mm ¦ 1 x speakers (center/subwoofer) - mini-phone stereo 3.5 mm ¦ 1 x speakers (front surround) - mini-phone stereo 3.5 mm ¦ 1 x speakers (rear) - mini-phone stereo 3.5 mm ¦ 1 x audio line-in/microphone - mini-phone stereo 3.5 mm ¦ 1 x SPDIF output - RCA |
| Miscellaneous | |
| Cables Included | 1 x S/PDIF optical adapter ¦ 1 x USB cable |
| Software / System Requirements | |
| Software | Drivers & Utilities, Sonic Studio |
| OS Required | Apple MacOS X, Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits), Windows 8.1, Windows 10 (32/64 bits) |
| Audio Output | |
| Sound Output Mode | 5.1 channel surround |
| DAC Resolution | 24-bit |
| Sample Rate | 44.1 kHz (min) - 192 kHz (max) |
| Signal-To-Noise Ratio | 104 dB |
| Frequency Response | 10 - 44000 Hz |
| Hardware Controls And Indicators | Volume control, output select |
| Features | Headphone Amplifier, Perfect Voice |
| Compliant Standards | ASIO |
| Processor / Memory | |
| Signal Processor | CM6631A |
