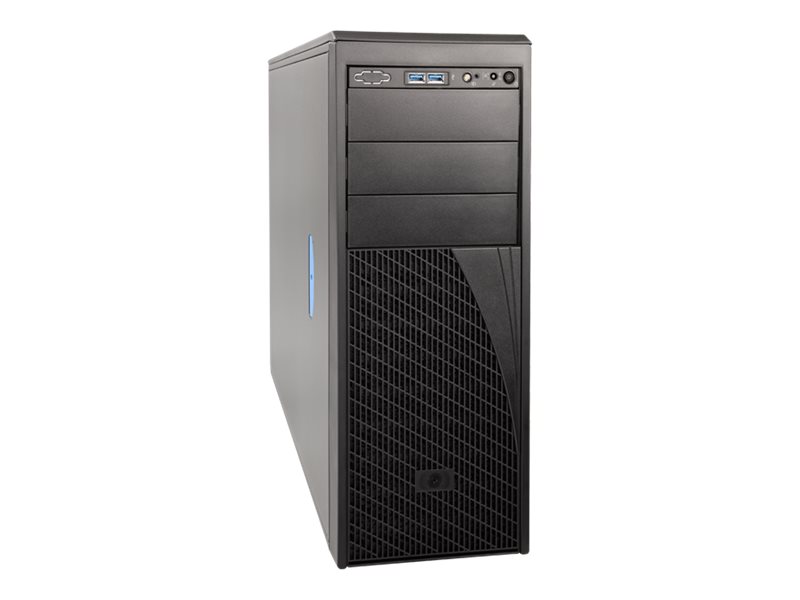

Tower 4U - SSI EEB 550 Watt - cosmetic black - USB
| Main Specifications | |
|---|---|
| Product Description | Intel Server Chassis P4304XXMFEN2 - tower - 4U - SSI EEB |
| Product Type | System cabinet |
| Form Factor | Tower - 4U |
| Color | Cosmetic black |
| I/O Connectors | 2 x USB 3.0 |
| Supported Motherboards | SSI EEB |
| System Cabinet Features | Chassis intrusion detection, padlock loop, Kensington lock support |
| Power Device | Power supply 550 watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Motherboard Power Connectors | 24(20) pin power connector with detachable 4 pin section |
| Dimensions (WxDxH) | 6.8 in x 24.1 in x 17.2 in |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Form Factor | Tower - 4U |
| Max Mainboard Size | SSI EEB |
| Supported Motherboards | SSI EEB |
| Motherboard Power Connectors | 24(20) pin power connector with detachable 4 pin section |
| Front Accessible Bays Qty | 7 |
| Color | Cosmetic black |
| Cooling System | Internal: 120 x 120 x 38 mm fan x 2 / Pulse-width modulation (PWM) support |
| System Cabinet Features | Chassis intrusion detection, padlock loop, Kensington lock support |
| Expansion / Connectivity | |
| Expansion Bays | 3 (total) / 3 (free) x front accessible - 5.25" x 1/2H ¦ 4 (total) / 4 (free) x front accessible - 2.5" / 3.5" shared |
| Expansion Slots | 6 x full-length, full-height |
| Interfaces | 2 x USB 3.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | SATA cable, air duct, 2 x EMI covers |
| Power | |
| Power Device | Power supply |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 550 watt |
| Power Supply Features | Overvoltage protection, overcurrent protection, overtemperature protection |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Dimensions & Weight | |
| Width | 6.8 in |
| Depth | 24.1 in |
| Height | 17.2 in |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
