Hard drive array - 2 bays (SATA-600) - USB 3.0, SATA 6Gb/s (external) - for P/N: SVA12M5NA, TB3DK2DHV, TB3DK2DHVUE, TB3DK2DPPD, TB3DK2DPPDUE, TB3DKDPMAW, TB3DKDPMAWUE
| Main Specifications | |
|---|---|

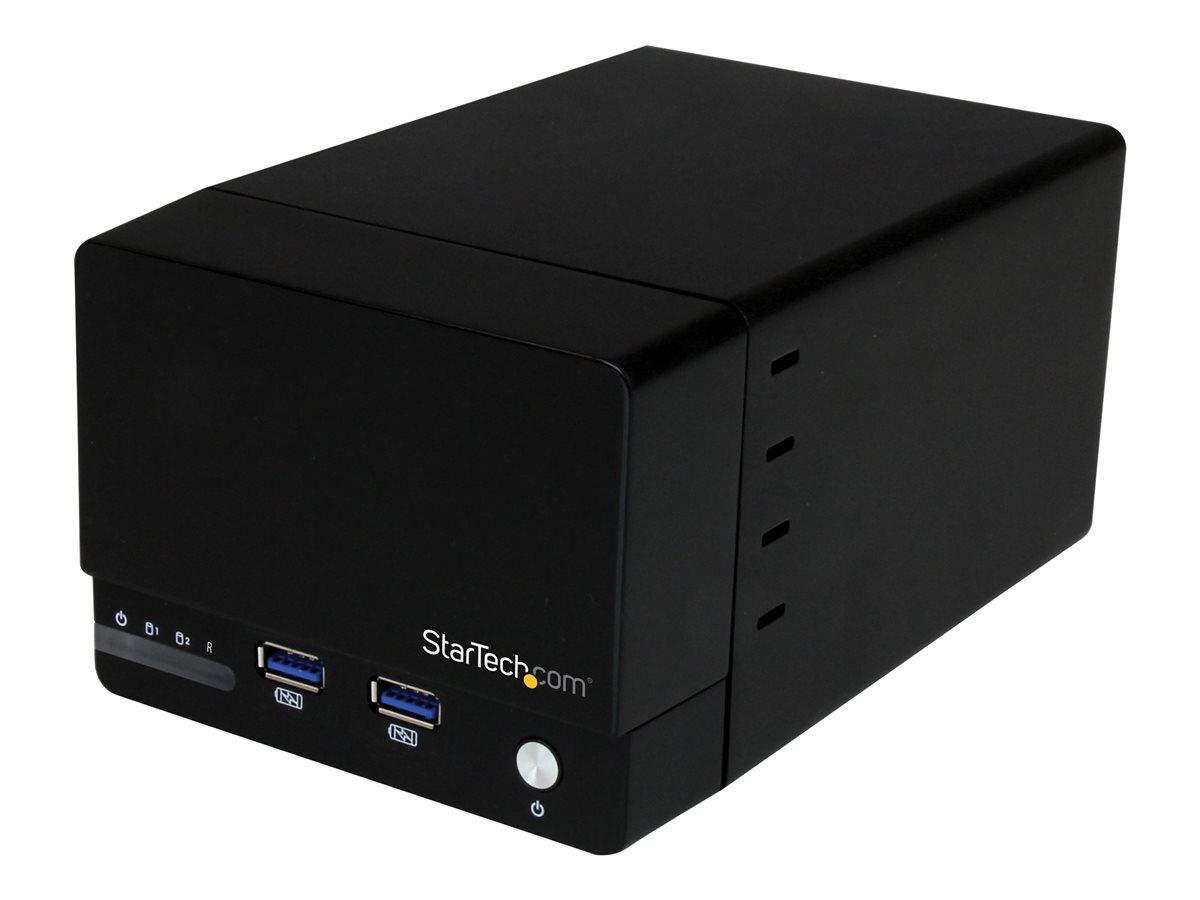

| Product Description | StarTech Dual 3.5" SATA HDD RAID Enclosure w/ USB Hub & UASP - hard drive array |
| Device Type | Hard drive array |
| Color | Black |
| Max Supported Capacity | 6 TB |
| Interface | USB 3.0, SATA 6Gb/s |
| Installed Devices / Modules Qty | 0 (installed) / 2 (max) |
| Supported Drives | SATA-600 |
| Built-in Devices | LED panel |
| Storage Controller | RAID (SATA 6Gb/s) - RAID 0, 1, JBOD, BIG |
| OS Required | Linux, Microsoft Windows 2000, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Google Chrome OS, Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Apple OS X 10.9 Mavericks, Microsoft Windows XP / 7 / 8 / 8.1 (32/64 bits) |
| Power | AC 120/230 V - 50 - 60 Hz |
| Dimensions (WxDxH) | 4.5 in x 7.2 in x 3.7 in |
| Weight | 26.14 oz |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: PEXUSB3S3GE, SVA12M5NA, TB2DOCK4K2DP, TB3DK2DHV, TB3DK2DHVUE, TB3DK2DPPD, TB3DK2DPPDUE, TB3DK2DPW, TB3DK2DPWUE, TB3DKDPMAW, TB3DKDPMAWUE, USB3DOCKHDPC, USB3VDOCK4DP |
| General | |
| Device Type | Hard drive array |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x internal - 3.5" x 1/3H |
| Interfaces | 2 x SATA 6Gb/s - 22 pin Serial ATA ¦ 2 x USB 3.0 - 9 pin USB Type A ¦ 1 x USB 3.0 - 9 pin USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

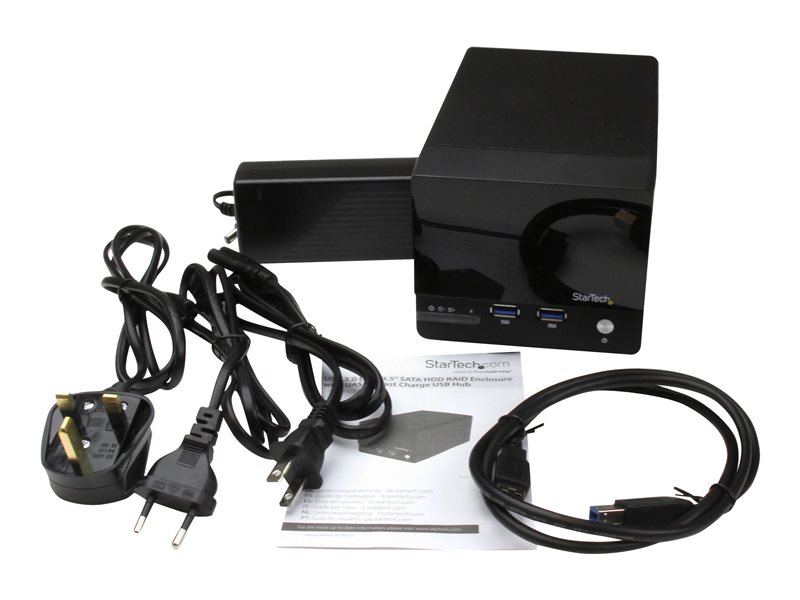

| Cables Included | 1 x USB 3.0 cable |
| Compliant Standards | FCC, RoHS |
| Processor | |
| CPU | JMS562 |
| Storage | |
| Max Supported Capacity | 6 TB |
| HDD Array External Interface | USB 3.0, SATA 6Gb/s |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V - 50 - 60 Hz |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% |
| Storage Controller | |
| Type | RAID (SATA 6Gb/s) |
| Interface Type | SATA 6Gb/s |
| Data Transfer Rate | 6 GBps |
| Max Storage Devices Qty | 2 |

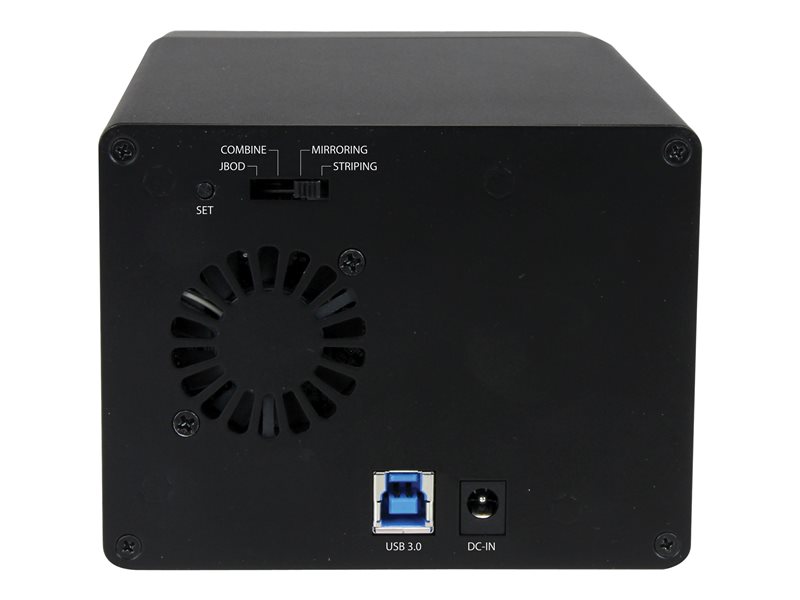

| RAID Level | RAID 0, RAID 1, JBOD, BIG |
| System Requirements | |
| OS Required | Linux, Microsoft Windows 2000, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Google Chrome OS, Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Apple OS X 10.9 Mavericks, Microsoft Windows XP / 7 / 8 / 8.1 (32/64 bits) |
| Dimensions & Weight | |
| Width | 4.5 in |
| Depth | 7.2 in |
| Height | 3.7 in |
| Weight | 26.14 oz |
| Compatibility Information | |
| Designed For | P/N: PEXUSB3S3GE, SVA12M5NA, TB2DOCK4K2DP, TB3DK2DHV, TB3DK2DHVUE, TB3DK2DPPD, TB3DK2DPPDUE, TB3DK2DPW, TB3DK2DPWUE, TB3DKDPMAW, TB3DKDPMAWUE, USB3DOCKHDPC, USB3VDOCK4DP |
| Chassis | |
| Built-in Devices | LED panel |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 2 |
| Supported Drives | SATA-600 |
