Server - rack-mountable 4U - 2-way - no CPU - RAM 0 GB - SATA - hot-swap 2.5", 3.5" bay(s) - no HDD - AST2400 - Gigabit Ethernet - no OS - monitor: none
| Main Specifications | |
|---|---|

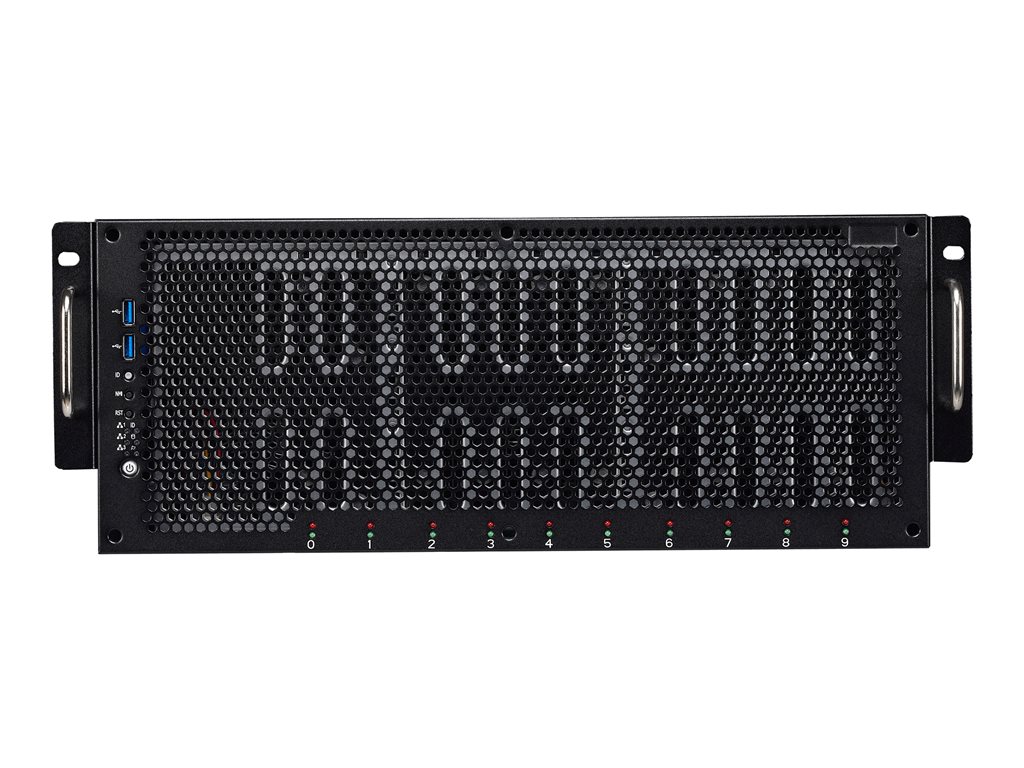

| Product Description | Tyan FT77C-B7079 - rack-mountable no CPU - 0 GB - no HDD |
| Type | Server - rack-mountable - overheat protection, voltage monitoring, built-in 6 cooling fans, hot-swappable fans, watchdog timer, temperature monitoring |
| Height (Rack Units) | 4U |
| Server Scalability | 2-way |
| Processor | No CPU |
| Processor Socket | LGA2011 Socket |
| RAM | 0 GB (installed) / 3072 GB (max) - DDR4 SDRAM - ECC |
| Storage Controller | RAID (SATA 6Gb/s) |
| Server Storage Bays | Hot-swap 2.5", 3.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2400 |
| Networking | 1GbE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 17.2 in x 30.3 in x 6.9 in |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 4U |
| Built-in Devices | LED panel |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 10 |
| Expansion / Connectivity | |
| Bays | 10 (total) / 10 (free) x hot-swap 2.5" / 3.5" shared |
| Slots | 2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 288-pin ¦ 8 PCIe 3.0 x16 ¦ 1 PCIe 3.0 x8 ¦ 1 Mezzanine card ¦ 3 PCIe 2.0 x1 |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort ¦ 2 x USB 3.0 (2 in front) ¦ 1 x VGA (with adapter) |
| Miscellaneous | |
| Included Accessories | Air duct, 8 x NVIDIA Tesla GPU card brackets |
| Cables Included | DisplayPort / USB cable |
| Features | Overheat protection, voltage monitoring, built-in 6 cooling fans, hot-swappable fans, watchdog timer, temperature monitoring |
| Compliant Standards | FCC Class A certified, RoHS, ACPI 3.0 |
| RAM | |
| Installed Size | 0 GB (installed) / 3072 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 24 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM) |
| RAM Supported | 768 GB registered - ECC ¦ 3072 GB Load-Reduced - ECC |
| Networking | |
| Type | Integrated |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I350-BT2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Aspeed AST2400 |
| Features | Wake on LAN (WoL), ACPI support, PXE support |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | N+1 |
| Installed Qty | 3 |
| Max Supported Qty | 3 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 3200 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Storage Controller | |
| Type | RAID - integrated |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 10 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | ASPEED AST2400 |
| Video Interfaces | DisplayPort |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 30.3 in |
| Height | 6.9 in |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA2011 Socket |
| Chipset Type | Intel C612 |
