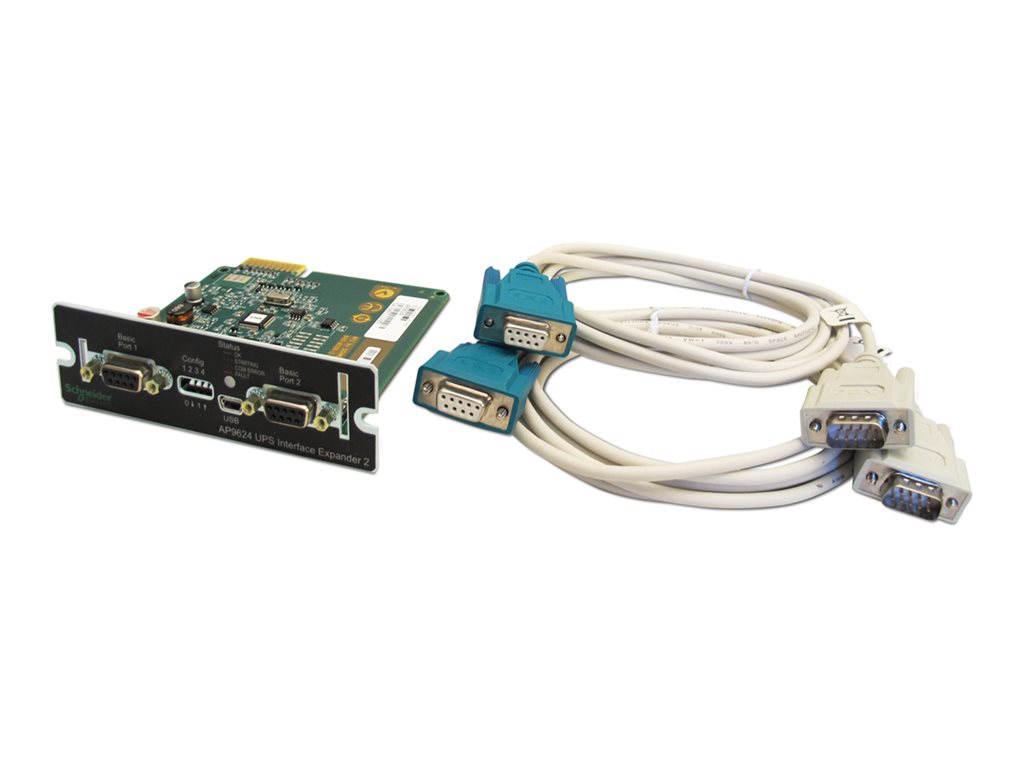

Remote management adapter - SmartSlot - RS-232 x 2
| Main Specifications | |
|---|---|
| Product Description | Schneider AP9624 UPS Interface Expander 2 - remote management adapter - SmartSlot - RS-232 x 2 |
| Device Type | Remote management adapter |
| Form Factor | Plug-in module |
| Interface (Bus) Type | SmartSlot |
| Ports | RS-232 x 2 |
| Dimensions (WxDxH) | 4.8 in x 4.5 in x 1.5 in |
| Weight | 2.47 oz |
| Data Link Protocol | RS-232 |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Remote management adapter |
| Form Factor | Plug-in module |
| Interface (Bus) Type | SmartSlot |
| Expansion / Connectivity | |
| Interfaces | 2 x management - 9 pin D-Sub (DB-9) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 2 x serial cable (external) |
| Compliant Standards | C-Tick, EN55022 Class A, EN55024, FCC Part 15 A, IC, IEC 62040-2, China RoHS, REACH, RoHS |
| Networking | |
| Ports | RS-232 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Features | Firmware upgradable |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Dimensions & Weight | |
| Width | 4.8 in |
| Depth | 4.5 in |
| Height | 1.5 in |
| Weight | 2.47 oz |
