Wireless router 4-port switch - 1GbE Dual Band - wall-mountable
| Main Specifications | |
|---|---|

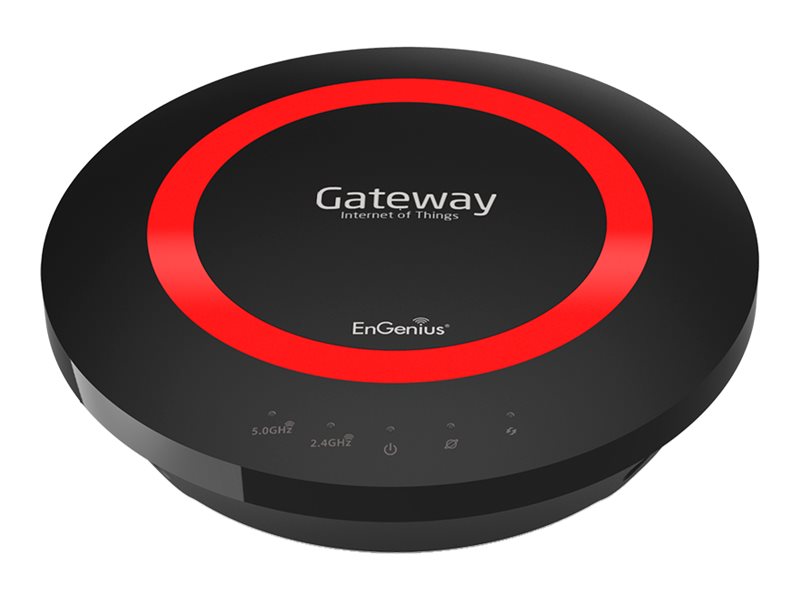

| Product Description | EnGenius IoT Intelligent Cloud Gateway EPG5000 - wireless router - Wi-Fi 5 - desktop, wall-mountable |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop, wall-mountable |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, DHCP |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP |
| Features | NAT support, SPI, MAC address filtering, IPv6 support, VPN passthrough, WDS support, IP address filtering, firmware upgradable, WMM support, QoS, WPS, DHCP server, Samba support, Multiple SSID support, hidden SSID, port forwarding, reset button, port triggering, DHCP client, VPN Server, DoS |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac |
| Dimensions (WxDxH) | 6.4 in x 6.4 in x 1.6 in |
| Weight | 8.01 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop, wall-mountable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, DHCP |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP |
| Encryption Algorithm | AES, TKIP, WPA-PSK, WPA2-PSK, WEP |
| Features | NAT support, SPI, MAC address filtering, IPv6 support, VPN passthrough, WDS support, IP address filtering, firmware upgradable, WMM support, QoS, WPS, DHCP server, Samba support, Multiple SSID support, hidden SSID, port forwarding, reset button, port triggering, DHCP client, VPN Server, DoS |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac, IC, FCC |
| Status Indicators | Power, WLAN, WAN, WPS |
| Expansion / Connectivity | |
| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB: 1 x 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Power | |
| Power Device | External power adapter - 12 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Dimensions & Weight | |
| Width | 6.4 in |
| Depth | 6.4 in |
| Height | 1.6 in |
| Weight | 8.01 oz |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 6 |
