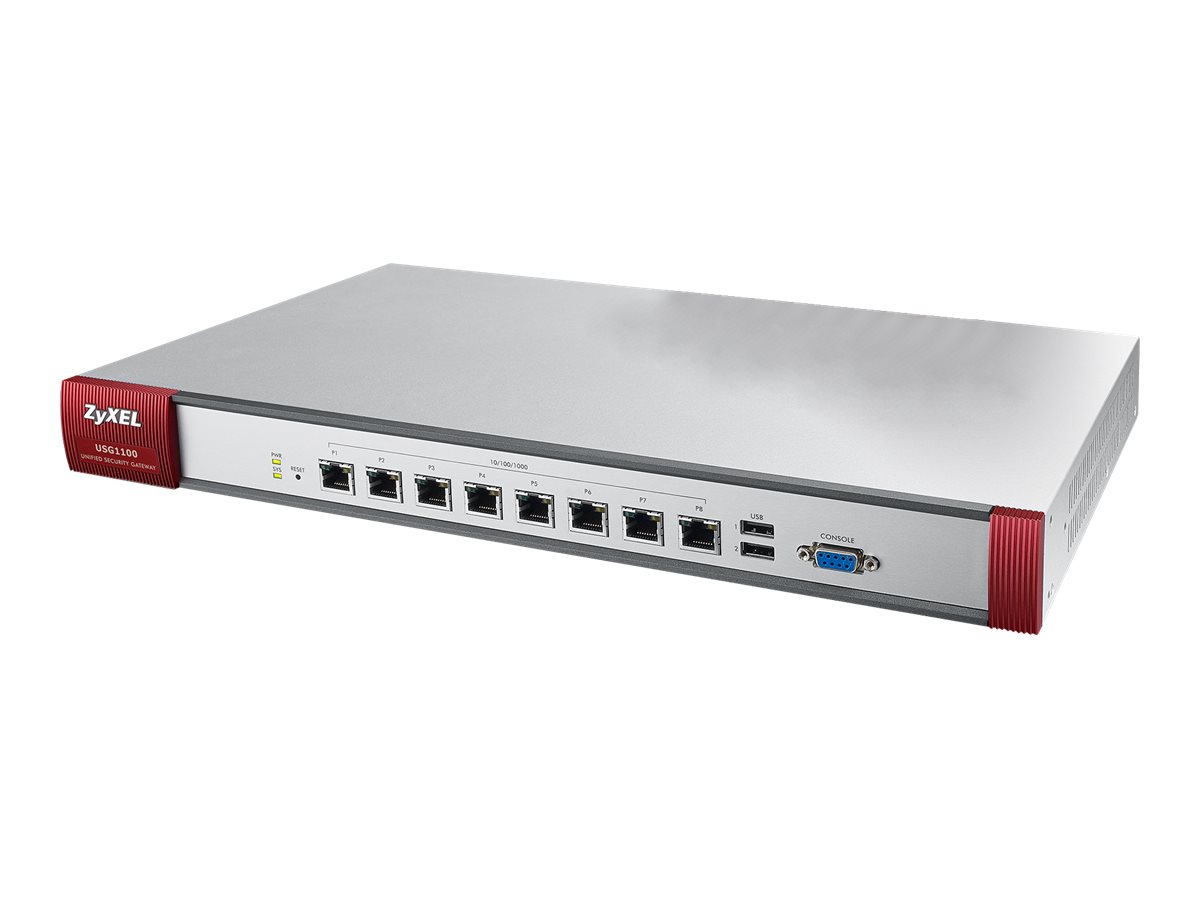

Security appliance - 55 SSL VPN users - 1GbE - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Zyxel USG1100 - security appliance |
| Device Type | Security appliance |
| License Qty | 55 SSL VPN users |
| Form Factor | Rack-mountable |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Firewall throughput: 6 Gbps ¦ VPN throughput: 800 Mbps ¦ Intrusion detection and prevention throughput: 550 Mbps ¦ Antivirus throughput: 500 Mbps ¦ Unified Threat Management (UTM) throughput: 500 Mbps |
| Capacity | User licenses: unlimited ¦ Concurrent IPSec VPN tunnels: 1000 ¦ Concurrent sessions: 300000 ¦ Concurrent SSL VPN users: 255 ¦ Virtual interfaces (VLANs): 128 ¦ New sessions: 12000 ¦ Manageable access points: 2 (maximum 18) |
| Dimensions (WxDxH) | 16.9 in x 9.8 in x 1.7 in |
| Weight | 7.28 lbs |
| General | |
| Device Type | Security appliance |
| Width | 16.9 in |
| Depth | 9.8 in |
| Height | 1.7 in |
| Weight | 7.28 lbs |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T - RJ-45 ¦ 2 x USB - Type A ¦ 1 x console - DB-9 |
| Miscellaneous | |
| MTBF | 560,811.5 hours |
| Compliant Standards | BSMI, C-Tick Class A, EMC Class A, EN 60950-1, FCC Part 15 A, LVD |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPSec, L2TP, DHCP, PPPoE, SMTP, POP3, IMAP4 |
| Routing Protocol | GRE, RIP-1, RIP-2, OSPF |
| Remote Management Protocol | HTTP, SNMP 2c, Telnet, HTTPS, SSH |
| Performance | Firewall throughput: 6 Gbps ¦ VPN throughput: 800 Mbps ¦ Intrusion detection and prevention throughput: 550 Mbps ¦ Antivirus throughput: 500 Mbps ¦ Unified Threat Management (UTM) throughput: 500 Mbps |
| Capacity | User licenses: unlimited ¦ Concurrent IPSec VPN tunnels: 1000 ¦ Concurrent sessions: 300000 ¦ Concurrent SSL VPN users: 255 ¦ Virtual interfaces (VLANs): 128 ¦ New sessions: 12000 ¦ Manageable access points: 2 (maximum 18) |
| Status Indicators | Port status, power, system |
| Features | IPv6 support, antivirus analysis, firewall protection, anti-spam protection, content filtering, Intrusion Detection and Prevention (IDP), DMZ port, routing, ALG support, DDos attack prevention, DoS attack prevention, IPv4 support, stackable, tunneling, VLAN support, IPSec Virtual Private Network (VPN), static routing, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), VPN concentrator, VPN failover, VPN load-balancing, VPN auto-reconnection, Generic Routing Encapsulation (GRE), NAT support, tagged VLAN, PAT support, SNAT support, DHCP client, DHCP relay, DHCP server, dynamic DNS server, Captive Portal, Quality of Service (QoS), Wi-Fi Multimedia (WMM) support, CAPWAP support, Single Sign-On (SSO) support, dual firmware images, E-mail alert, firmware upgradable, Syslog support, load balancing, LDAP support, VPN support, DHCP support, manageable, High Availability, SSH support, IP-MAC binding, Access Control List (ACL) support, 3G USB Dongle Support |
| Encryption Algorithm | SSL, DES, Triple DES, 256-bit AES, 512-bit SHA-2, IKE, IKEv2, MD5, SHA-1, PKI |
| Authentication Method | Extensible Authentication Protocol (EAP), RADIUS, Active Directory, LDAP, XAUTH authentication, Secure Shell (SSH), X.509 certificates |
| Compliant Standards | IEEE 802.1Q, X.509 |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 58.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
