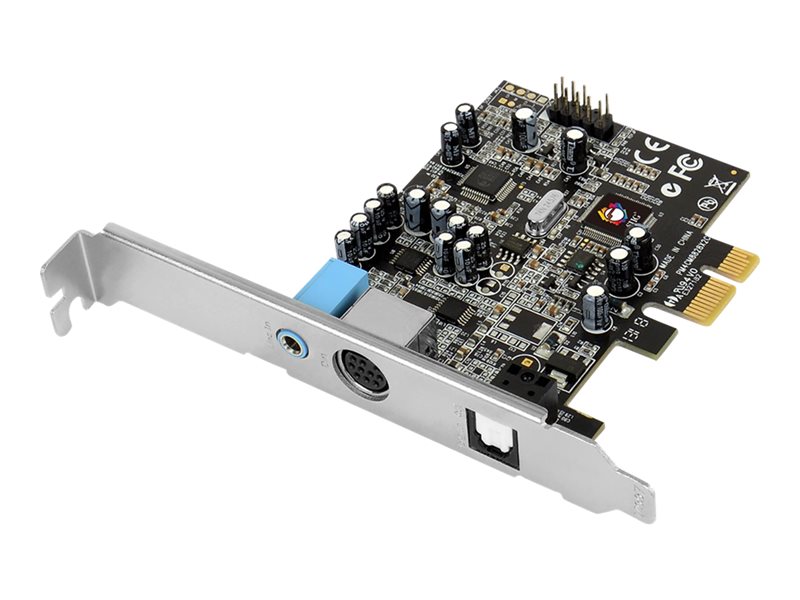

Sound card - 24-bit - 96 kHz - 5.1 - PCIe 1.1 - CM9862A+CM8826
| Main Specifications | |
|---|---|
| Product Description | SIIG DP SoundWave sound card - PCI Express 1.1 x1 |
| Device Type | Sound card |
| Enclosure Type | Internal |
| Interface Type | PCI Express 1.1 x1 |
| Dimensions (WxDxH) | 0.8 in x 4.7 in x 3.9 in |
| Weight | 1.76 oz |
| Signal Processor | CM9862A+CM8826 |
| Sound Output Mode | 5.1 channel surround |
| DAC Resolution | 24-bit |
| Sample Rate | 44.1 kHz (min) - 96 kHz (max) |
| System Requirements | Microsoft Windows Vista / XP / 7 / 8 / 8.1, Microsoft Windows Vista / XP / 7 / 8 / 8.1 (64-bit versions) |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Sound card |
| Form Factor | Internal |
| Interface Type | PCI Express 1.1 x1 |
| Width | 0.8 in |
| Depth | 4.7 in |
| Height | 3.9 in |
| Weight | 1.76 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x SPDIF input - TOSLINK ¦ On supplied cable: 1 x microphone - mini-phone 3.5 mm ¦ On supplied cable: 1 x speakers (front surround) - mini-phone 3.5 mm ¦ On supplied cable: 1 x speakers (center/subwoofer) - mini-phone 3.5 mm ¦ On supplied cable: 1 x speakers (back surround) - mini-phone 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Compliant Standards | C-Tick, FCC, RoHS |
| Software / System Requirements | |
| Software | Drivers & Utilities |
| OS Required | Microsoft Windows Vista / XP / 7 / 8 / 8.1, Microsoft Windows Vista / XP / 7 / 8 / 8.1 (64-bit versions) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| Audio Output | |
| Sound Output Mode | 5.1 channel surround |
| DAC Resolution | 24-bit |
| Sample Rate | 44.1 kHz (min) - 96 kHz (max) |
| Compliant Standards | Dolby Digital EX, Digital Theater Systems Extended Surround (DTS-ES), High Definition Audio |
| Processor / Memory | |
| Signal Processor | CM9862A+CM8826 |
