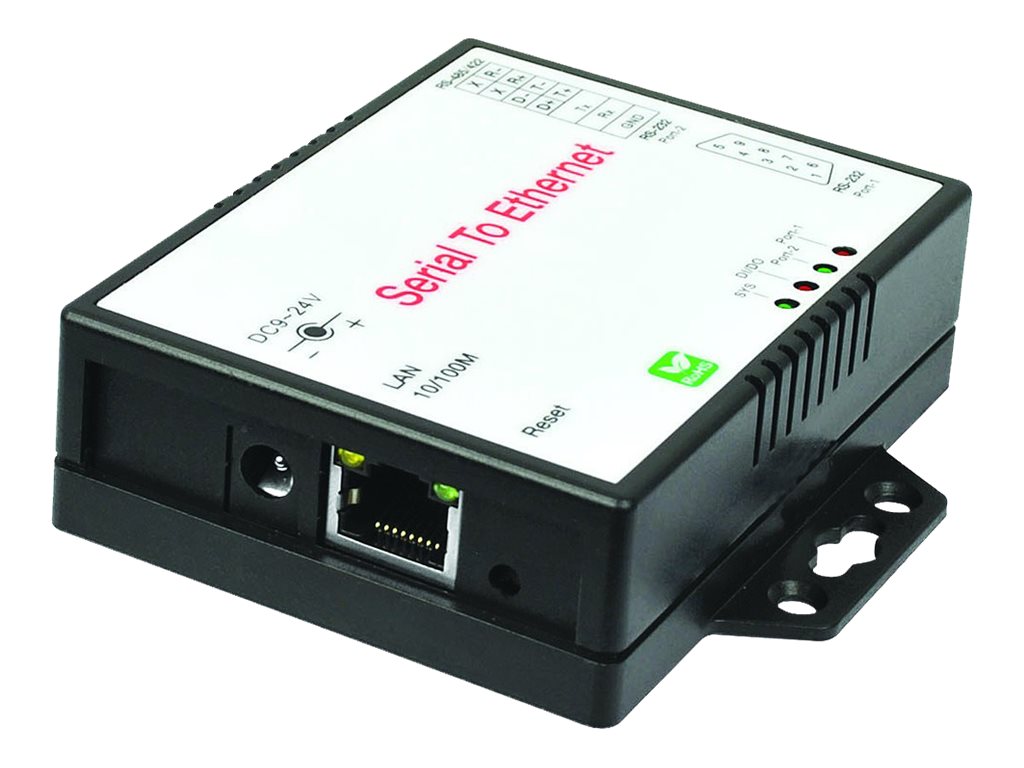

Device server - 2 ports - 100Mb LAN, RS-232, RS-422, RS-485
| Main Specifications | |
|---|---|
| Product Description | SIIG Serial over IP - device server |
| Device Type | Device server |
| Form Factor | External |
| Processor | ARM Cortex-M3 50 MHz |
| RAM | 64 KB |
| Flash Memory | 256 KB |
| Ports Qty | 2 |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits) |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Device server |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Base-TX - RJ-45 ¦ 1 x RS-232 - DB-9 ¦ 1 x RS-232/422/485 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Form Factor | External |
| Ports Qty | 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, ARP, DHCP |
| Remote Management Protocol | Telnet, HTTP |
| Features | Auto-uplink (auto MDI/MDI-X), 1.5 KV Magnetic Isolation, 15KV ESD Protector |
| Power | |
| Power Device | External power adapter |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | ARM Cortex-M3 50 MHz |
| RAM | 64 KB |
| Flash Memory | 256 KB |
