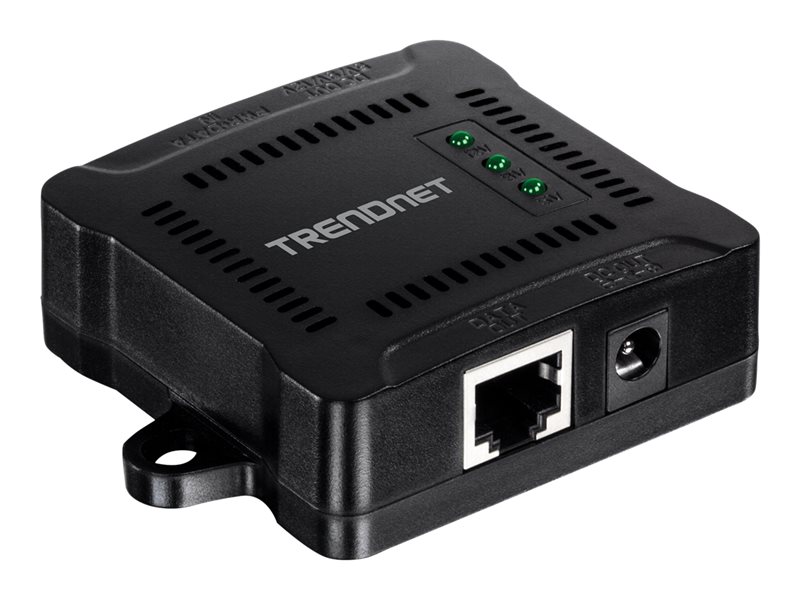

PoE splitter - 48 V - output connectors: 1
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TPE-104GS - PoE splitter |
| Device Type | PoE splitter - external |
| Weight | 2.12 oz |
| Input Voltage | 48 V |
| Output Voltage | 5 / 7.5 / 9 / 12 V |
| Input Connectors | 1 x RJ-45 |
| Output connectors | 1 x power DC jack 5.5 mm (ID: 2 mm) |
| Dimensions (WxDxH) | 2.8 in x 1.8 in x 1 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | PoE splitter - external |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable - external ¦ Power converter cable - external |
| Features | Wall mountable, LED indicators |
| Compliant Standards | FCC, RoHS, WEEE |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Power Device | |
| Input Voltage | 48 V |
| Input Connectors | 1 x RJ-45 |
| Power Consumption Operational | 0.3 Watt |
| Power Output Connectors Details | 1 x power DC jack 5.5 mm (ID: 2 mm) |
| Output Voltage | 5 / 7.5 / 9 / 12 V |
| Max Electric Current | 0.38 A |
| Dimensions & Weight | |
| Width | 2.8 in |
| Depth | 1.8 in |
| Height | 1 in |
| Weight | 2.12 oz |
