Switch - managed - desktop, rack-mountable - AC 90 - 264 V - TAA Compliant
| Main Specifications | |
|---|---|

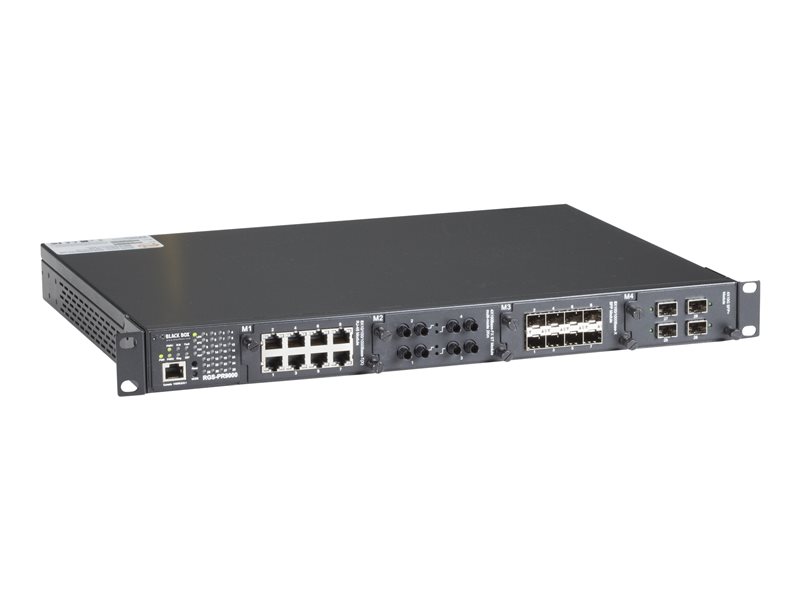

| Product Description | Black Box LE2700 Series Hardened Managed Modular Switch Chassis - switch - managed - rack-mountable - TAA Compliant |
| Device Type | Switch - managed |
| Enclosure Type | Rack-mountable 1U |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9.6KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 3, HTTPS, SSH, CLI |
| Features | VLAN support, store and forward, MAC address filtering, STP support, RSTP support, MSTP support, QoS, DHCP server, DNS proxy, reset button, LLDP support, DHCP relay, DHCP client, MAC address lockout, CoS, tagged VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3az, IEEE 1588v2 |
| Power | AC 90 - 264 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 12.8 in x 1.7 in |
| Weight | 14.55 lbs |
| Localization | United States |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Switch - managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9.6KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 3, HTTPS, SSH, CLI |
| Encryption Algorithm | MODBUS |
| Authentication Method | TACACS+ |
| Features | VLAN support, store and forward, MAC address filtering, STP support, RSTP support, MSTP support, QoS, DHCP server, DNS proxy, reset button, LLDP support, DHCP relay, DHCP client, MAC address lockout, CoS, tagged VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3az, IEEE 1588v2 |
| Status Indicators | Port status, power, link/activity |
| Expansion / Connectivity | |
| Interfaces | 1 x serial (RS-232) RJ-45 |
| Expansion Slots | 4 (total) / 4 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 4 (max) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | EN55022, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, EN 55011, CISPR, EN50155, EN 50121-4, EN 50121-3-2 |
| TAA Compliant | Yes |
| Localization | United States |
| Power | |
| Power Device | External power adapter |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 90 - 264 V |
| Power Consumption Operational | 43.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 12.8 in |
| Height | 1.7 in |
| Weight | 14.55 lbs |
