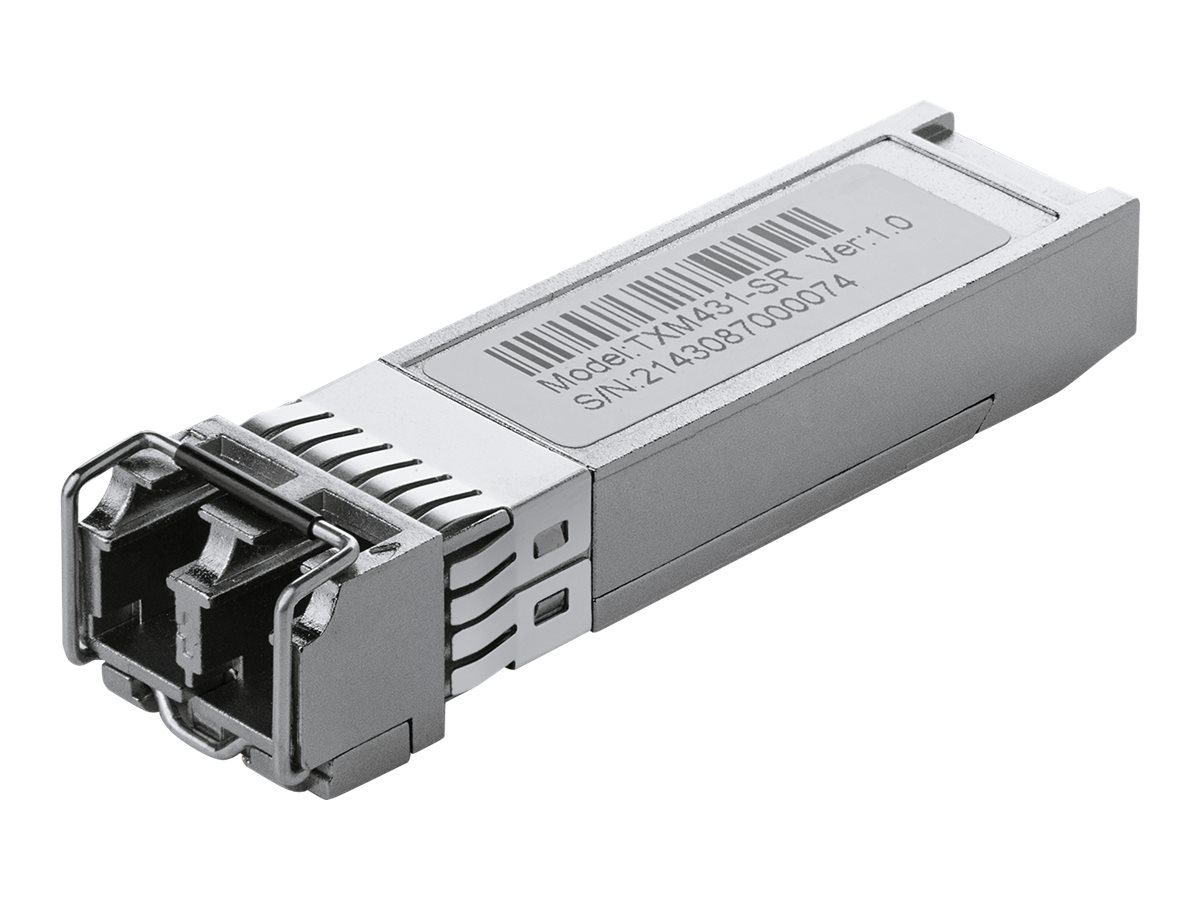

SFP+ transceiver module - 10GbE - 10GBase-SR - LC multi-mode - up to 984 ft - 850 nm
| Main Specifications | |
|---|---|
| Product Description | TP-Link TXM431-SR - SFP+ transceiver module - 10GbE |
| Device Type | SFP+ transceiver module - LC multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-SR |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 984 ft |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-SR - LC multi-mode female x 2 |
| Miscellaneous | |
| Compliant Standards | FCC |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-SR |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 984 ft |
| Features | Full duplex capability |
| Compliant Standards | IEEE 802.3ae |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
