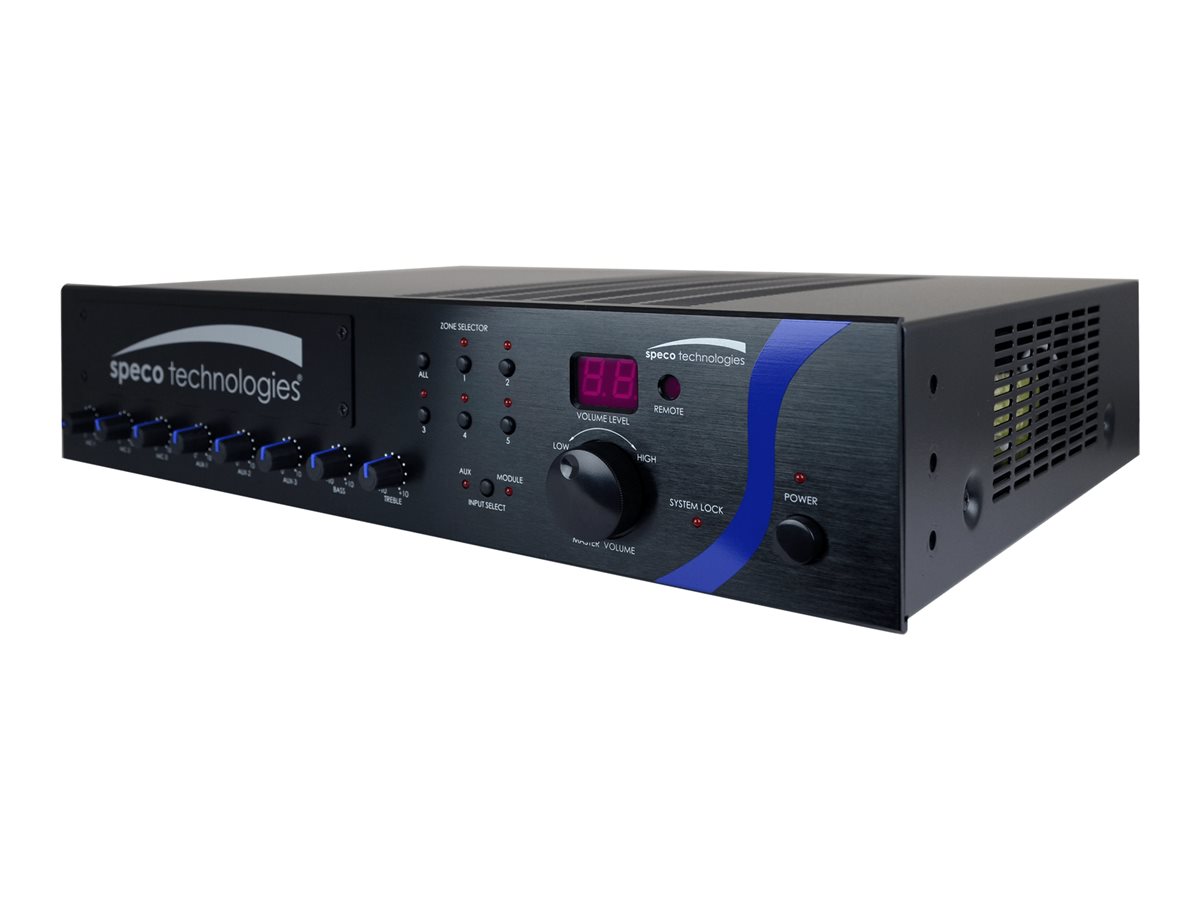

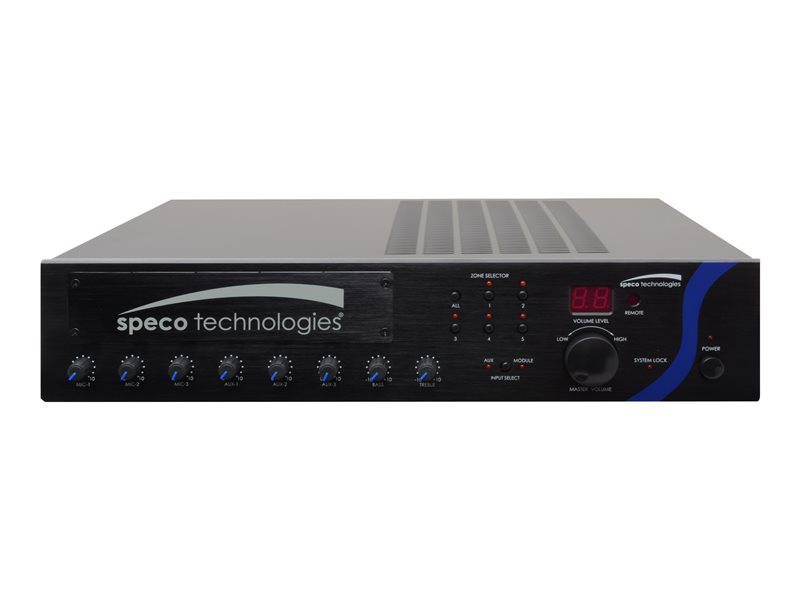

Mixer amplifier - powered - 120 Watt - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Speco PBM-A PBM120A mixer amplifier |
| Type | Mixer amplifier - powered - rack-mountable |
| Frequency Response | 50 Hz - 20 kHz |
| Output Power / Total | 120 Watt |
| Mic Channels | 3 mono |
| Line Channels | 3 stereo |
| Dimensions (WxDxH) | 16.9 in - 11.7 in - 3.4 in |
| Weight | 26.46 lbs |
| General | |
| Type | Mixer amplifier |
| Miscellaneous | |
| Included Accessories | Rack mounting kit, remote control |
| Power | |
| Voltage Required | AC 115 V |
| Frequency | 60 Hz |
| Power Consumption | 200 Watt |
| Connections | |

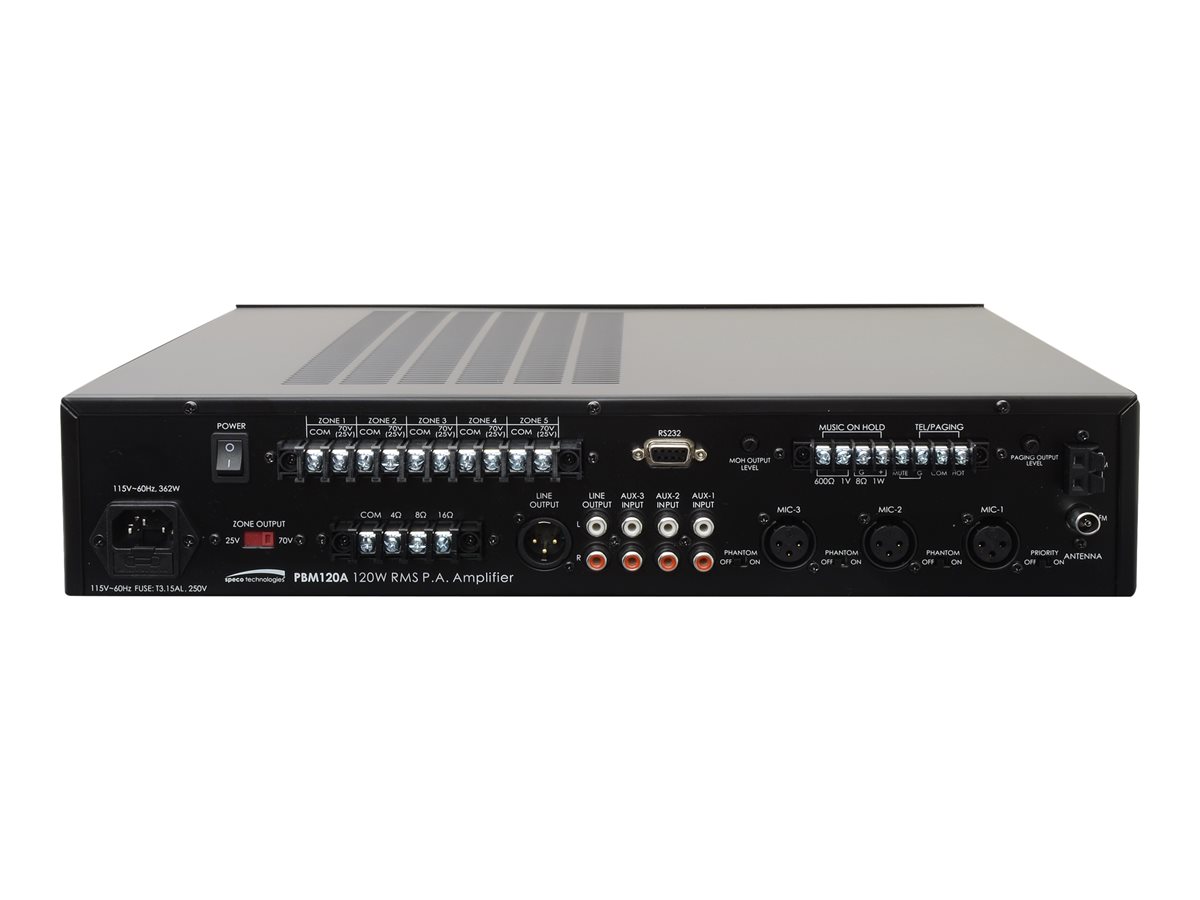

| Connector Type | 3 x microphone (XLR) - rear ¦ 3 x audio line-in (RCA x 2) - rear ¦ 1 x audio line-out (RCA x 2) - rear ¦ 1 x balanced audio output (XLR) - rear ¦ Music on hold (screw-type) - rear ¦ Telephone / paging input (screw-type) - rear ¦ 5 x speakers output (multi zone) (screw-type) - rear ¦ Speaker output (screw-type) - rear ¦ 1 x RS-232 (9 pin D-Sub) - rear |
| Dimensions & Weight | |
| Width | 16.9 in |
| Depth | 11.7 in |
| Height | 3.4 in |
| Weight | 26.46 lbs |
| Mixer | |
| Rack Mount | Rack-mountable |
| Frequency Response | 50 Hz - 20 kHz |
| Powered | Powered |
| Control Types | Knobs |
| Features | 25V/70V or 4/8/16 Ohm operation |
| Channel Description | |
| Mic Channels | 3 mono |
| Mic Channels Connector | XLR |
| Line Channels | 3 stereo |
| Line Channels Connector | RCA x 2 |
| Mixer Amplifier | |
| Output Power / Total | 120 Watt |
