Network management device - 100Mb LAN, RS-232, RS-422, RS-485 - 1U
| Main Specifications | |
|---|---|

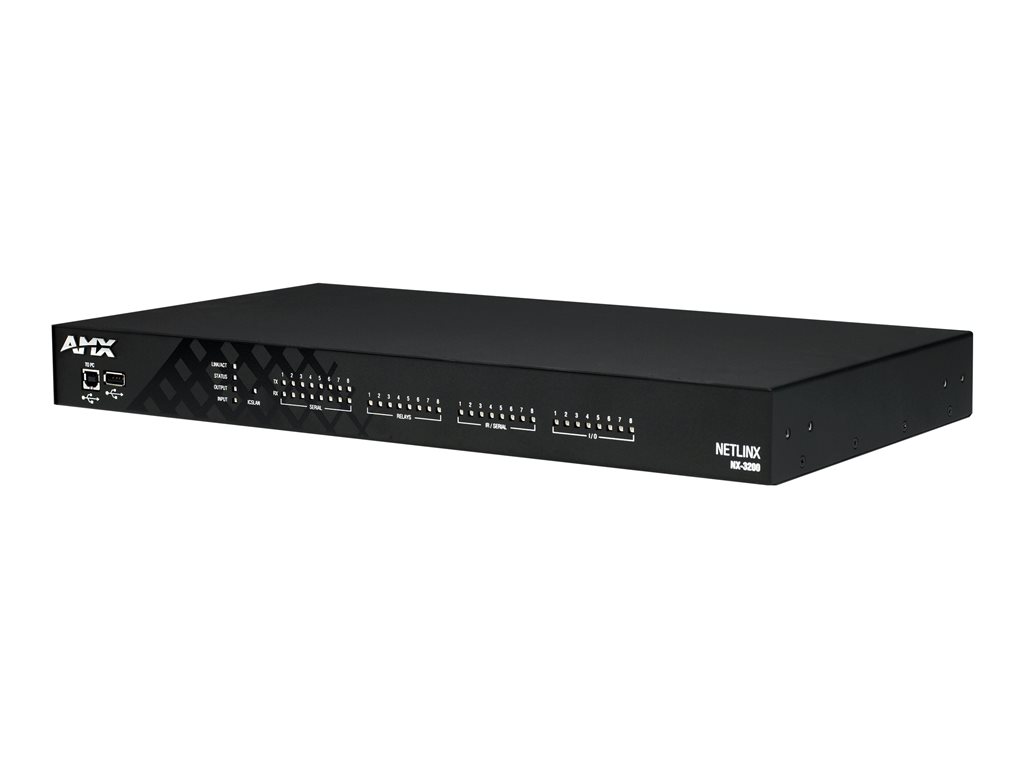

| Product Description | AMX NetLinx NX Integrated Controller NX-3200 - network management device |
| Device Type | Network management device |
| Form Factor | External - 1U |
| Processor | MIPS |
| RAM | 512 MB |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Included Accessories | 8 GB SDHC card |
| Dimensions (WxDxH) | 17 in x 9.1 in x 1.8 in |
| Weight | 6.08 lbs |
| General | |
| Device Type | Network management device |
| Height (Rack Units) | 1U |
| Built-in Devices | LED panel |
| Width | 17 in |
| Depth | 9.1 in |
| Height | 1.8 in |
| Weight | 6.08 lbs |
| Enclosure Color | Matte black |
| Expansion / Connectivity | |
| Interfaces | 2 x RS-232/422/485 - terminal block (screw) ¦ 6 x RS-232 - terminal block (screw) ¦ 2 x 100Base-TX - RJ-45 ¦ 8 x RS-232/IrDA - terminal block (screw) ¦ 4 x peripheral - terminal block (screw) ¦ 1 x management (USB) - Type B ¦ 2 x USB - Type A |
| Miscellaneous | |
| Included Accessories | 8 GB SDHC card |
| Cables Included | 14 x network connector |
| Compliant Standards | VCCI, C-Tick, EN55022, EN55024, CISPR 22, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Network / Transport Protocol | TCP/IP, FTP |
| Remote Management Protocol | Telnet, HTTP, HTTPS, SSH |
| Status Indicators | Port transmission speed, status, link/activity, input, output |
| Features | LDAP support, auto-uplink (auto MDI/MDI-X), Syslog support, IPv6 support, firmware upgradable, IPv4 support |
| Encryption Algorithm | TLS, FIPS 140-2 |
| Authentication Method | Secure Shell (SSH), X.509 certificates |
| Compliant Standards | IEEE 802.1x, X.509 |
| Power | |
| Power Consumption Operational | 6.6 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 85% |
| Processor / Memory / Storage | |
| Processors Installed | MIPS |
| RAM | 512 MB |
