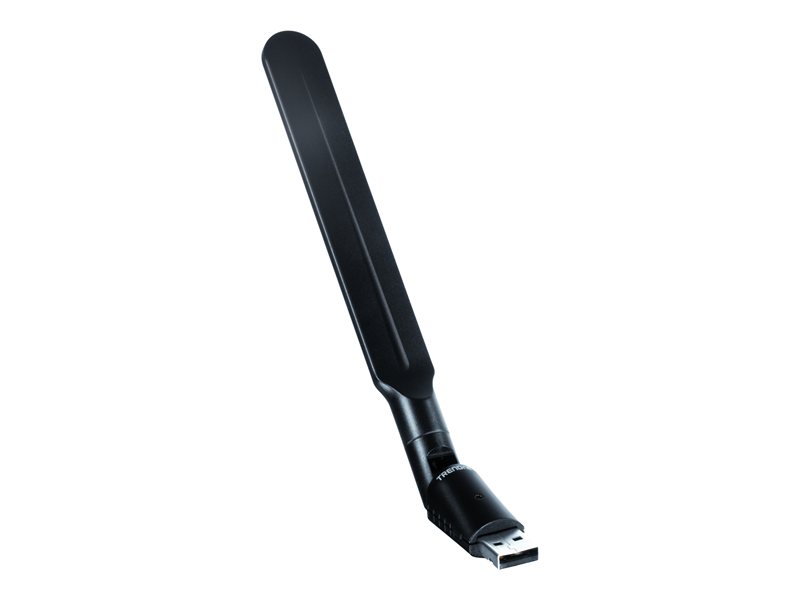

Network adapter - USB 2.0 - 802.11a, 802.11b/g/n, Wi-Fi 5
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TEW-806UBH - network adapter - USB 2.0 |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 |
| Dimensions (WxDxH) | 7.4 in x 0.7 in x 0.7 in |
| Weight | 0.6 oz |
| Data Link Protocol | 802.11a, 802.11b/g/n, Wi-Fi 5 |
| Data Transfer Rate | 433 Mbps |
| Frequency Band | 2.4 GHz, 5 GHz |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, USB 1.1, USB 2.0, IEEE 802.11n, IEEE 802.11ac (draft 2.0) |
| System Requirements | Microsoft Windows XP, Apple MacOS X 10.6 - 10.9, Microsoft Windows Vista / 7 / 8 / 8.1 |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Encryption Algorithm | AES, TKIP, WPA, WPA2, WPA-PSK, WPA2-PSK |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac (draft 2.0) |
| Data Transfer Rate | 433 Mbps |
| Frequency Band | 2.4 GHz, 5 GHz |
| Status Indicators | Link/activity |
| Features | WPS |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, USB 1.1, USB 2.0, IEEE 802.11n, IEEE 802.11ac (draft 2.0) |
| Software / System Requirements | |
| OS Required | Microsoft Windows XP, Apple MacOS X 10.6 - 10.9, Microsoft Windows Vista / 7 / 8 / 8.1 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 7.4 in |
| Depth | 0.7 in |
| Height | 0.7 in |
| Weight | 0.6 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 1 |
| Gain Level | 5 dBi |
