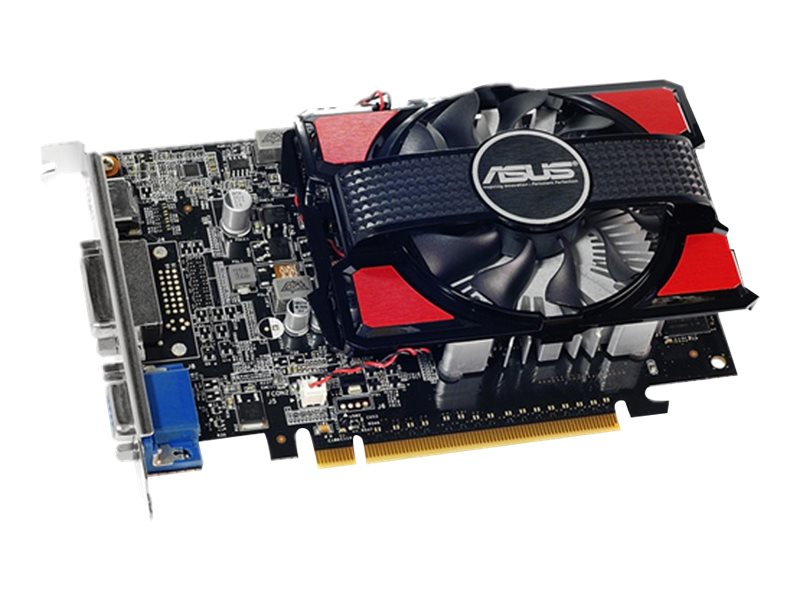

Graphics card - GF GT 740 - 2 GB DDR3 - PCIe 3.0 x16 - DVI, D-Sub, HDMI
| Main Specifications | |
|---|---|
| Product Description | ASUS GT740-2GD3-CSM - graphics card - GF GT 740 - 2 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA GeForce GT 740 |
| Memory | 2 GB DDR3 |
| Core Clock | 993 MHz |
| CUDA Cores | 384 |
| Effective Memory Clock | 1.782 GHz |
| Memory Interface | 128-bit |
| Max Resolution | 2560 x 1600 |
| Max Resolution Details | DVI: 2560 x 1600 / VGA: 2048 x 1536 |
| Interfaces Details | DVI-D ¦ VGA ¦ HDMI |
| API Supported | DirectX 11.1, OpenGL 4.4 |
| Dimensions (WxDxH) | 1.3 in x 7 in x 4.4 in |
| Microsoft Certification | Compatible with Windows 7 |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA GeForce GT 740 |
| Core Clock | 993 MHz |
| CUDA Cores | 384 |
| Max Resolution | 2560 x 1600 |
| Max Resolution Details | DVI: 2560 x 1600 / VGA: 2048 x 1536 |
| Interfaces Details | DVI-D ¦ VGA ¦ HDMI |
| API Supported | DirectX 11.1, OpenGL 4.4 |
| Features | Nvidia CUDA technology, Nvidia PhysX-Ready, Super Alloy Power technology, Dust-proof fan, GPU Tweak Streaming, HDCP |
| Memory | |
| Size | 2 GB |
| Technology | DDR3 SDRAM |
| Effective Clock Speed | 1.782 GHz |
| Bus Width | 128-bit |
| Miscellaneous | |
| Software Included | Drivers & Utilities, ASUS GPU Tweak |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Width | 1.3 in |
| Depth | 7 in |
| Height | 4.4 in |
