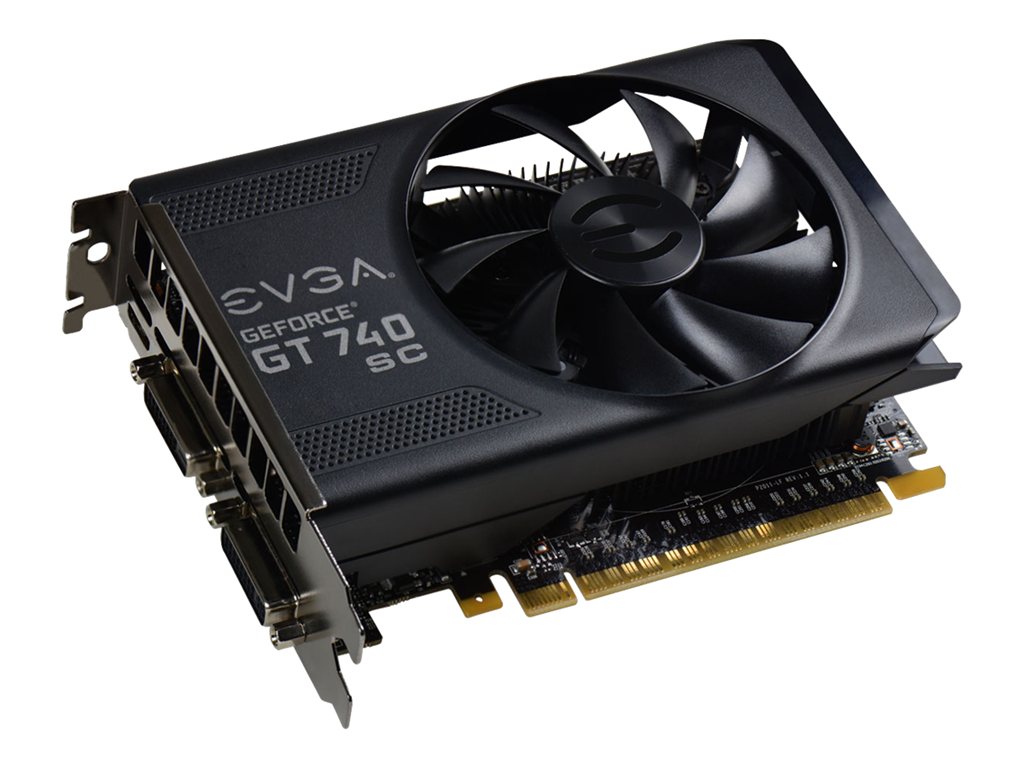

Graphics card - GF GT 740 - 4 GB GDDR5 - PCIe 3.0 x16 - 2 x DVI, HDMI
| Main Specifications | |
|---|---|
| Product Description | EVGA GeForce GT 740 SuperClocked - graphics card - GF GT 740 - 4 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA GeForce GT 740 |
| Memory | 4 GB GDDR5 |
| Core Clock | 1085 MHz |
| CUDA Cores | 384 |
| Effective Memory Clock | 5 GHz |
| Memory Interface | 128-bit |
| Max Resolution | 4096 x 2160 |
| Interfaces Details | DVI-I ¦ DVI-D ¦ Mini-HDMI ¦ VGA - with adapter |
| API Supported | OpenCL, OpenGL 4.4, DirectX 12 |
| Dimensions (WxDxH) | 6 in x 4.4 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA GeForce GT 740 |
| Core Clock | 1085 MHz |
| CUDA Cores | 384 |
| Max Resolution | 4096 x 2160 |
| Interfaces Details | DVI-I ¦ DVI-D ¦ Mini-HDMI ¦ VGA - with adapter |
| API Supported | OpenCL, OpenGL 4.4, DirectX 12 |
| Features | Nvidia CUDA technology, Nvidia PureVideo HD technology, Nvidia PhysX-Ready, Nvidia 3D Vision technology, Nvidia Surround technology, x.v.Color technology, Deep Color technology, Blu-Ray 3D Support, TXAA, NVIDIA Adaptive Vertical Sync, Nvidia Fast Approximate Antialiasing Technology (FXAA), Nvidia SMX Engine |
| Memory | |
| Size | 4 GB |
| Technology | GDDR5 SDRAM |
| Effective Clock Speed | 5 GHz |
| Bus Width | 128-bit |
| Bandwidth | 80 GBps |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Power Consumption Operational | 64 Watt |
| Included Accessories | 6-pin PCIe to Molex power adapter |
| Cables Included | 1 x DVI-VGA adapter |
| Software Included | Drivers & Utilities, EVGA Precision X, EVGA OC Scanner X, GeForce Experience |
| Depth | 6 in |
| Height | 4.4 in |
| System Requirements | |
| OS Required | Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Windows 8 (32/64 bits) |
| Required Power Supply | 400 W |
