Power supply (internal) - ATX12V / EPS12V - 80 PLUS Gold - AC 100-240 V - 750 Watt
| Main Specifications | |
|---|---|

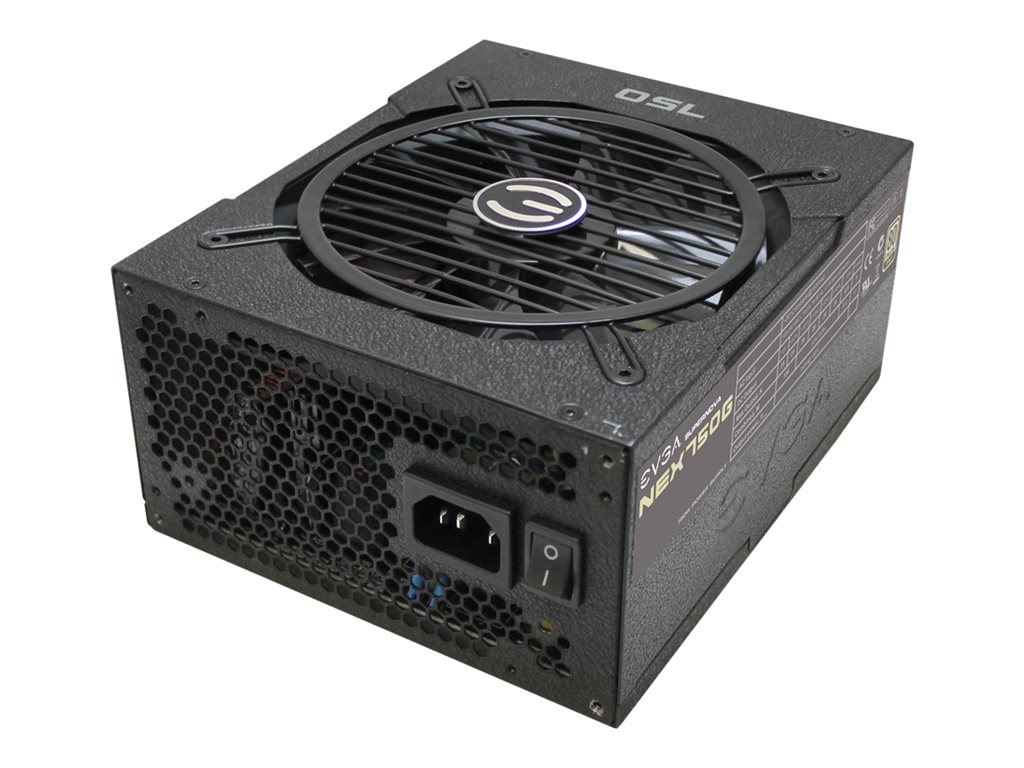

| Product Description | EVGA SuperNOVA 750 G1 - power supply - 750 Watt |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V / EPS12V |
| 80 PLUS Certification | 80 PLUS Gold |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 20 A ¦ +12V2 - 20 A ¦ +12V3 - 20 A ¦ +12V4 - 20 A ¦ +5VSB - 3 A ¦ -12V - 0.8 A |
| Input Connectors | Power IEC 60320 C14 |
| Output connectors | 1 x power 24 pin ATX ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 9 x 15 pin Serial ATA power ¦ 6 x 4 pin internal power ¦ 1 x 4 pin mini-power connector |
| Modular Cable Management | Yes |
| Manufacturer Warranty | 10-year warranty |
| General | |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Cables Included | Power cable - external - 6 ft |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power IEC 60320 C14 |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 9 x 15 pin Serial ATA power ¦ 6 x 4 pin internal power ¦ 1 x 4 pin mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 20 A ¦ +12V2 - 20 A ¦ +12V3 - 20 A ¦ +12V4 - 20 A ¦ +5VSB - 3 A ¦ -12V - 0.8 A |
| Efficiency | 90% (115VAC) / 92% (220-240VAC) |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
