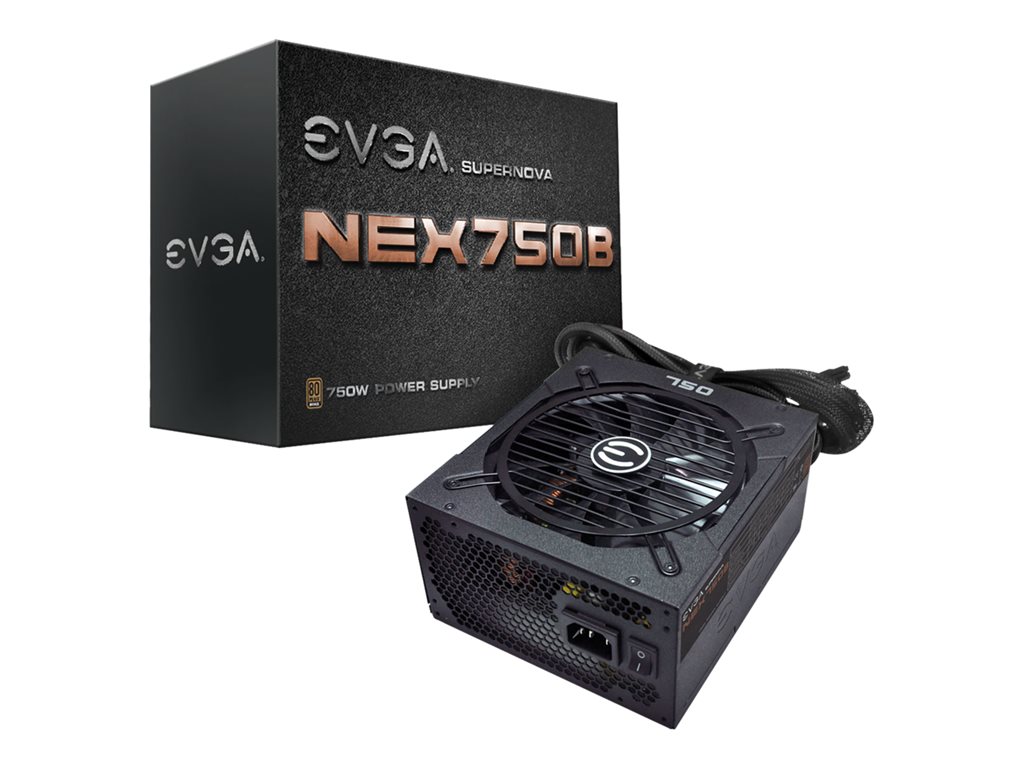

Power supply (internal) - 80 PLUS Bronze - AC 100-240 V - 750 Watt
| Main Specifications | |
|---|---|
| Product Description | EVGA SuperNOVA 750 B1 - power supply - 750 Watt |
| Device Type | Power supply - internal |
| 80 PLUS Certification | 80 PLUS Bronze |
| Weight | 8 lbs |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 20 A ¦ +12V2 - 20 A ¦ +12V3 - 20 A ¦ +12V4 - 20 A ¦ +5VSB - 3 A ¦ -12V - 0.8 A |
| Output connectors | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 9 x 15 pin Serial ATA power ¦ 5 x 4 pin internal power ¦ 1 x 4 pin mini-power connector |
| Dimensions (WxDxH) | 5.9 in x 6.5 in x 3.3 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Power supply - internal |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | Power cable - external - 6 ft ¦ 3 x PCI Express power cable - external - 2 ft ¦ 3 x Serial ATA cable - external - 1.8 ft ¦ 2 x Serial ATA cable - external - 2 ft ¦ Serial ATA cable - external - 2.5 ft |
| MTBF | 100,000 hour(s) |
| Features | Dual ball bearing cooling fan, Intel 4th-gen CPU (Haswell) compatible |
| Compliant Standards | UL, TUV, BSMI, cUL, CB, CCC, FCC, RoHS, WEEE, cTUVus, RCM |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 9 x 15 pin Serial ATA power ¦ 5 x 4 pin internal power ¦ 1 x 4 pin mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 20 A ¦ +12V2 - 20 A ¦ +12V3 - 20 A ¦ +12V4 - 20 A ¦ +5VSB - 3 A ¦ -12V - 0.8 A |
| 80 PLUS Certification | 80 PLUS Bronze |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 6.5 in |
| Height | 3.3 in |
| Weight | 8 lbs |
