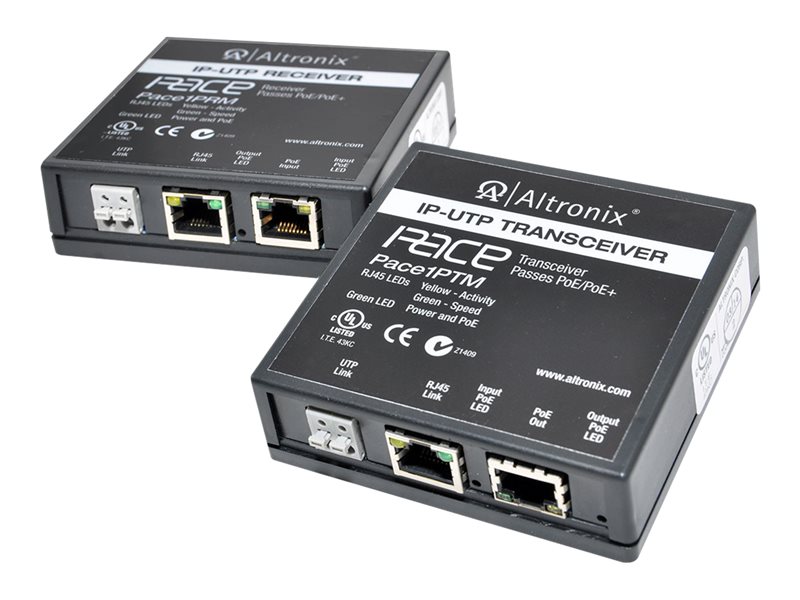

Transmitter and receiver - network/power extender - 100Mb LAN - 10Base-T, 100Base-TX - up to 1640 ft
| Main Specifications | |
|---|---|
| Product Description | Altronix PACE1PRMT - transmitter and receiver - network/power extender - 10Mb LAN, 100Mb LAN |
| Device Type | Network/power extender |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Transfer Rate | 100 Mbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Max Transfer Distance | 1640 ft |
| Power Over Ethernet (PoE) | PoE+ |
| Dimensions (WxDxH) | 3.5 in x 3.5 in x 1 in |
| Weight | 6.35 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Network/power extender |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x network (PoE input) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | Plug and Play, UL, UL 60950-1 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Max Transfer Distance | 1640 ft |
| Status Indicators | PoE, link/activity |
| Features | Half duplex mode, full duplex mode, auto-negotiation |
| Compliant Standards | IEEE 802.3at, IEEE 802.3af |
| Power | |
| Power Over Ethernet (PoE) | PoE+ |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 120.2 °F |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.5 in |
| Depth | 3.5 in |
| Height | 1 in |
| Weight | 6.35 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 15.87 oz |
