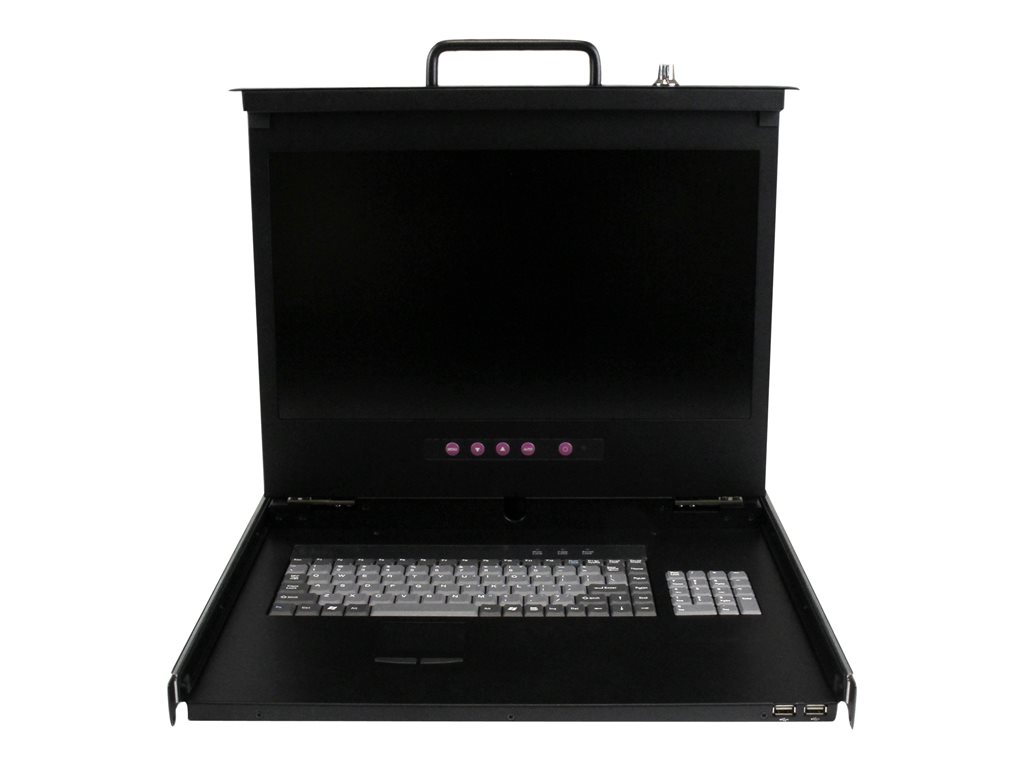

LCD Rack Console - Rack mount LCD Console - 1080p KVM Console - KVM console - PS/2, USB - 17" - rack-mountable - 1920 x 1080 Full HD (1080p) - 300 cd/m² - 650:1 - 2 ms - DVI-I, VGA - black - 1U - for P/N: RK1233BKM, RK2433BKM, RK2537BKM, RK4236BKB, RK4242BK24, RK4242BK30, RKQMCAB12V2
| Main Specifications | |
|---|---|
| Product Description | StarTech 1U 17" HD 1080p Rackmount LCD Console with Front USB Hub - LCD Rack Console - Rack mount LCD Console - 1080p KVM Console - KVM console - Full HD (1080p) - 17" |
| Device Type | KVM console - 17" |
| KVM Switch | PS/2, USB |
| Features | Keyboard, touchpad |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 |
| Pixel Pitch | 0.264 mm |
| Brightness | 300 cd/m² |
| Contrast Ratio | 650:1 |
| Color Support | 16.7 million colors |
| Input Connectors | DVI-I, VGA |
| Voltage | AC 120/230 V |
| Color | Black |
| Dimensions (WxDxH) | 17.6 in x 18.1 in x 1.7 in |
| Height (Rack Units) | 1U |
| Weight | 28.66 lbs |
| Compliant Standards | FCC, RoHS |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: 4POSTRACK12, 4POSTRACK12A, 4POSTRACK12U, 4POSTRACK25, 4POSTRACK25U, 4POSTRACK36, 4POSTRACK42, 4POSTRACKHD, RK1233BKM, RK1236BKF, RK1833BKM, RK2236BKF, RK2433BKM, RK2536BKF, RK2537BKM, RK4236BK, RK4236BKB, RK4242BK, RK4242BK24, RK4242BK30, RK960CP, RKQMCAB12, RKQMCAB12V2, RKWOODCAB12, SVA12M5NA |
| General | |
| Display Type | KVM console / TFT active matrix |
| Diagonal Size | 17" |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 |
| Pixel Pitch | 0.264 mm |
| Brightness | 300 cd/m² |
| Contrast Ratio | 650:1 |
| Color Support | 16.7 million colors |
| Horizontal Viewing Angle | 140 |
| Vertical Viewing Angle | 120 |
| Backlight Technology | LED backlight |
| Color | Black |
| Dimensions (WxDxH) | 17.6 in x 18.1 in x 1.7 in |
| Height (Rack Units) | 1U |
| Weight | 28.66 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | Key lock |

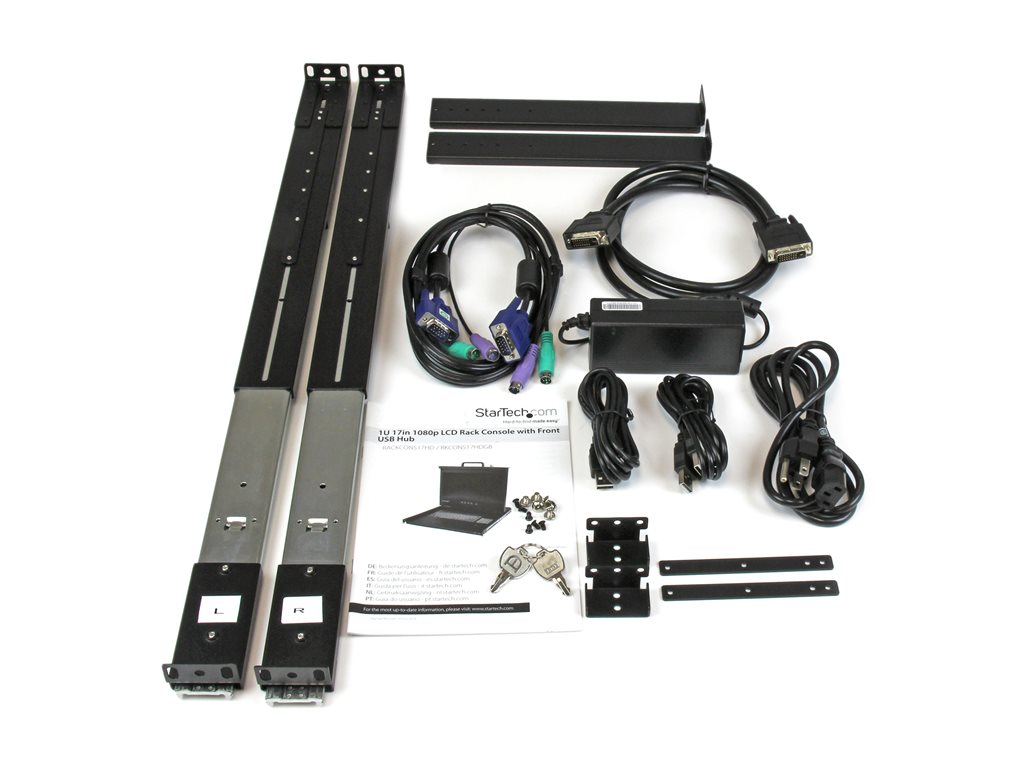

| Cables Included | 1 x USB cable - 6 ft ¦ 1 x keyboard / mouse / video cable - 6 ft |
| Rack Mounting Kit | Included |
| MTBF | 50,000 hour(s) |
| Compliant Standards | FCC, RoHS |
| Power | |
| Power Supply | External |
| Input Voltage | AC 120/230 V |
| Power Consumption (Typical) | 23.35 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% |
| Connectivity | |
| Interfaces | 2 x USB 2.0 (Type A) ¦ Keyboard (PS/2) ¦ Mouse (PS/2) ¦ Keyboard (USB) ¦ Mouse (USB) ¦ DVI-I ¦ VGA (HD-15) |
| KVM | |
| Keyboard / Mouse Interface | PS/2, USB |
| Max Resolution | 1920 x 1080 / 1080p |
| Compatibility Information | |
| Designed For | P/N: 2636CABINET, 4POSTRACK12, 4POSTRACK12A, 4POSTRACK12U, 4POSTRACK25, 4POSTRACK25U, 4POSTRACK36, 4POSTRACK42, 4POSTRACKBK, 4POSTRACKHD, 7236CABINET, RK1233BKM, RK1236BKF, RK1833BKM, RK2236BKF, RK2433BKM, RK2536BKF, RK2537BKM, RK4236BK, RK4236BKB, RK4242BK, RK4242BK24, RK4242BK30, RK960CP, RKQMCAB12, RKQMCAB12V2, RKWOODCAB12, SVA12M5NA |
| Input | |
| Type | Keyboard, touchpad |
