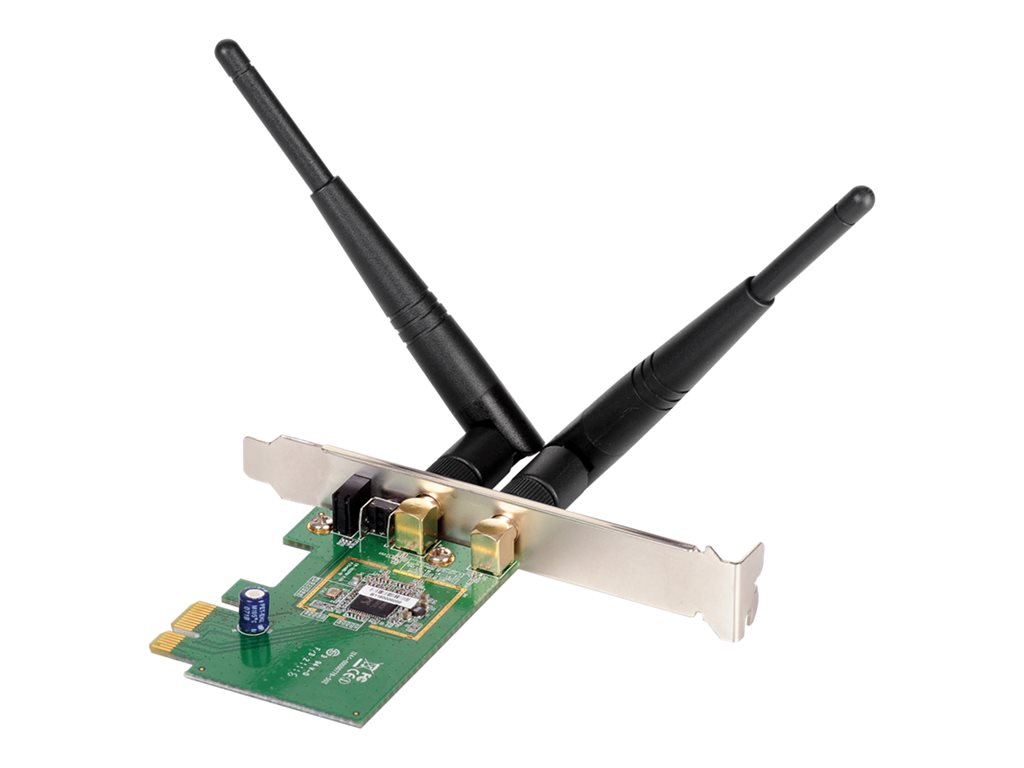

Network adapter - PCIe - 802.11b/g/n
| Main Specifications | |
|---|---|
| Product Description | Edimax EW-7612PIn V2 - network adapter - PCIe |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express |
| Dimensions (WxDxH) | 4.8 in x 3.5 in x 0.9 in |
| Data Link Protocol | 802.11b/g/n |
| Data Transfer Rate | 300 Mbps |
| Frequency Band | 2.4 GHz |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, Wi-Fi Protected Setup |
| System Requirements | Microsoft Windows Vista / XP / 7 / 8 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express |
| Expansion / Connectivity | |
| Interfaces | 2 x antenna - RP-SMA |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA, WPA2 |
| Compliant Standards | FCC |
| Networking | |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Data Transfer Rate | 300 Mbps |
| Frequency Band | 2.4 GHz |
| Status Indicators | Transmit, receive, link/activity |
| Features | WPS, 802.1x authentication |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, Wi-Fi Protected Setup |
| Software / System Requirements | |
| Software Included | EZmax Setup Wizard |
| OS Required | Microsoft Windows Vista / XP / 7 / 8 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.8 in |
| Depth | 3.5 in |
| Height | 0.9 in |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Gain Level | 3 dBi |
