Motherboard - UCFF - Intel Atom E3815 - USB 3.0 - Gigabit LAN - onboard graphics - HD Audio
| Main Specifications | |
|---|---|

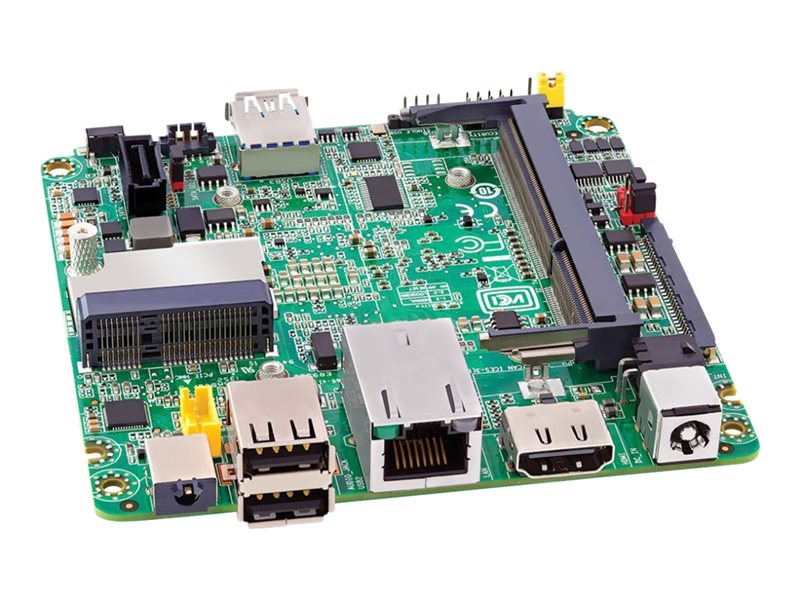

| Product Description | Intel Next Unit of Computing Board DE3815TYBE - motherboard - UCFF - Intel Atom E3815 |
| Product Type | Motherboard - UCFF |
| Processor | Intel Atom E3815 / 1.46 GHz |
| RAM Installed | 0 GB |
| Max RAM Size | 8 GB |
| RAM Supported | 1 SO-DIMM slot - DDR3L |
| Storage Ports | 1 x SATA-300 |
| USB / FireWire Ports | 1 x USB 3.0 + 2 x USB 2.0 + (3 x USB 2.0 via headers) |
| Graphics | Intel HD Graphics |
| Audio | HD Audio |
| LAN | Gigabit Ethernet |
| Microsoft Certification | Compatible with Windows 7 |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Motherboard - UCFF |
| Processor | Intel Atom E3815 / 1.46 GHz |
| RAM Installed | 0 GB |
| Expansion / Connectivity | |
| Expansion Slots | 1 x SO-DIMM 204-pin (1.35 V) ¦ 1 x PCIe Mini Card (half-length) |
| Storage Interfaces | SATA-300 -connectors: 1 x 7pin Serial ATA - 1 devices |
| Interfaces | 1 x USB 3.0 ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x audio line-out/microphone |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x VGA - header ¦ 1 x speaker - header ¦ 1 x Embedded DisplayPort (eDP) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Package Type | Bulk |
| Audio | |
| Type | HD Audio |
| Features | |
| BIOS Type | Intel |
| BIOS Features | ACPI 3.0b support, SMBIOS 2.5 support, Intel Visual BIOS |
| Hardware Features | WatchDog Timer, Trusted Platform Module (TPM) 1.2 |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Graphics | |
| Graphics Controller | Intel HD Graphics |
| Supported RAM | |
| Max Size | 8 GB |
| Technology | DDR3L |
| Bus Clock | 1600 MHz, 1333 MHz |
