Barebone - mini PC Mobile Intel HM87 Express - 1 x Core i5 4570R / up to 3.2 GHz - RAM 0 GB - Iris Pro Graphics 5200 - Gigabit Ethernet
| Main Specifications | |
|---|---|
| Product Description | ZOTAC ZBOX E Series EI730 - mini PC Core i5 4570R 2.7 GHz - 0 GB - no HDD |
| Type | PC barebone - mini PC |
| Localization | Region: United States |
| Processor | 1 x Intel Core i5 (4th Gen) 4570R / 2.7 GHz (up to 3.2 GHz, (Quad-Core) |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Cache Memory | 4 MB L2 cache |
| Cache Per Processor | 4 MB |
| RAM | 0 GB (installed) / 16 GB (max) - DDR3L SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Card Reader | 4 in 1 |
| Graphics Controller | Intel Iris Pro Graphics 5200 |
| Audio Output | Stereo - integrated |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Bluetooth 4.0, Wi-Fi 5 |
| OS Provided | No operating system |
| Software Included | Drivers & Utilities |
| Dimensions (WxDxH) | 7.4 in x 2 in x 7.4 in |
| General | |
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Built-in Devices | Infrared receiver |
| Localization | Region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 2 (total) / 2 (free) x SO-DIMM 204-pin |
| Interfaces | 1 x DVI ¦ 2 x DisplayPort ¦ 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.0 (1 front, 2 rear, 1 top) ¦ 1 x microphone ¦ 1 x headphones ¦ 1 x HDMI (with adapter) |
| Miscellaneous | |

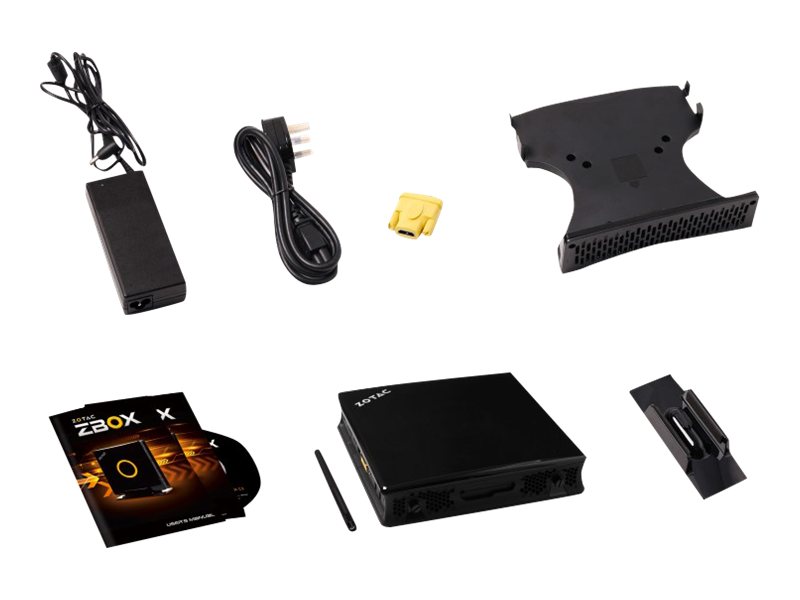

| Included Accessories | Vertical stand, wireless antenna, VESA mounting kit |
| Cables Included | HDMI-DVI adapter |
| RAM | |
| Installed Size | 0 GB (installed) / 16 GB (max) |
| Technology | DDR3L SDRAM |
| Form Factor | SO-DIMM 204-pin |
| Slots | 2 (total) / 2 (empty) |
| Networking | |
| Type | Integrated |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
| Power | |
| Device Type | Power adapter |
| Storage Controller | |
| Type | SATA - integrated |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | L2 cache - 4 MB |
| Cache Per Processor | 4 MB |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | Intel Iris Pro Graphics 5200 |
| Video Interfaces | DVI, DisplayPort |
| HDCP Compatible | Yes |
| Audio Output | |
| Type | Integrated |
| Sound Output Mode | Stereo |
| Compliant Standards | DirectX |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | Drivers & Utilities |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 7.4 in |
| Depth | 2 in |
| Height | 7.4 in |
| Card Reader | |
| Type | 4 in 1 card reader |
| Supported Flash Memory Cards | MultiMediaCard, SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Processor / Chipset | |
| CPU | Intel Core i5 (4th Gen) 4570R |
| Clock Speed | 2.7 GHz |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Chipset Type | Mobile Intel HM87 Express |
