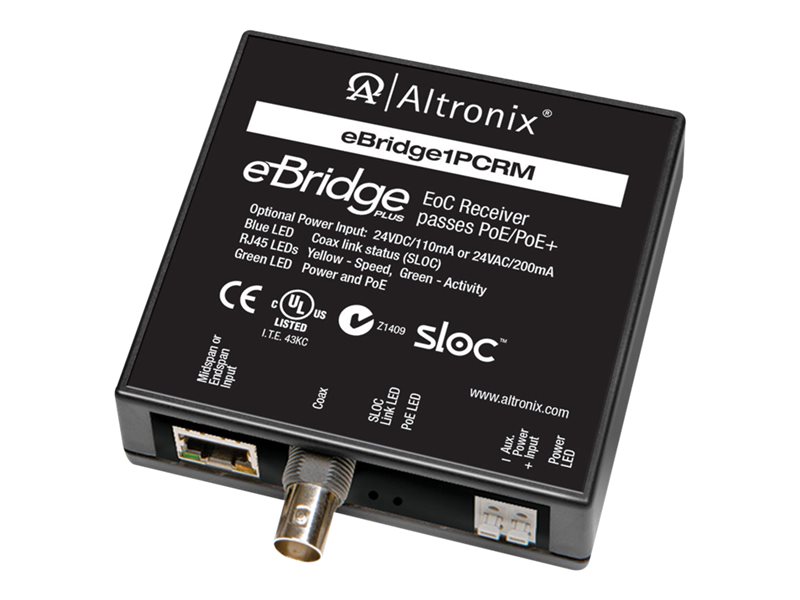

Video/power extender - 100Mb LAN - 10Base-T, 100Base-TX - up to 1640 ft
| Main Specifications | |
|---|---|
| Product Description | Altronix eBridge 1PCRM - video/power extender - 10Mb LAN, 100Mb LAN |
| Device Type | Video/power extender |
| Form Factor | External |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Max Transfer Distance | 1640 ft |
| Power Over Ethernet (PoE) | PoE+ |
| Dimensions (WxDxH) | 3.5 in x 1 in x 4.4 in |
| Weight | 5.29 oz |
| General | |
| Device Type | Video/power extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX (PoE+) - RJ-45 - 30 W ¦ 1 x video - BNC |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Max Transfer Distance | 1640 ft |
| Status Indicators | Power, active, status, PoE, link |
| Features | Auto-negotiation, half duplex mode, full duplex mode |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Power | |
| Power Over Ethernet (PoE) | PoE+ |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 120.2 °F |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.5 in |
| Depth | 1 in |
| Height | 4.4 in |
| Weight | 5.29 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 7.76 oz |
