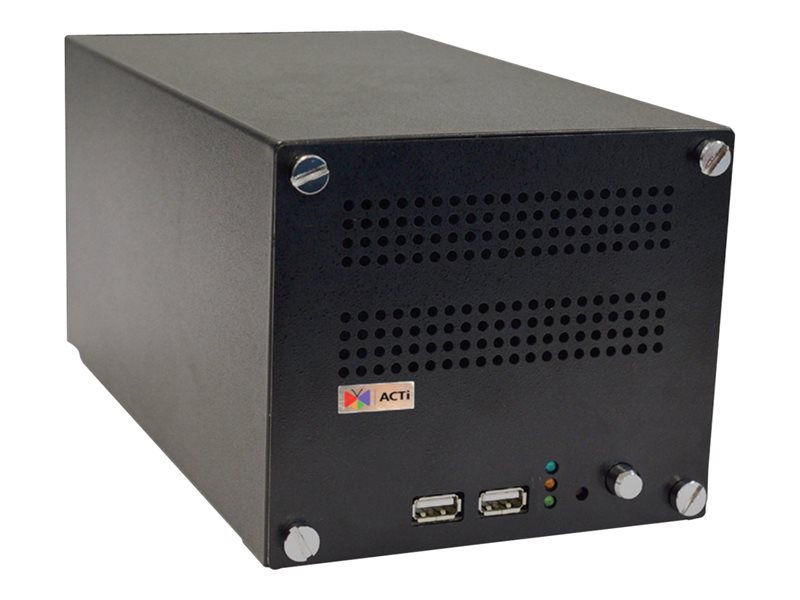

Standalone DVR - 4 channels - networked
| Main Specifications | |
|---|---|
| Product Description | ACTi ENR-1000 - standalone DVR - 4 channels |
| Device Type | Standalone DVR - 4 channels - networked |
| Frame Rate | 120 fps |
| Compression Format | AVI, H.264, G.711, PCM |
| Hard Drive(s) Supported | Quantity: 2 - total capacity: 8 TB |
| Voltage | 120 / 230 V |
| Dimensions (WxDxH) | 5.3 in x 9.9 in x 4.8 in |
| Weight | 2.93 lbs |
| General | |
| Device Type | Standalone DVR |
| Video Channels | 4 |
| Compression Format | AVI, H.264, G.711, PCM |
| Package Content | DVR, mouse, external power adapter |
| OS Provided | Linux |
| Compliant Standards | EN55022 Class B, EN55024, FCC Part 15 B, PSE Mark, UL, FCC |
| Networking | |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Features | ONVIF support |
| Power | |
| Voltage | 120 / 230 V |
| Power Consumption | 50 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% |
| Hard Drive | |
| Quantity Supported | 2 |
| Interface | Serial ATA |
| Supported Max Total Capacity | 8 TB |
| Connections | |
| Video Output Ports | HDMI x 1 |
| Network Port | 10/100/1000Base-T x 2 |
| Other Ports | USB 2.0 x 2 |
| Dimensions & Weight | |
| Width | 5.3 in |
| Depth | 9.9 in |
| Height | 4.8 in |
| Weight | 2.93 lbs |
| Security DVR | |
| Frame Rate (Record) | 120 fps |
| Record Events | Alarm, event |
| Networked | Yes |
| Features | Pan/Tilt/Zoom support |
| Video Server | |
| Features | ONVIF compliant, Pan/Tilt/Zoom support |
