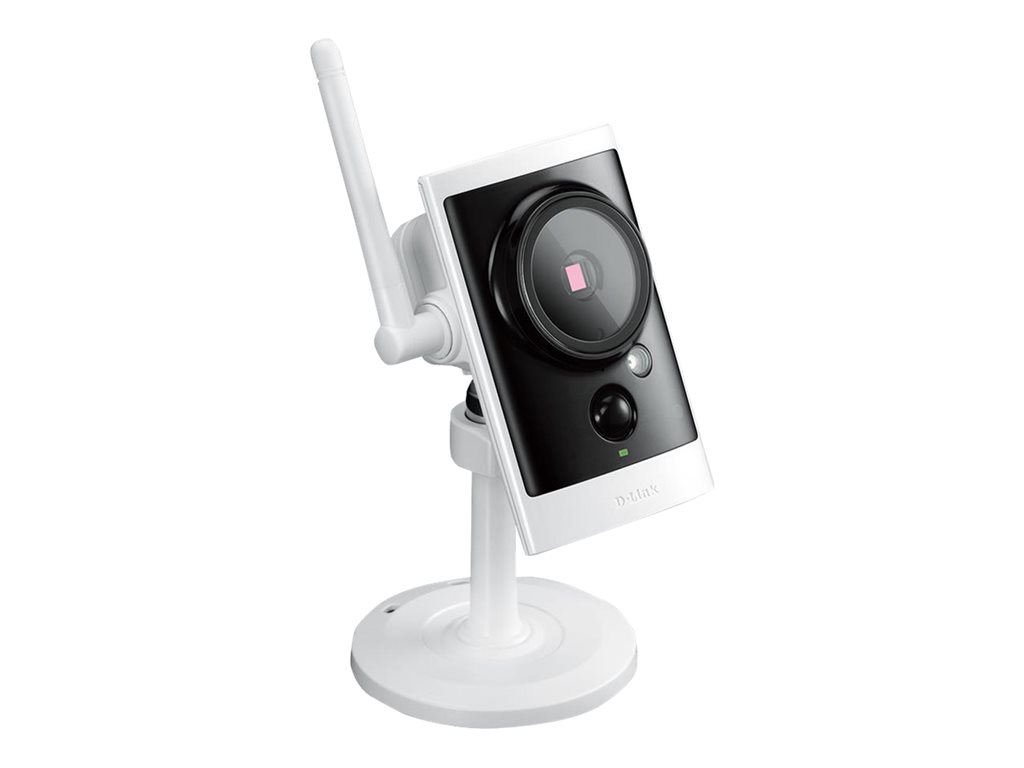

Network surveillance camera - outdoor - weatherproof - color (Day&Night) - 1280 x 720 - audio - wireless - Wi-Fi - LAN 10/100 - MJPEG, H.264 - DC 5 V
| Main Specifications | |
|---|---|
| Product Description | D-Link DCS-2330L - network surveillance camera |
| Device Type | Network surveillance camera - fixed - outdoor - weatherproof |
| Audio | Yes: built-in microphone |
| Weight | 8.99 oz |
| Connectivity Technology | Wired, wireless |
| Camera | Color - Day&Night |
| Max Resolution | 1280 x 720 |
| Optical Sensor Type | CMOS - 1/4" |
| Minimum Illumination | 0 lux - IR |
| Focal Length | 3.45 mm |
| Lens Iris | F/2.0 |
| Interfaces | Ethernet 10Base-T/100Base-TX, IEEE 802.11n |
| Platform | MyDlink Home |
| Voltage | DC 5 V |
| Features | Sharpness control, saturation control, brightness control, contrast control, infrared cut filter, Privacy Mask Function, microSDHC card slot, Wi-Fi Protected Setup (WPS) |
| Manufacturer Warranty | 1-year warranty |
| Environmental Parameters (operating) | -13 °F - 113 °F; 20 - 80% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone |
| Connectivity Technology | Wired, wireless |
| Weight | 8.99 oz |
| Expansion / Connectivity | |
| Interfaces Details | 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Stand |
| Compliant Standards | C-Tick, FCC, IP65 |
| Power | |
| Power Requirements | DC 5 V |
| Power Device | Power adapter - external AC 120/230 V (50/60 Hz) 5 Watt |
| Software / System Requirements | |
| OS Required | Apple MacOS X 10.5 or later, Microsoft Windows XP SP3, Microsoft Windows Vista / 7, Windows 8 |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 113 °F |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - weatherproof |
| Digital Video Format | MJPEG, H.264 |
| Max Digital Video Resolution | 1280 x 720 |
| Digital Zoom | 10 |
| Minimum Illumination | 0 lux - IR |
| Supported Image Formats | JPEG |
| Features | Sharpness control, saturation control, brightness control, contrast control, infrared cut filter, Privacy Mask Function, microSDHC card slot, Wi-Fi Protected Setup (WPS) |
| Lens Construction | |
| Focal Length | 3.45 mm |
| Lens Iris | F/2.0 |
| Horizontal Field of View (degree) | 57.8 |
| Vertical Field of View (degree) | 37.8 |
| Image Sensor | |
| Type | CMOS 1/4" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX, IEEE 802.11n |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, PPPoE, Samba, QOS, CoS |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Hub | Not needed |
| Platform | MyDlink Home |
| Communications Technology | Wi-Fi |
