Conference camera - PTZ - color - 1920 x 1080 - audio - HDMI - LAN 10/100 - DC 12 V
| Main Specifications | |
|---|---|

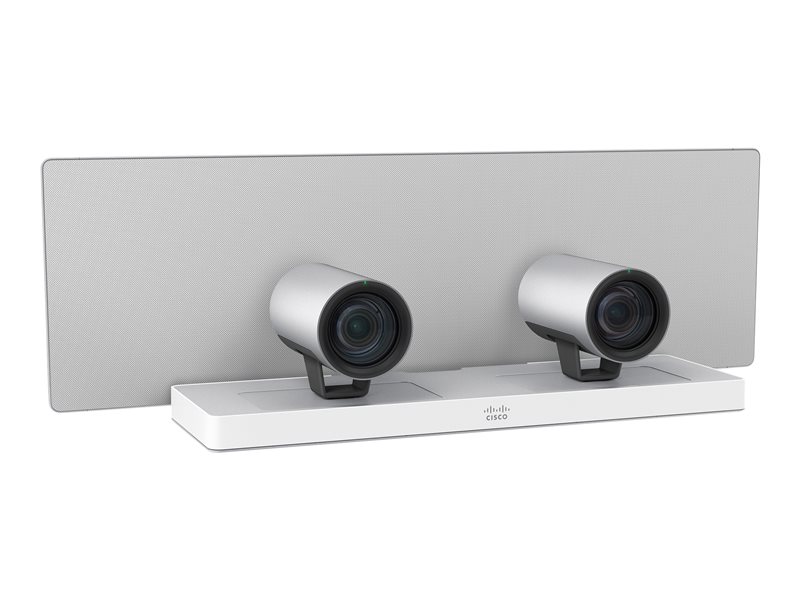

| Product Description | Cisco TelePresence SpeakerTrack 60 - conference camera |
| Device Type | Conference camera - pan / tilt / zoom |
| Audio | Yes |
| Dimensions (WxDxH) | 31.5 in x 8.3 in x 11.5 in |
| Weight | 25.35 lbs |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 10 x |
| Max Resolution | 1920 x 1080 |
| Focus Adjustment | Automatic, manual (min distance 3.3 ft) |
| Lens Iris | F/1.5 |
| Panning Range (degree) | -100 to +100 |
| Tilting Range (degree) | -20 to +20 |
| Interfaces | HDMI, Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V |
| Features | Manual white balance, brightness control, auto white balance |
| Environmental Parameters (operating) | 32 °F - 104 °F; 10 - 90% relative humidity |
| General | |
| Device Type | Conference camera |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Width | 31.5 in |
| Depth | 8.3 in |
| Height | 11.5 in |
| Weight | 25.35 lbs |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 ¦ HDMI |
| Miscellaneous | |
| Included Accessories | Mounting bracket |
| Power | |
| Power Requirements | DC 12 V |
| Power Device | Power adapter - external AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 10 - 90% |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Max Digital Video Resolution | 1920 x 1080 |
| Digital Zoom | 2 |
| Video Capture | 1920 x 1080 @ 60 fps |
| Features | Manual white balance, brightness control, auto white balance |
| Lens Construction | |
| Optical Zoom | 10 x |
| Lens Iris | F/1.5 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 3.3 ft |
| Horizontal Field of View (degree) | 80 |
| Vertical Field of View (degree) | 48.8 |
| Interfaces | |
| Video | HDMI |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, DNS, NTP, TCP/IP |
| Panning | |
| Range (degree) | -100 to +100 |
| Tilting | |
| Range (degree) | -20 to +20 |
